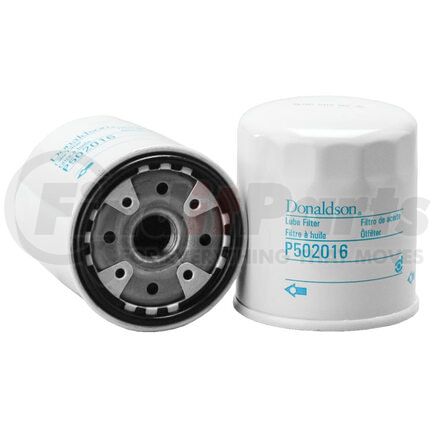

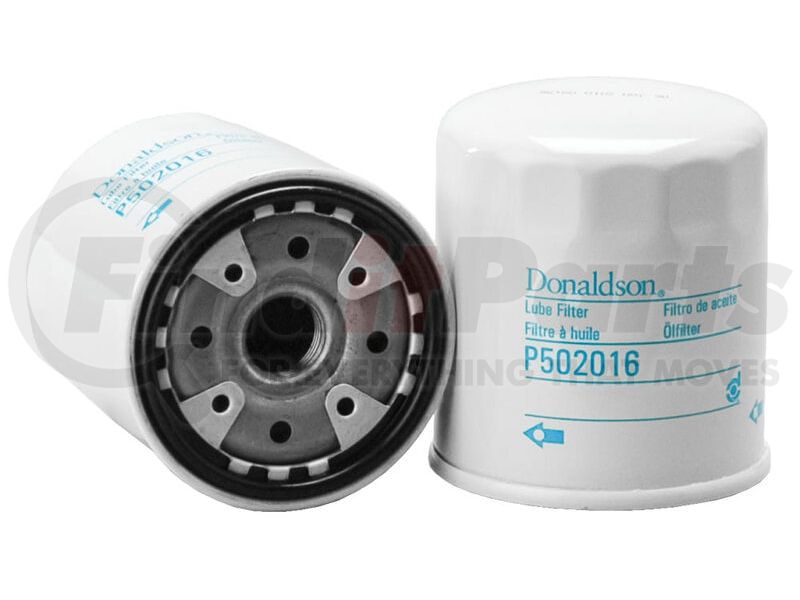

(888) 312-8812 Login SignupDONALDSON P502016 Engine Oil Filter - 3.33 in., Full-Flow Type, Spin-On Style, Cellulose Media Type, with Bypass Valve
MSRP: $11.46
$999
Save $1.47
Limited availability at this price!
In Stock
Get as soon as Tuesday, Sep 22
DONALDSON P502016 Part Description
Manufacturer
Product Description
LUBE FILTER, SPIN-ON FULL FLOW
Features & Benefits
- Filters soot metal particles and other debris from the oil supply
- Full-flow media cleans circulating oil during normal engine operation
- Maintains oil availability when temporary filter restriction becomes excessive
- New media gives new engine oil clean contaminant-holding capacity
Donaldson Engine Oil Filter
An internal bypass valve is the key feature in the Donaldson Engine Oil Filter, providing an alternate oil path when cold lubricant or a heavily loaded element raises restriction. Under normal conditions, the full-flow filter sends oil through cellulose media to capture wear debris before the lubricant reaches engine components. If restriction rises too far, the internal bypass valve provides another route so oil supply is not dependent on pushing through an obstructed element. Fresh media in this Donaldson P502016 filter renews the contamination barrier protecting bearings and other oil-fed surfaces.
DONALDSON P502016 Specifications
Product Attributes
| Anti-drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting Hr | 1.2 BAR |
| Bypass Valve Setting LR | 0.78 BAR |
| Collapse Burst | 6.9 BAR |
| Efficiency 99% | 50 MICRON |
| Efficiency Test Std | JIS D 1611 |
| Gasket Id | 2.48 IN |
| Gasket Od | 2.76 IN |
| Length | 3.33 IN |
| Media Type | Cellulose |
| Outer Diameter | 2.91 IN |
| Style | Spin-On |
| Thread Size | 3/4/16 |
| Type | Full-Flow |
Additional Information
| Country of Origin (Primary) | CO |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00742330109588 |
DONALDSON P502016 Cross References
| Brand | Part Number |
|---|---|
| AC DELCO | PF1212, PF1245, X116, X124 |
| AFE | 44-LF037, 44-LF014, 44-LF014-MB, 44-LF037-MB |
| ALCO | SP951 |
| AMERICAN MOTORS CORPORATION | 144445, 9144445, GB103, J1312011, L3614, LO335, MO3614, MPOF58, OC18100, OF2008, OF58SL, ROF58, SFO0241, SFO241, TO138, VO25, W71180, YC111 |
| AMSOIL | EAO57, SDF84 |
| ASV INCORPORATED | 200377 |
| BALDWIN | BT223 |
| EXXON/MOBIL OIL | M1102, M1102A |
| FLEETGUARD | LF3874 |
| FRAM | PH3614, TG3614, XG3614, M1-102A, M1-102, DL3614 |
| LUBER-FINER | PH2835 |
| MANN-HUMMEL FILTERS | L10241, W811/81, W712/83 |
| MOBIL OIL | M1102A, M1-102 |
| N/A | OF72, LF494, LF525, PH2964, 1150102191, PER268, 51288, 59226, WL7172, 51348XP, MOF129X, B1405, B1430, B159, 4105049, 1651082703, LFR83690, 140516190, 140516990, 578530, 1288, 9226, 41348, 0200377, 200377, X124, PF1212, PF1245, X116, FO1053, 2201523, 5010292, 144445, 9144445, GB103, OF58SL, ROF58, SFO0241, SFO241, TO138, VO25, W71180, YC111, J1312011, L3614, LO335, MO3614, MPOF58, OC18100, OF2008, C11103, C11104, C11106, C11109, C1110, T1641, SO11110, SFO241B, C111, C931, FMS2052, W81884, W71283, W71298, C171, PH2858, 32305674, 93164895, H14W32, H90W20, TY15218, TY5029, 3840525, 892202004, 892202010, 892202011, 9091520003, 9091520005, 9091533021, 90915YZZB9, 90915YZZG1, ADT32108E, ADT32111E, 83417, 1733165, 7020215, 6620136161, OC235, OC988, 140517050, 1220845, 2198280, 115G382241, 4075, 2325300, 092325340, 2321300, 92325340, U3124, CF2951, CF494, 156011301, 1560187104, S3253R, PH241, V241, LF384F, LF494F, SDF84, EAO57, CF2951AP, CF494AP, LF384, S73, GFE285, 25011704, VFL226, PO2821A, PO2951A, PO494, VO48, 72177, 72178, Z1319, Z1015 |
| PUROLATOR | TL10241, TL10241BP, L10241, PBL10241, PL10241 |
| WIX FILTERS | 51348, WIX FILTERS, 51348XP |
DONALDSON P502016 Customer Reviews
No reviews yet
Be the first to review this product!
DONALDSON P502016 Manufacturer Information
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
