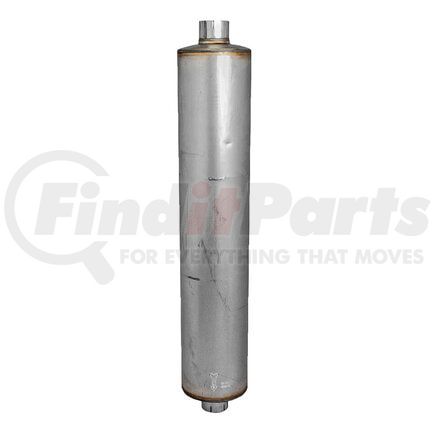

(888) 312-8812 Login SignupDONALDSON M090146 Exhaust Muffler - 51.00 in. Overall length
$66149
3 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
DONALDSON M090146 Part Description
DONALDSON M090146 Specifications
Product Attributes
| Body Length | 44.44 in |
| Overall Length | 51.00 in |
| Attenuation Hr | 25 DBA |
| Attenuation Lr | 18 DBA |
| Back Pressure High-range | 2.99 INHG |
| Back Pressure Low-range | 0.98 INHG |
| Back Pressure Mid-range | 2.01 INHG |
| Body Diameter Maximum | 8.97 IN |
| Inlet Diameter | 3.51 IN |
| Outlet Diameter | 3.51 IN |
| Rated Flow Hr | 2.9 m³/min |
| Rated Flow Lr | 16.4 m³/min |
| Rated Flow Mr | 23.1 m³/min |
| Style | Style 1 |
| Body Length | 44.44 IN |
| Overall Length | 51 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708925000 |
| UPC | 00742330005088 |
DONALDSON M090146 Cross References
| Brand | Part Number |
|---|---|
| A P PARTS | 3679, 3679Q |
| AP EXHAUST PRODUCTS INC | 3679 |
| COMPACTION AMERICA | 846100359 |
| DYNAFLEX | 87350113, 87350113Q, 87350345 |
| EAGLE TRUCK PRODUCTS | E108 |
| N/A | DNM090146, 3679, LL847181, 12A3569, M353590, ZH209, 35304310, 10175624, D3HZ5230D, 1909376, 1909341, 1909351, 57200BX, 57200B, 86113M, 86216M, 87350113, 87350113Q, 87350345, 76420000036, 7642000610, 534948, 9575M090146, D3HA5225AAA, D3HZ5255A, D4HA5225EA, D4HZ5230C, 4068782 |
