DONALDSON part description

Product Description

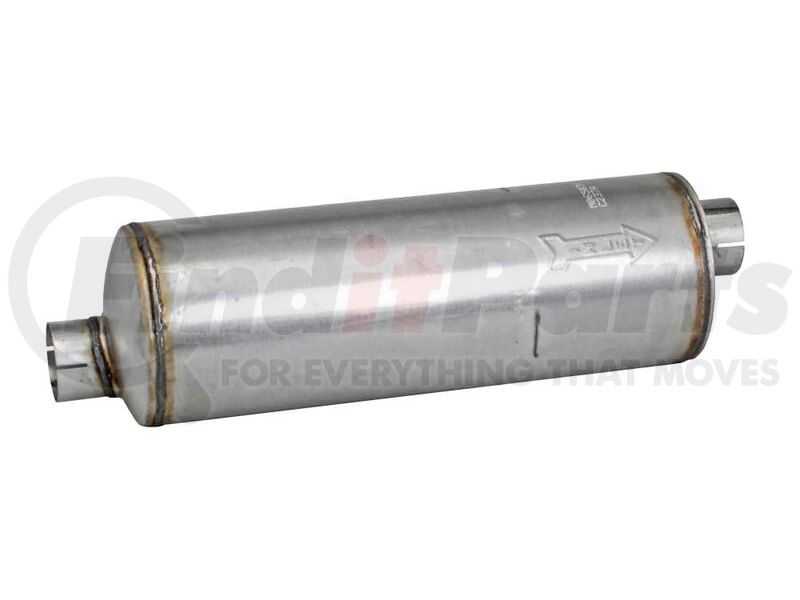

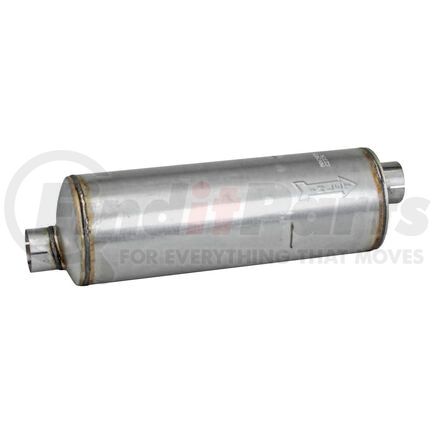

MUFFLER, ROUND STYLE 2

Product Attributes

Body Length 18.31 in
Overall Length 23.00 in
Attenuation Hr 20 dBA
Attenuation Lr 15 dBA
Back Pressure High-range Hg2.99 inch Hg)
Back Pressure Low-range Hg0.98 inch Hg)
Back Pressure Mid-range Hg2.01 inch Hg)
Body Diameter Maximum 6.61 in
Inlet Clock Position 12/31/1899 6:00:00 AM
Inlet Diameter 2.51 in
Outlet Clock Position 12/31/1899 12:00:00 PM
Outlet Diameter 2.51 in
Rated Flow Hr 20.1 m³/min (710 cfm)
Rated Flow Lr 11.6 m³/min (410 cfm)
Rated Flow Mr 16.4 m³/min (579 cfm)
Style Style 2
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.

DONALDSON M065034 Cross Reference

We have 6 alternatives for the M065034 by DONALDSON:
