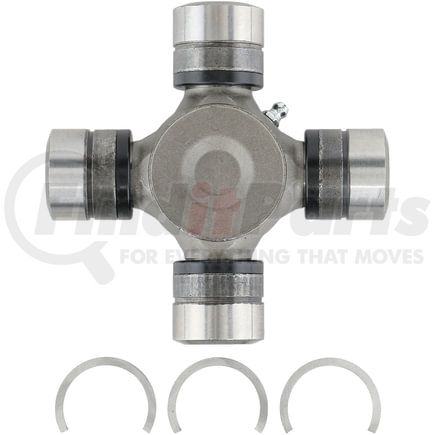

(888) 312-8812 Login SignupDANA SPICER SPL70-4X Axle Shaft Universal Joint; Greaseable; SPL70WJ Series
Tap to view 16 more
MSRP: $253.00
$10899
Save $144.01
Limited availability at this price!
In Stock
Get it by Thursday, Aug 20
DANA SPICER SPL70-4X Part Description
Manufacturer
Product Description
Axle Shaft Universal Joint; Greaseable; SPL70WJ Series
Features & Benefits
- Journal cross is engineered with a solid cold-formed body to ensure better wear and overall strength.
- Bearing cups are heat treated for strength; precision-ground and case-hardened for durability.
- Multi-lip seal keeps grease in and contaminants out, and gets maximum retention in a wider range of environments.
- Thrust washers eliminate metal-to-metal contact, prevent wear and lower the overall operating temperature.
| Brand: | SPL |
| Greaseable: | Y |
| Type: | ISR Style |
| OEM Mfg: | Spicer |
| OEM Series: | SPL70WJ |
| Bearing Cap Diameter (1): | 1.375 |
| Bearing Cap Diameter (2): | 1.375 |
| Snap Ring (1): | 3.78 |
| Snap Ring (2): | 3.78 |
| VMRS: | 24002046 |
| Bearing Cap Type: | Round |
| Snap Ring Type: | Internal |
| Snap Ring Included: | Y |
| Material: | Steel |
| Hardware Included: | N |
| Length A (IN): | 3.78 |
| Length B (IN): | 3.78 |
| Length A (mm): | 96 |
| Length B (mm): | 96 |
| Bearing Cap Type A: | ISR |
| Bearing Cap Type B: | ISR |
| Bearing Cap Diameter A (mm): | 1.375 |
| Bearing Cap Diameter B (mm): | 1.375 |
| Package Type: | Each |
| Package Quantity: | 1 |
| Weight: | 3.11 lbs. |
| Country of Origin: | United States |
| UPC Code: | 023913122041 |
DANA SPICER SPL70-4X Specifications
Product Attributes
| Material | Steel |
| Bearing Cap Diameter (1) | 1.375 IN |
| OEM Mfg | Spicer |
| OEM Series | SPL70WJ |
| Type | ISR Style |
| Bearing Cap Diameter (2) | 1.375 IN |
| Bearing Cap Type | Round with ISR Groove |
| Snap Ring Included | Yes |
| Snap Ring Type | Internal |
| Grease Zerk Included | Yes |
| Pre Greased | No |
| Grease Fitting Location | Side of Cross |
| Greaseable | Yes |
| Bearing Cap Diameter A (mm) | 34.925 MM |
| Bearing Cap Diameter B (mm) | 34.925 MM |
| Bearing Cap Type A | ISR |
| Bearing Cap Type B | ISR |
| Hardware Included | No |
| Length A (In) | 3.780 IN |
| Length A (mm) | 96.000 MM |
| Length B (In) | 3.780 IN |
| Length B (mm) | 96.000 MM |
| Mounting Hardware Included | No |
| Distance Btw Snap Ring Grooves | 3.780 |
| Distance Btw Snap Ring Grooves (ISR) (2) | 3.780 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00023913122041 |
| VMRS Code | 024002046 |
DANA SPICER SPL70-4X Cross References
| Brand | Part Number |
|---|---|
| SPSPL704X, TBB62153920 | |
| ACDelco | 45U2354 |
| DANA | 25-1550-4X, SPL70-1550XC |
| Daimler Truck North America | SP SPL70 4X, SP SPL70 4XHP |
| Dana Commercial Vehicle Service Parts | SPL70-3X |
| Ford | 5C3Z-3249-BA |
| GMB | 2300424 |
| International Harvester (IHC) | 2510749C91, SPL704X |
| MOOG Chassis Products | 424 |
| MasterPro | 424 |
| NAPA | SPL704X |
| NEAPCO | 3-0157 |
| Navistar | 2510749C91, DSSPL704X, SPL703X, SPL704X |
| Neapco OE Series | 3-0157 |
| Precision | 424 |
| SKF | 3-0157, UJ424 |
| Volvo | SP SPL704X |
DANA SPICER SPL70-4X Fits Vehicles
- Ford F-250 Super Duty (2011-2022)
- Ford F-350 Super Duty (2011-2019)
- GMC C5500 Topkick (2005-2009)
- Chevrolet C5500 Kodiak (2005-2009)
- GMC C4500 Topkick (2005-2009)
- Chevrolet C4500 Kodiak (2005-2009)
- Ford F-450 Super Duty (2005-2019)
- Ford F-550 Super Duty (2005-2019)
