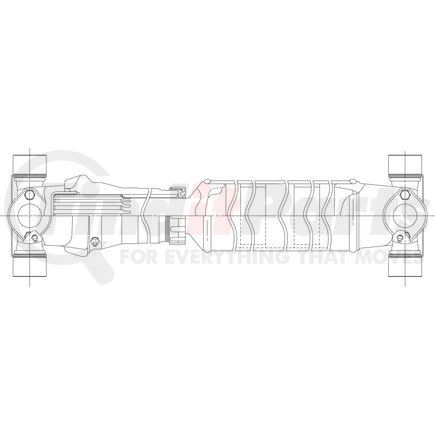

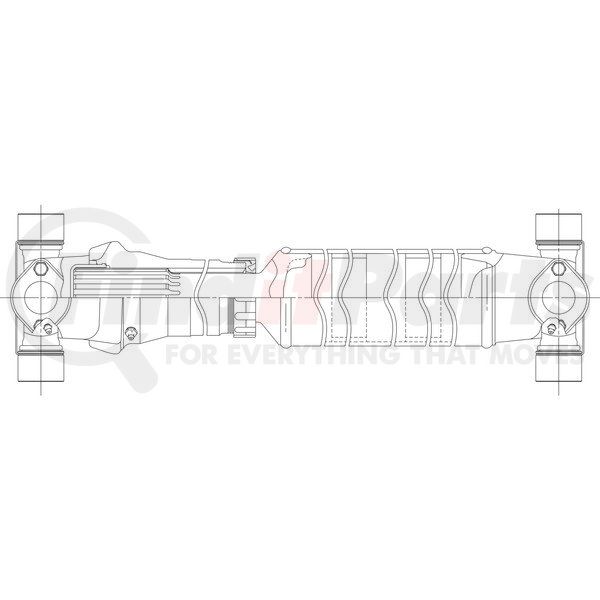

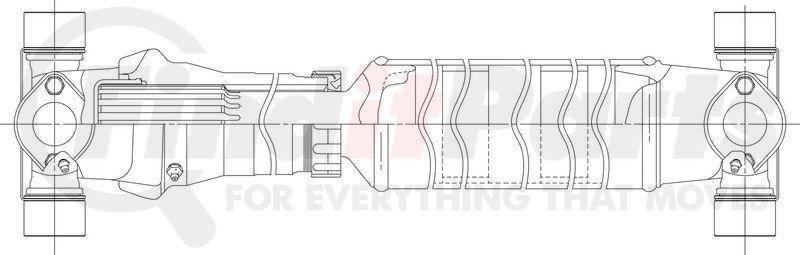

Dana 817264-0208 - DRIVE SHAFT
$1,16199
47 day lead time
limited availability at this price!
. Learn more
DANA part description
Specifications
| Brand | Spicer |
| Series | 1710 |
| Tube Size (MM) | 101.6 x 3.40 |
| Tube Size (IN) | 4.00 x .134 |
| Slip (MM) | 139.7000 |
| Slip (IN) | 5.5000 |
| Length End To End Collapse(MM) | 515.1500 |
| Length End To End Collapse(IN) | 20.2815 |
| Tube Length (MM) | 57.1500 |
| Tube Length (IN) | 2.2500 |
| Material | Steel |
| Phased - Degrees | N |
| VMRS | 024000000 |
| Weight | 62.83 LB |
| Country of Origin | United States |
Features & Benefits
- Dana manufactured Spicer Driveshafts are engineered, tested, and manufactured to meet or exceed OE requirements.
- Dana manufactured Spicer driveshafts are designed to be drop-in replacements, eliminating assembly time.
- Meets or exceeds the performance requirements of the original factory driveshaft
Product Attributes
| Series | 1710 |
| Material | Steel |
| Tube Length (In) | 2.2500 IN |
| Tube Length (Mm) | 57.1500 MM |
| Tube Size (in) | 4.00 x .134 IN |
| Tube Size (mm) | 101.6 x 3.40 mm |
| Shaft Material | Steel |
| Max Slip (IN) | 5.5000 |
| Max Slip (MM) | 139.7000 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708990000 |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913581268 |
| VMRS Code | 024000000 |
Part Interchanges
- Daimler Truck North America SP 817264 0208
- Dana Commercial Vehicle Service Parts 427DTP0515
- Dana Commercial Vehicle Service Parts 817264-0208R
- Volvo 30206-23.0
- Volvo SP 8172640208
- International Harvester (IHC) 270DTP1202
- International Harvester (IHC) 427DTP0515
- International Harvester (IHC) 8000873R91
- Navistar 270DTP1202
- Navistar 427DTP0515
- Navistar 8000873R91
- Navistar DS8172640208
- Paccar Parts E0560050515
- Paccar Parts E05-6005-0515
- Autocar LLC A3022000B001
- Freightliner SP 817264 0208
Dana Holding Corporation® is an internationally known company specializing in drivetrain and e-Propulsion systems. It conceptualizes, manufactures, and supplies energy-management and power- and conveyance solutions for the present-day and future vehicles and trucks. With its over 115 years of industry experience and innovation, and despite several turbulences the automotive and trucking industry has been through, Dana has managed to take the lead in revolutionary technological inventions. Dana Holding Corporation comprises different world-renowned brands catering to various market segments. These include SPICER Drivetrain Systems, VICTOR REINZ Sealing Products, LONG Thermal Products, BREVINI Motion Systems, GRAZIANO High-Performance Transmissions, FAIRFIELD Custom Gears and Drives, and a lot more.
