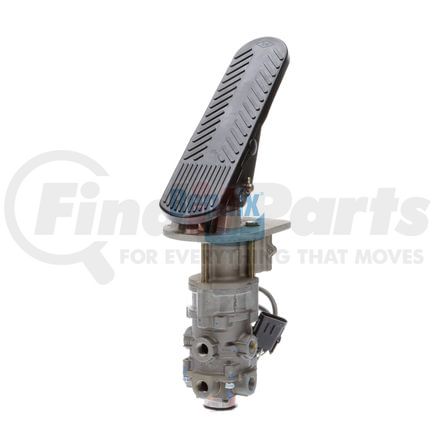

(888) 312-8812 Login SignupBENDIX 107746N E-10R™ Retarder Foot Brake Valve - New
Tap to view 8 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
BENDIX 107746N Part Description
Manufacturer
Product Description
Foot Brake Valve
Features & Benefits
- Specifically designed for use on buses, where smooth brake applications contribute to passenger comfort
- Made using state-of-the-art technology for superior performance and reliability
- Engineered to OE standards for exact form, fit, and function
- Factory-tested to ensure it works just like the original unit that came with your vehicle
- All Bendix valves are designed to enhance and improve vehicle performance
Courtesy of Bendix – All rights reserved
Bendix E-10R Air Brake Foot Valve
The Bendix E-10R air brake foot valve is an ideal replacement dual brake valve that is used to start the process of a brake application once you step on the brake pedal. It is made of tough, durable materials to ensure it withstands harsh operating conditions and lasts longer than the competition.
BENDIX 107746N Specifications
Product Attributes
| Delivery Port Diameter | 3/8-18 in. NPT |
| Differential Pressure | 3 PS |
| Exhaust Port Diameter | Dust Shield |
| Maximum Operating Temperature | 200 AdegF (93 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting Hole Diameter | 5/16-18 in. UNC-3B |
| Mounting Hole Quantity | 3 |
| New Or Remanufactured | New |
| Notes | With 31.5" Retarder, 10.94" Floor Pedal, Rubber Boot, and Mounting Plate; FMVSS 121 Compliant; Treadle Pedal Style; Total Pedal Travel: 28°; Weather Pack Series 4-Way Sealed Connector (Male); Steel Plunger |
| Pedal Angle | 40 DD |
| Port Configuration | Axial / Perpendicular |
| Series | E-10R™ |
| Supply Port Diameter | 3/8-18 in. NPT |
| Auxiliary Supply Port | Not applicable to this part |
| BVA-85 Included | No |
| BVA-85 Port Size | Not applicable to this part |
| Delivery (21) Port 1 | 3/8-18 NPT |
| Delivery (21) Port 2 | 3/8-18 NPT |
| Delivery (22) Port 1 | 3/8-18 NPT |
| Delivery (22) Port 2 | 3/8-18 NPT |
| Differential Pressure | 3.0 PSI |
| Exhaust Port | Dust Shield |
| Graduation Spring Style | Steel Spring |
| Initial Pedal Angle | 40Adeg |
| Market Indicator | Aftermarket New |
| Mounting (Valve Body) | 5/16-18 UNC-3B (3x) |
| Mounting (Vehicle) | A~ .34 IN (3x) |
| Mounting Nuts / Washers Included | Not applicable to this part |
| Mounting Plate Included | Yes |
| Mounting Stud Length | Not applicable to this part |
| Pedal Included | Yes |
| Pedal Length (from Pivot) | 8.97 IN |
| Pedal Length (Overall) | 10.94 IN |
| Pedal Material | Steel |
| Pedal Offset | Not applicable to this part |
| Pedal Pad Included | Yes |
| Pedal Style | Floor (Treadle) |
| Plunger Material | Steel |
| Regulatory Compliance | FMVSS 121 |
| Retarder Cable Length | 31.50 IN |
| Retarder Connector | Weather Pack Series 4-Way Sealed Connector (Male) |
| Retarder Included | Yes |
| Rubber Boot Included | Yes |
| Supply (11) Port 1 | 3/8-18 NPT |
| Supply (11) Port 2 | 3/8-18 NPT |
| Supply (12) Port 1 | 3/8-18 NPT |
| Supply (12) Port 2 | 3/8-18 NPT |
| Total Pedal Travel | 28Adeg |
| Waterproof | No |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
| UPC | 04068078347188 |
| VMRS Code | 013010051 |
BENDIX 107746N Cross References
BENDIX 107746N Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX 107746N Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
