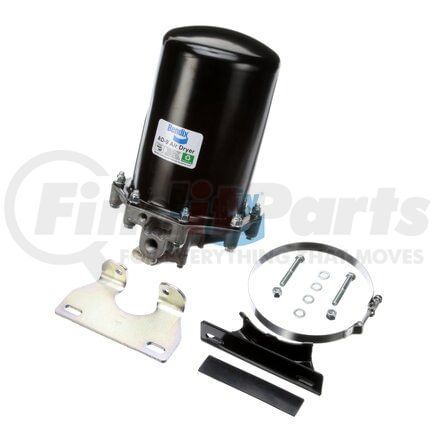

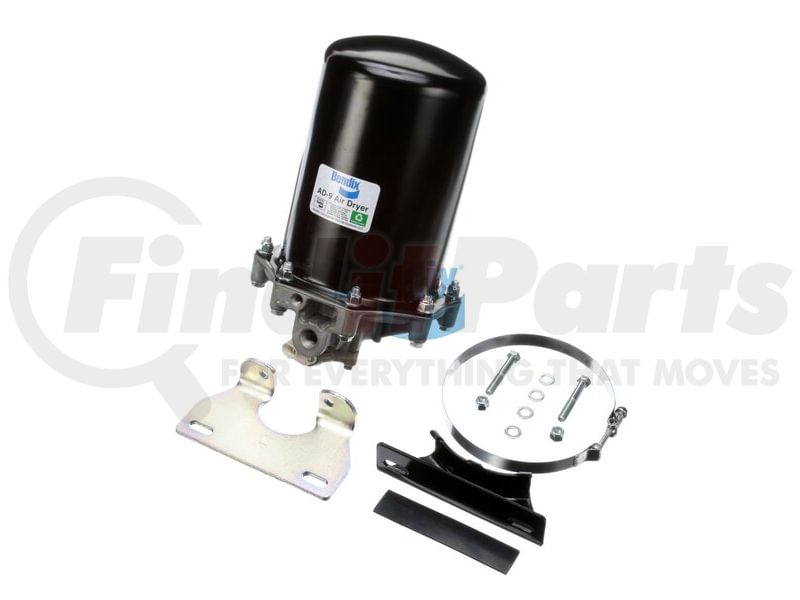

(888) 312-8812 Login SignupBENDIX 800202 Air Dryer
Tap to view 1 more
$1,01499
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 17
BENDIX 800202 Part Description
BENDIX 800202 Specifications
Product Attributes
| Air Dryer Type | Stand-Alone |
| Body Mounting | A~ .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x) |
| Cartridge Stabilizer Ring Included | No |
| Cartridge Thread | 5/8-11 UNC-2A |
| Cartridge Type | Standard |
| Clamp Band Angle (CW from SUP) | Not applicable to this part |
| Clearance to Remove Cartridge | 11.00 IN |
| Control Port | 1/4-18 NPT |
| Cut-In Pressure | Not applicable to this part |
| Cut-Out Pressure | Not applicable to this part |
| Delivery Port 1 | 1/2-14 NPT |
| Delivery Port 2 | Not applicable to this part |
| Extended Purge Port | Not applicable to this part |
| Governor Included | No |
| Governor Mounting Bracket | Not applicable to this part |
| Governor Mounting Bracket Angle (CCW from SUP) | Not applicable to this part |
| Governor Type | Not applicable to this part |
| Heater / Thermostat Rating | 12V / 75W |
| Heater Connector Color | White |
| Heater Connector Type | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Lower Mounting Bracket | .41 IN x 1.15 IN Slot (2x) |
| Lower Mounting Bracket Angle (CCW from SUP) | Loose in Box |
| Market Indicator | Aftermarket New |
| Maximum Inlet Temperature | 160 AdegF (71 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Purge Exhaust Port | Open (No Cover) |
| Purge Valve Type | Hard Seat |
| Purge Volume | Standard |
| Remote Fill Feature | Not applicable to this part |
| Remote Purge Port | Not applicable to this part |
| Safety Valve Opening Pressure | 200 PSI |
| Supply Port | 1/2-14 NPT |
| Turbo Cut-off Function | Not applicable to this part |
| Upper Mounting Bracket | .39 IN x 1.15 IN Slot (2x) |
| Upper Mounting Bracket Angle (CCW from SUP) | Loose in Box |
| Upper Mounting Bracket Height (from Lower Mounting Bracket) | Loose in Box |
| Upper Mounting Type | Strap (Stainless Steel) |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 07894294738823 |
| VMRS Code | 013010252 |
BENDIX 800202 Cross References
| Brand | Part Number |
|---|---|
| BW800202 | |
| N/A | 065231 |
| WORLD AMERICAN | WAP22-007PG |
