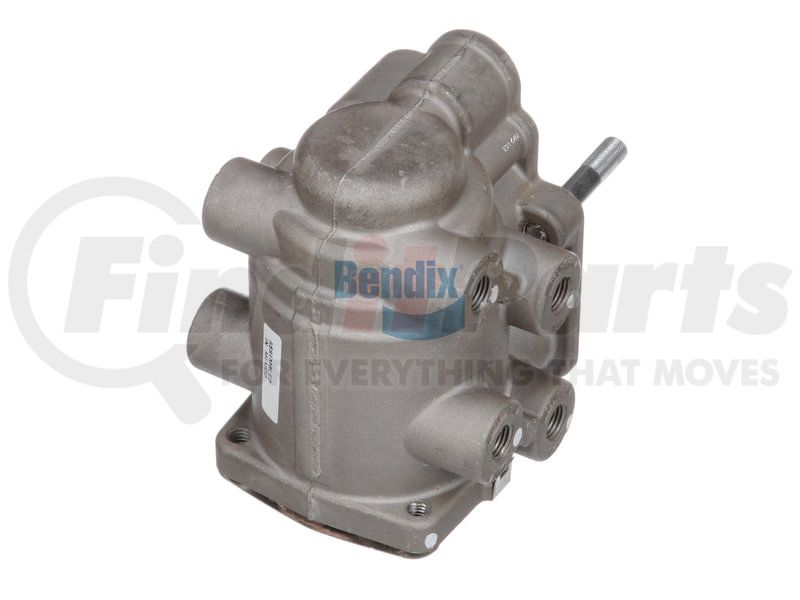

(888) 312-8812 Login SignupBENDIX 286773 E-7™ Dual Circuit Foot Brake Valve - New, Bulkhead Mounted, with Suspended Pedal
Tap to view 9 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
BENDIX 286773 Part Description
Manufacturer
Product Description
Foot Brake Valve
Features & Benefits
- Specifically designed for use on buses, where smooth brake applications contribute to passenger comfort
- Made using state-of-the-art technology for superior performance and reliability
- Engineered to OE standards for exact form, fit, and function
- Factory-tested to ensure it works just like the original unit that came with your vehicle
- All Bendix valves are designed to enhance and improve vehicle performance
Courtesy of Bendix – All rights reserved
Bendix E-7 Air Brake Foot Valve
The Bendix E-7 air brake foot valve is an ideal replacement dual brake valve that is used to start the process of a brake application once you step on the brake pedal. It is made of tough, durable materials to ensure it withstands harsh operating conditions and lasts longer than the competition.
BENDIX 286773 Specifications
Product Attributes
| Delivery Port Diameter | 4 @ 1/4-18 in. NPT, 2 @ 1/2-14 in. NPT |
| Differential Pressure | 3 PS |
| Exhaust Port Diameter | 1/2-14 in. NPT |
| Maximum Operating Temperature | 200 AdegF (93 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting Hole Diameter | 5/16-18 in. UNC-3B |
| Mounting Hole Quantity | 3 |
| New Or Remanufactured | New |
| Notes | Valve Only; FMVSS 121 Compliant |
| Port Configuration | Side / Rear |
| Series | E-7™ |
| Supply Port Diameter | 4 @ 1/4-18 in. NPT, 2 @ 1/2-14 in. NPT, 1 @ 1/8-27 in. NPT |
| Delivery (21) Port 1 | 1/4-18 NPT |
| Delivery (21) Port 2 | 1/4-18 NPT |
| Delivery (21) Port 3 | 1/2-14 NPT |
| Delivery (22) Port 1 | 1/4-18 NPT |
| Delivery (22) Port 2 | 1/4-18 NPT |
| Delivery (22) Port 3 | 1/2-14 NPT |
| Differential Pressure | 3.0 PSI |
| Exhaust Port | 1/2-14 NPT |
| Graduation Spring Style | Rubber |
| Initial Pedal Angle | Not applicable to this part |
| Manifold Included | No |
| Market Indicator | Aftermarket New |
| Mounting (Valve Body) | 5/16-18 UNC-3B (3x) |
| Mounting (Vehicle) | 3/8-24 UNC-2A Stud (3x) |
| Mounting Nuts / Washers Included | No |
| Mounting Plate Included | No |
| Mounting Stud Length | 1.50 IN |
| Pedal Included | No |
| Pedal Length (from Pivot) | Not applicable to this part |
| Pedal Length (Overall) | Not applicable to this part |
| Pedal Material | Not applicable to this part |
| Pedal Offset | Not applicable to this part |
| Pedal Pad Included | Not applicable to this part |
| Pedal Style | Not applicable to this part |
| Plunger Material | Not applicable to this part |
| Regulatory Compliance | FMVSS 121 |
| Rubber Boot Included | No |
| Supply (11) Port 1 | 1/4-18 NPT |
| Supply (11) Port 2 | 1/4-18 NPT |
| Supply (11) Port 3 | 1/2-14 NPT |
| Supply (12) Port 1 | 1/4-18 NPT |
| Supply (12) Port 2 | 1/4-18 NPT |
| Supply (12) Port 3 | 1/2-14 NPT |
| Supply (12) Port 4 | 1/8-27 NPT |
| Total Pedal Travel | Not applicable to this part |
| Waterproof | No |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
| UPC | 04068078320075 |
| VMRS Code | 013010051 |
BENDIX 286773 Cross References
BENDIX 286773 Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX 286773 Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
