(888) 312-8812 Login SignupMOOG 477 MOOG 477 Greaseable Premium Universal Joint
Tap to view 1 more
MSRP: $142.62
$8899
Save $53.63
Limited availability at this price!
In Stock
Get it by Monday, Jan 12
MOOG 477 Part Description
Manufacturer
Product Description

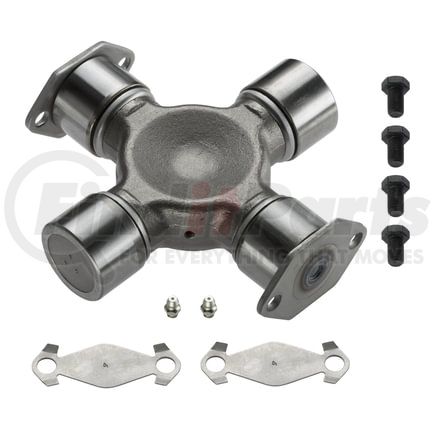

Greaseable Premium Universal Joint
Features & Benefits
- BUILT TO LAST -- Rugged design specifically engineered for fleets, off-highway and commercial vehicles
- STRONG AND DURABLE -- Bearing cups are cold-formed, case-hardened and precision ground for strength and durability
- KEEPS DIRT OUT -- Abrasion-resistant nitrile seals provide ideal grease retention and protection from under-vehicle contaminants
- GREASEABLE DESIGN -- Drilled and tapped grease fitting holes for easy servicing and cross trunnions with large grease reservoirs with radial grease channels for grease distribution
- INHIBITS PREMATURE WEAR -- Cross trunnions ground to a 15-25 RMS finish for a smooth surface free of microscopic grooves that can cause premature wear
- RELIABLE PERFORMANCE -- Internal anti-drainback valve integrated into thrust washer controls lubrication flow and prevents dry startup
- RIGOROUS TESTING -- Comprehensive testing throughout design and development processes by MOOG engineers for quality you can count on
-
Description
A full line of premium oil seals and bearings : • Premium bearing design matches OEM specifications• Precision manufactured using premium steel grades for outstanding durability and performance• Crowned raceways and rollers to ensure even load distribution for maximum life -
Specifications
TAPER CONE: Part Description: Taper Bearing ConeCone Bore (Inch): 2.5000Cone Bore (MM): 63.5000Cone Length (Inch): 1.1420Cone Length (MM): 29.0070Cone Radius (Inch): 0.0310Cone Radius (MM): 0.7870
MOOG 477 Specifications
Product Attributes
| Bearing Cap Axis 1 Diameter | 1.937 IN |
| Bearing Cap Axis 1 Diameter | 49.1 MM |
| Bearing Cap Axis 2 Diameter | 1.937 IN |
| Bearing Cap Axis 2 Diameter | 49.1 MM |
| Bearing Cap Type | 2 Welded Plate & 2 Plain Round Bearings |
| Bearing Type A | Round Plain |
| Bearing Type B | Round Welded Plate |
| Length Axis 1 | 7.093 IN |
| Length Axis 1 | 180.1 MM |
| Length Axis 2 | 7 IN |
| Length Axis 2 | 115.8 MM |
| Length Measurement A | Outside of Bearing To Outside of Bearing |
| Length Measurement B | Inside of Welded Plate to Inside of Welded Plate |
| LUBE FITTING LOCATION | Two regular lube fittings in cross |
| Greaseable | YES |
| OE Series | Spicer 1760 |
| U-Joint Identification | 2 Welded Plate & 2 Plain Round Bearings |
| Part Description | Universal Joint |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | MX |
| Canadian Harmonizing Tariff Code | 8708991510 |
| Harmonized Tariff Code (Schedule B) | 8708996810 |
| Harmonized Tariff Code (HTS) | 8708996810 |
| UPC | 00080066608983 |
MOOG 477 Part Interchanges
| Brand | Part Number |
|---|---|
| Neapco OE Series | 28469X, 60677, 6-4071 |
| Perfect Circle | 469 |
| GMB | 230-0562, 64071 |
| SKF | 28469X, 60677, 6-4071 |
| General Motors | 15636784 |
| Chicago Rawhide | 28469X, 60677, 6-4071 |
| ACDelco | 45U2324 |
| TRW Steering and Suspension Parts | 20343 |
| Spicer | 5-469X |
| British Leyland | 407HR |
| Autopar | 2300562, 64071 |
| Autopar - Archived | 5469X |
| AUTOPAR | A-677X |
MOOG 477 Customer Reviews
No reviews yet
Be the first to review this product!
MOOG 477 Manufacturer Information
For over 100 years, Moog® has been an industry leader in mid- to high-end aftermarket parts for steering, suspension, and driveline systems worldwide. Utilized by daily commuters to entire fleets, Moog parts have become synonymous with reliable performance that’s just as good or even better than their OE counterparts. Moog also incorporates innovative features in their products not found in competing products, such as patented forged steel bodies and metal “gusher” bearings that greatly reduce friction across moving components. The brand also leads the way in after-sales support, with comprehensive technical assistance and training materials available for customers around the world.
