(888) 312-8812 Login SignupMERITOR 05 15938 1001 HUB ASSEMBLY

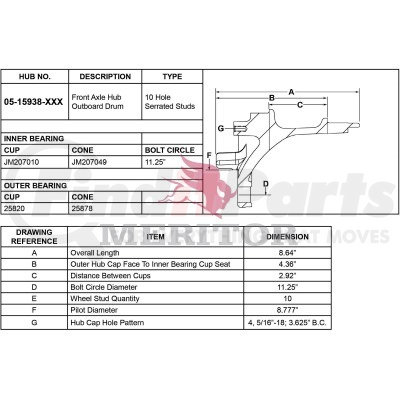

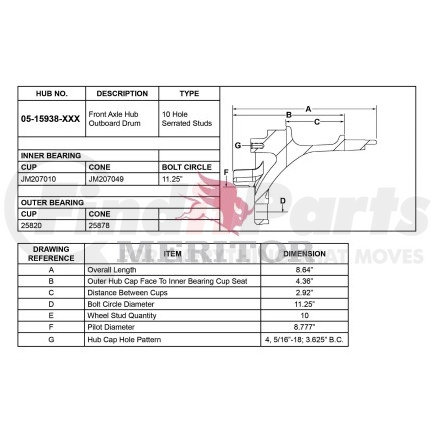

*Representative image - actual part not displayed
$744.67
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MERITOR 05 15938 1001 Part Description
| ABS Pilot Diameter | 4.424/4.421 in. |
| ABS Ring Number | 3237K1259 |
| Axle Application | Steer |
| Axle Series | FC-941 |
| Base Part Number | 15938 |
| Brake Type | Drum |
| Drum Bolt Circle Diameter | 11.25 in. |
| Drum Bolt Pattern | 10 |
| Drum Bolt Size | .904/.906 in. |
| Drum Pilot Diameter | 8.778/8.775 in. |
| Flange Outer Diameter | 13.00 in. |
| Fully Dressed | No |
| GAWR (lb) | 8000 |
| Hub Cap Bolt Circle Diameter | 3.625 in. |
| Hub Cap Bolt Thread | 5/16-18 UNC-3B |
| Hub Cap Pattern | 4 |
| Hub Style | Conventional |
| Hub Type | Hub Only |
| IBS to OBS | 2.94/2.90 in. |
| IBS to Outer Surface | 4.38/4.34 in. |
| Inner Bearing Surface (IBS) to Mounting Face | 5.8 in. |
| Inner Cone | JM207049A |
| Inner Cup | JM207010 |
| Notes | Wheel studs included |
| Oil Seal | A1205F2554 |
| Outer Cone | 25877 |
| Outer Cup | 25820 |
| Tone Ring | Y |
| VMRS Code | 018-001-003 |
| Wheel Pilot Diameter | 8.653/8.646 in. |
| Wheel Stud | 09-001989 |
| Wheel Stud Bolt Circle Diameter | 11.25 in. |
| Wheel Stud Hole | .904/.906 in. |
| Wheel Stud Pattern | 10 |
Meritor Hydraulic Brake Hub Assembly
The Meritor hydraulic brake hub assembly is built for higher payload capacities and improved fuel economy. It is suitable for a wide range of trucks, trailers, and other commercial vehicle applications.
Features & Benefits
- Designed for weight savings and strength for increased payload and better fuel mileage
- Meets or exceeds OE specifications and federal stopping distance requirements
- Advanced machining processes ensures an optimum balanced operation
- Premium grade steel construction for superior durability over comparable aftermarket hubs
- Click here for warranty information
MERITOR 05 15938 1001 Specifications
Product Attributes
| Abs Pilot Diameter | 4.424/4.421 in. |
| Abs Ring Number | 3237K1259 |
| Axle Application | Steer |
| Axle Series | FC-941 |
| Base Part Number | 15938 |
| Brake Type | Drum |
| Brand | Meritor Genuine |
| Drum Bolt Circle Diameter | 11.25 in. |
| Drum Bolt Pattern | 10 |
| Drum Bolt Size | .904/.906 in. |
| Drum Pilot Diameter | 8.778/8.775 in. |
| Flange Outer Diameter | 13.00 in. |
| Fully Dressed | No |
| Gawr (lb) | 8000 |
| Hub Cap Bolt Circle Diameter | 3.625 in. |
| Hub Cap Bolt Thread | 5/16-18 UNC-3B |
| Hub Cap Pattern | 04 |
| Hub Style | Conventional |
| Hub Type | Hub Only |
| Ibs To Obs | 2.94/2.90 in. |
| Ibs To Outer Surface | 4.38/4.34 in. |
| Inner Bearing Surface (ibs) To Mounting Face | 5.8 in. |
| INNER CONE | JM207049A |
| Inner Cup | JM207010 |
| Notes | Wheel studs included |
| OIL SEAL | A1205F2554 |
| OUTER CONE | 25877 |
| Outer Cup | 25820 |
| Pallet Quantity | 10 |
| Tone Ring | Y |
| Weight | 44.20 |
| Wheel Pilot Diameter | 8.653/8.646 in. |
| Wheel Stud | 09-001989 |
| Wheel Stud Bolt Circle Diameter | 11.25 in. |
| Wheel Stud Hole | .904/.906 in. |
| Wheel Stud Pattern | 10 |
