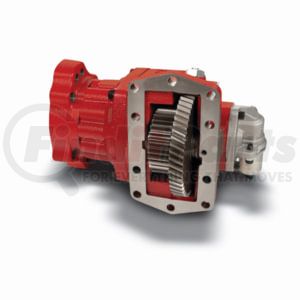

Chelsea 489 Series Power Take-Off fits most manual transmissions with an 8-Bolt PTO mounting aperture.
The Chelsea 489 Series Power Take-Off (PTO) is another example of why Chelsea PTO technology is the best in the business. It’s specifically designed to reduce mounting time. The one-piece, cast iron PTO housing bolts on to the 8-Bolt transmission opening, but gives the same torque capacity as the 442 Series. That means one less part to buy, one less surface to leak, and faster installation. The 489 has strong tapered bearings instead of needle bearings for greater load bearing capability. Thirty six output options including Chelsea’s popular 360° rotatable flange. Eleven internal speed ratios and ten shift options plus a self-lube option for transmissions that have problems getting lubrication to the PTO make this one versatile PTO. Take advantage of over 65 years of Chelsea PTO technology to increase performance and lower costs.
|Intermittent Torque Rating (Lbs-ft)||250|
|Intermittent Torque Rating (Nm)||339|
|Hosepower Rating for Intermittent Service|
|At 500 R.P.M. of Output Shaft (HP)||24|
|At 500 R.P.M. of Output Shaft (Kw)||18|
|At 1000 R.P.M. of Output Shaft (HP)||48|
|At 1000 R.P.M. of Output Shaft (Kw)||36|
|Approximate Weight:||30 lbs. [13.6 kg]|
|Mounting Type:||Standard Mount|
|Input Gear Designator:||Universal, Part No. 5-P-1004|
|Lube Type:||without Pressure Lube|
|Shift Type:||Air Shift (mounting parts included)|
|Output Type:||SAE B 2 or 4-Bolt Flange, SAE B Shaft (7/8" - 13T)|
We have 2 alternatives for the 489XQAHX-A3XK by CHELSEA:
Chelsea®, a division of Parker, manufactures and supplies a comprehensive selection of Power Take-Off (PTO) products for the mobile vocational and truck markets. Over the years, this company has grown exponentially, thanks to its global network of distribution centers in North America, Europe, Asia, and Australia. It also attributes its continued success to the individual employee's full commitment to providing only the highest quality products to its customers worldwide. More people choose this brand because its board range of products is offered with varying torque capacities, internal speeds, and output options. So whatever your driven equipment requirement is, Parker Chelsea has got you covered.
