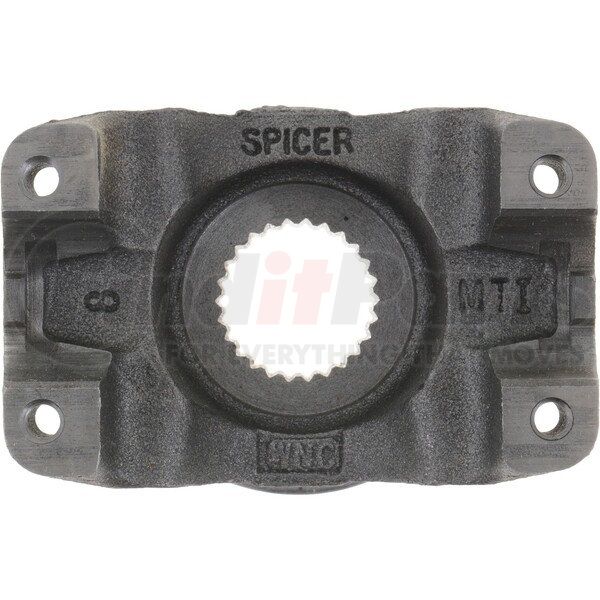

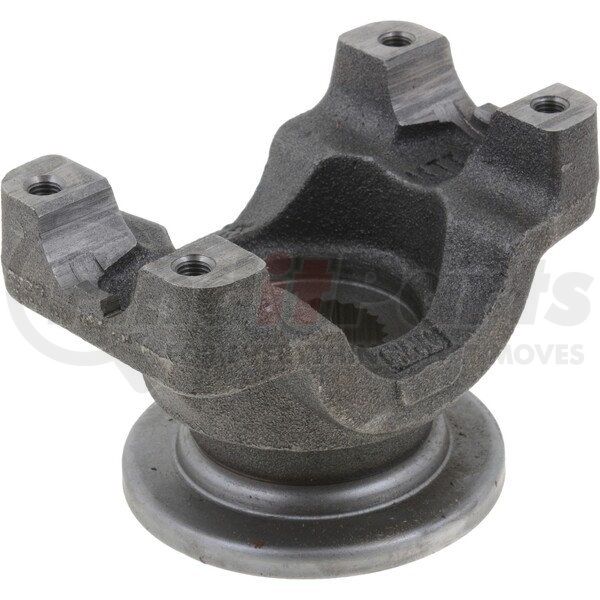

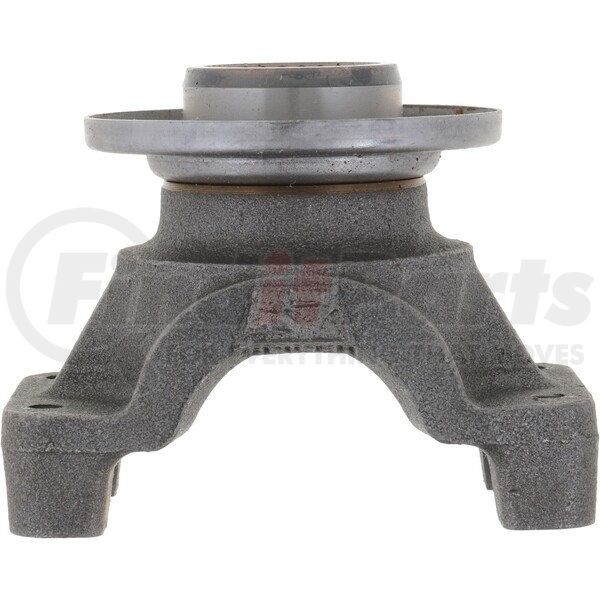

Dana 2-4-8701-1X - Drive Shaft End Yoke; Coupling Shaft End Yoke
$21099
134 day lead time
limited availability at this price!
DANA part description
Series: | 1310 |
Spline Count: | 26 |
Yoke Style: | BS |

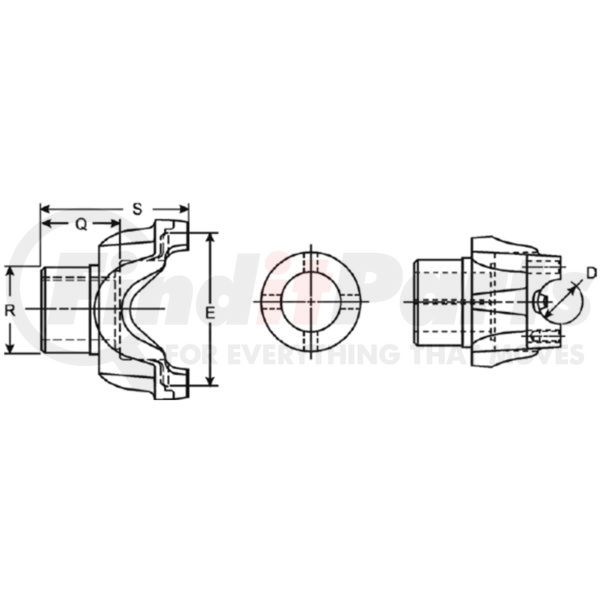

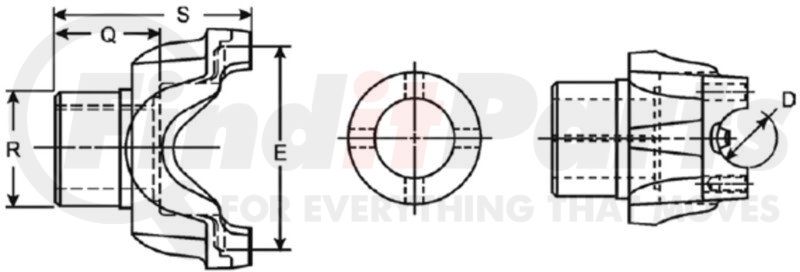

Hub Diameter R: | 1.500 in. |
C/L to End Hub S: | 3.000 |
Type: | Splined Hole |
Outside Yoke Dimension (E): | 3.219 in. |
Yoke Bearing Dimension (IN) D: | 1.062 |
Major Diameter: | 1.146 |
Involute Spline: | Y |
Length Thru Hole Q: | 1.465 |
Material: | Steel |
Features & Benefits
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Product Attributes
Series | 1310 |
Material | Steel |
Spline Count | 26 |
Type | Splined Hole |
Hub Diameter R | 1.500 IN |
Involute Spline | Y |
Length Thru Hole Q | 1.465 IN |
Outside Yoke Dimension (In) E | 3.219 IN |
Yoke Bearing Dimension (In) D | 1.062 IN |
Yoke Style | BS |
Major Diameter | 1.146 IN |
C/L To End Hub S | 3.000 IN |
Additional Information
Country of Origin (Primary) | IN |
Harmonized Tariff Code (Schedule B) | 8708990000 |
Harmonized Tariff Code (HTS) | 8708990000 |
UPC | 00023913237417 |
VMRS Code | 022003072 |
Part Interchanges
Fits Vehicles
- Chevrolet Colorado (2004-2012)
- GMC Canyon (2004-2012)
