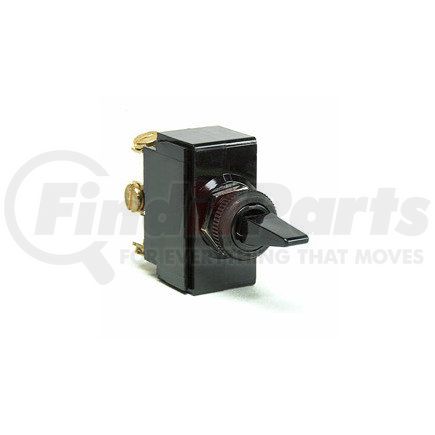

Name: Cole Hersee 54104 54104 - 54100 Series
SKU: 54104
Price: 19.99 USD
Availability: InStock

COLE HERSEE part description

Cole Hersee toggle switches are manufactured in many different configurations. They're available with ball, short or long handles, paddle and illuminated actuators. Housing are plastic, plastic/metal combination or die cast. Weather resistant options are available that make any standard toggle switch adaptable for use in applications where moisture, dirt and similar elements are present.
Toggle switch accessories include weather resistant boots, face plates, switch guards, and handle extensions.
All products listed in this section can be found in Section B of the Cole Hersee D-275 CATALOG.

SPDT momentaryWe sometimes call it a "Mom". A momentary switch is spring-loaded - press the actuator and it moves; remove your finger and it returns to its original position. The oppsite type is a maintained contact switch. You move the actuator, and it stays put until you move it again. We have 'Moms' in all kinds - Push-pull, pushbutton, rotary, toggle and rocker, for example. Some simple switches are TOGGLED - you press to On, press again to Off. toggle Switch.
Black nylon handle, 11/16" (17.5mm) long.
Silver contactsA pair of devices that touch or come apart at the point where the switch throw makes or breaks the circuit. Silver contacts are common because of their low conductivity and low electrical resistance. Many Cole Hersee switches have silver contacts..
Mounting stem 15/32" -32 thread, 15/32" (11.9mm) long, fits panels up to 1/8" (31.8mm) thick.
Includes mounting hardware: black metal facenut and nickel-plated hexnut.
25A at 12V DC.
Terminals: 6-32 screw.Three screw terminals.
Up: Mom On, Center: Off, Down: Mom On.

Switch type	Toggle
Description	Weather-Resistant , O Ring sealed bushing,Toggle Switch
Circuitry	SPDT
Electrical Rating	25A at 12V DC
Contacts	Silver
Housing	Black plastic
Up position	Momentary On
Center position	Off
Down position	Momentary On
Terminals	3 screw
Handle material	Black nylon
Handle type	Wedge
Handle size: inches	11/16" Long
Handle size: mm	17.46mm
Mounting hardware	Black finished face nut & plated hex nut
Mounting stem material	Nylon plastic,black
Mounting stem dimmensions	15/32" -32 thread, 15/32" (11.90mm) Long
Mounting hole dimension	15/32" (11.90mm) Panel Hole
Panel thickness	Up to 1/8" (3.17mm) thick
Min qty	No

Cole Hersee® is highly valued in the heavy duty truck industry. It is a leading manufacturer of heavy-duty battery master switches that are widely used as OE equipment by leading heavy-duty vehicle manufacturers. These switches are essential safety components for trucks as they help prevent theft, tampering, electrical fires, and battery drain. Founded in 1924, Cole Hersee is committed to improving vehicle safety by partnering with ECCO Safety Group Australia (ESGA) to establish and implement safety standards for trucks that drive onto mining sites. Its products are also manufactured in its ISO 9001:2008-certified facility and undergo strict testing to ensure safety and reliability.
