(888) 312-8812 Login SignupRAYBESTOS 980766 Raybestos Specialty - Street Performance Brake Rotor
$13699
Limited availability at this price!
In Stock
Get as soon as Thursday, Sep 17
RAYBESTOS 980766 Part Description
Manufacturer
Product Description

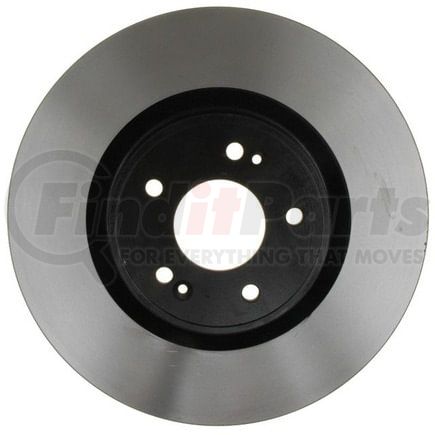

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2016-2010 Hyundai Genesis Coupe Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980766 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 8.346 IN |
| Inside Diameter | 212 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.487 IN |
| Mounting Bolt Hole Diameter | 12.35 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 13.386 IN |
| Outside Diameter | 340 MM |
| Overall Height | 2.224 IN |
| Overall Height | 56.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352778845 |
RAYBESTOS 980766 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH274778, YH274778C, YH274778P |
| AUTOZONE | 44677, 44677DG |
| BOSCH | 28011493 |
| BRAKEBEST | 28011493, 980766, 980766FZN, 980766R, 980766RGS |
| Brembo | 09.A554.11 |
| CENTRIC | 120.51036, 121.51036, 125.51036, 125.51036CRY, 126.51036CSL, 126.51036CSR, 126.51036SL, 126.51036SR, 127.51036CL, 127.51036CR, 127.51036L, 127.51036R, 128.51036CL, 128.51036CR, 128.51036L, 128.51036R, 320.51036C, 320.51036H |
| Centric Parts | 121.51036, 125.51036, 125.51036CRY, 126.51036CSL, 126.51036CSR, 126.51036SL, 126.51036SR, 127.51036CL, 127.51036CR, 127.51036L, 127.51036R, 128.51036CL, 128.51036CR, 128.51036L, 128.51036R, 320.51036C, 120.51036, 320.51036H |
| DURA CORP | BR31546 |
| Dura Corp | BR900796 |
| DuraGo | 900796, BR900796 |
| Hyundai | 517122M700 |
| MAGMA PRODUCTS | PSR283035 |
| NEWTEK AUTOMOTIVE | 31546 |
| Newtek Automotive USA | 31546 |
| PROMAX | 14-31546 |
| PRONTO | BR900796 |
| Qualis | 44677 |
| UAP | R51036 |
| Ultra Brake | HY-3001 |
| WINHERE | 6621174 |
| WORLDPAC | 1407-274779 |
| Wagner Brake | BD180275E |
RAYBESTOS 980766 Fits Vehicles
- Hyundai Genesis Coupe (2010-2016)
