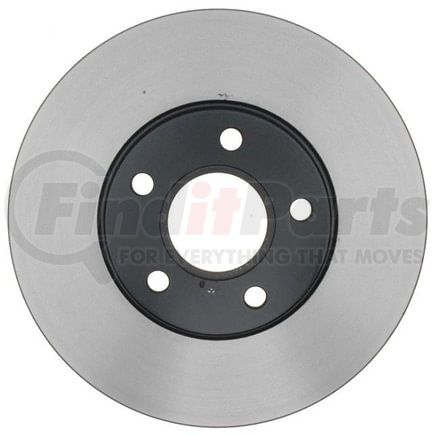

(888) 312-8812 Login SignupRAYBESTOS 680765 Raybestos Specialty - Truck Brake Rotor
$9549
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 9
RAYBESTOS 680765 Part Description
Manufacturer
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2013-2010 Ford Transit Connect Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680765 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.5 IN |
| Center Hole Diameter | 63.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.88 IN |
| Discard Thickness | 22.35 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.247 IN |
| Inside Diameter | 158.65 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.542 IN |
| Mounting Bolt Hole Diameter | 13.75 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.946 IN |
| Nominal Thickness | 24.05 MM |
| Outside Diameter | 10.945 IN |
| Outside Diameter | 278 MM |
| Overall Height | 1.748 IN |
| Overall Height | 44.4 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352795330 |
RAYBESTOS 680765 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 286284, YH286284, YH286284C, YH286284P |
| AUTOXTRA | AX900850 |
| AUTOZONE | 75002, 75002DG |
| BENDIX | PRT5988 |
| BRAKEBEST | 680765R, 680765RGS, 680765, 680765FZN |
| CENTRIC | 120.65132, 120.65132CRY, 121.65132, 126.65132CSL, 126.65132CSR, 126.65132SL, 126.65132SR, 127.65132L, 127.65132R, 128.65132CL, 128.65132CR, 128.65132L, 128.65132R, 320.65132, 320.65132F, 321.65132 |
| Centric Parts | 120.65132, 120.65132CRY, 121.65132, 126.65132CSL, 126.65132CSR, 126.65132SL, 126.65132SR, 127.65132L, 127.65132R, 128.65132CL, 128.65132CR, 128.65132L, 128.65132R, 320.65132, 320.65132F, 321.65132 |
| DURA CORP | BR54172, BR900850, BR90085002 |
| DuraGo | 900850, BR900850, BR90085002, BR900850-02 |
| FORD | 2T1Z1125A |
| MAGMA PRODUCTS | PSR205244 |
| Motorcraft | NBRR62 |
| NAPA BRAKES | SDK6112 |
| NEOTEK | 1071097GF |
| NEWTEK AUTOMOTIVE | 54172 |
| Newtek Automotive USA | 54172 |
| PAGID | 355110281 |
| PAGID Racing | 355110281 |
| POWERSTOP | AR85132EVC |
| PROMAX | 14-54172 |
| PRONTO | BR900850 |
| QUALIS | 42269 |
| TopNotch | TN680765GEO |
| UAP | R65132 |
| Ultra Brake | 54435 |
| WAGNER BRAKE | BD180374E |
| WINHERE | 662876 |
| WORLDPAC | 1407-286284, 1427-731851 |
RAYBESTOS 680765 Fits Vehicles
- Ford Transit Connect (2010-2013)
