GATES 23569 Part Description
Manufacturer
Product Description

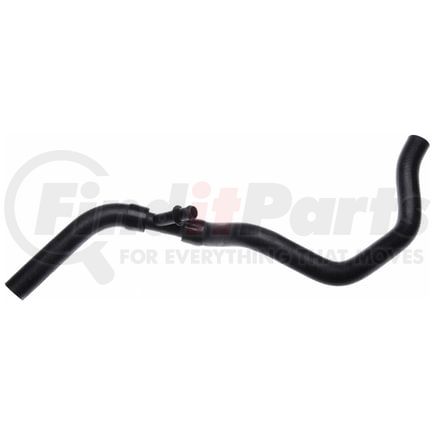

Premium Modular Coolant Hose
Application Summary
2010-05 Ford, Super Duty Van, V-8 6.0 L Diesel, By Pass
Features & Benefits
- Specifically-engineered materials resist collapse under vacuum
- Specifically-engineered materials resist collapse under vacuum
- Engineered to resist electrochemical degradation - the leading cause of hose failure
- Engineered to resist electrochemical degradation – the leading cause of hose failure
- EPDM tube; synthetic fiber knit reinforcement, heat-, ozone- and chemical coolant-resistant EPDM cover
- Manufactured with OEM-exact hose components (quick connects, branch connectors/tees, sensors, etc.)
- Meets SAE 20R3 EC Class D1 under 25mm (1 in.) ID, SAE 20R4 EC Class D1 for 25mm (1 in.) ID and over
- Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C)
- Note: Gates recommends replacing clamps each time a new coolant hose is installed
- Caution: Do not use for fuel or oil transfer applications
GATES 23569 Specifications
Product Attributes
| Centerline Length | 29 IN |
| Modular | Yes |
| Modular Components Included | Outlet |
| Branch Quantity | 0 |
| Quick Connect Fitting Quantity | 0 |
| End 1 Inside Diameter | 1 in |
| End 2 Inside Diameter | 1 in |
| End 3 Inside Diameter | .75 in |
| Contains Spring | No |
| Material | EPDM, Plastic |
| Molded | Yes |
| Centerline Length | 19 MM |
| End 1 Inside Diameter | 25 MM |
| End 2 Inside Diameter | 25 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 4009310000 |
| UPC | 00770075420798 |
| VMRS Code | 042004014 |
| UNSPSC | 40142000 |
GATES 23569 Part Interchanges
| Brand | Part Number |
|---|---|
| Motorcraft | KM4902 |
| ACDelco | 26666X |
| Carquest | 23569 |
| Continental Belt | 64548, E91176 |
| Ford | 5C2Z 8075 A |
| Dorman | 626-667 |
| NAPA Belts/Hose | 16284 |
| Duralast | E91176 |
GATES 23569 Fits Vehicles
- Starcraft Bus Starlite (2005-2010)
- Ford E-350 Club Wagon (2005)
- Ford E-350 Super Duty (2005-2010)
- Ford E-450 Super Duty (2005-2010)
GATES 23569 Cross References
We have 1 alternatives for the 23569 by GATES:
