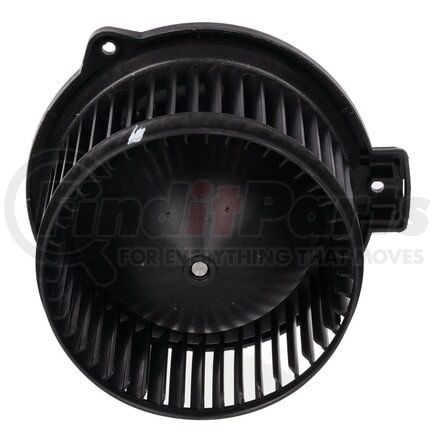

REACH COOLING 16-12588 Part Description
Manufacturer
Features & Benefits
- High performance magnetic tile. Our brushed blowers offer this magnetic tile to improve the efficiency of the motor, reduce the power consumption, and make the blower more energy saving and environmental protection.
- High-speed progressive die stamping. The end cover and motor housing of our brush motors are formed in this way to ensure the consistency and productivity of the product.
- High Quality Material. The wind wheel and base of our brush motors are made of specialized material, which improves the strength of the product, reduces deformation and enhances performance and reliability of the product.
- Silent bearings. Our brush motors are designed with silent bearings to reduce the noise of the motor during operation and improve the comfort of the product.
- 100% testing of product assembly. Ensures effective and reliable performance.
- Automatic production line. Our brush motors contain armature components that are produced in a fully automated production line, with 100% recalibration and performance testing to enhance the reliability of the product.
- High temperature resistant components. Our brush motors are designed to improve the temperature resistance of the motor and reduce the probability of the motor burning out.
- Eccentric magnetic tile. Our brush motors are designed to reduce the noise of the motor excitation, so that the blower runs more quietly.
- Product balance performance calibration. The product balance performance of our bush motors are 100% calibrated to ensure that the balance performance is well above the industry standard requirements.
REACH COOLING 16-12588 Specifications
Product Attributes
| Overall Motor Length | 5.45 IN |
| Overall Motor Length | 138.5 MM |
| Wheel | W/ Wheel |
| Shaft Shape | Round |
| Shaft Diameter | 8.128 MM |
| Motor Diameter | 2.76 IN |
| Motor Diameter | 70.104 MM |
| Material | Plastic |
| Terminal Quantity | 2 |
| Wheel Diameter | 138 MM |
| Shaft Diameter | 0.32 IN |
| Motor Length | 87.12 MM |
| Vented | Non-Vented (No holes) |
| Mounting Method | OE Mount |
| Rotation | Clockwise (Right) |
| Connector Qty | 1 |
| Voltage | 12V |
| Wheel Height | 2.91 IN |
| Connector Gender | Male |
| Wheel Diameter | 5.43 IN |
| Motor Length | 3.43 IN |
| Flanged End | YES |
| Blower Wheel Mount Type | Set Screw |
| Vent Tube | NO |
| Motor Type | Brushed |
| Terminal Type | Flat Spade |
| Wheel Height | 74 MM |
| Flanged | YES |
| Connector Quantity | 1 |
| Terminal Gender | Male plug |
| Connector Type | 2 Terminal Connector |
| Cage Wheel Included | Yes |
REACH COOLING 16-12588 Cross References
REACH COOLING 16-12588 Fits Vehicles
- Honda Prelude (1992-1996)
- Honda Odyssey (1995-2004)
- Honda Insight (2000-2006)
- Honda CR-V (1997-2001)
- Honda Civic del Sol (1993-1997)
- Honda Civic (1992-2000)
- Honda Accord (1994-1997)
- Dodge Durango (2001-2008)
- Chrysler Aspen (2007-2008)
- Acura Integra (1994-2001)
- Acura CL (1997-1999)
REACH COOLING 16-12588 Customer Reviews
No reviews yet
Be the first to review this product!
REACH COOLING 16-12588 Manufacturer Information
Founded in 1999, Reach Cooling® is a worldwide leader in the manufacture and distribution of aftermarket cooling products for light, medium, and heavy duty truck applications. Its fasting-growing division is within its medium and heavy duty truck part sector, offering more than 30 HD condensers, more than 50 HD charge air coolers, and more than 100 HD radiators. All these products are manufactured to meet the highest OE standards to fit some of the most popular US truck makes, including Peterbilt, Mack, International, Isuzu, GMC, Ford, and Freightliner. Headquartered in Miami, Florida, Reach Cooling is fully committed to providing customers with only the best products, most competitive prices, and exceptional service.
