RAYBESTOS 96811 Part Description
Manufacturer
Product Description

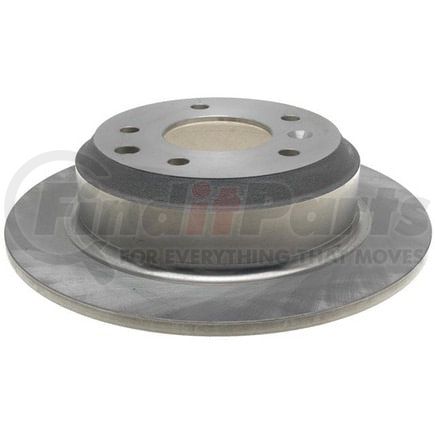

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 96811 Specifications
Product Attributes
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.904 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.346 IN |
| Mounting Bolt Hole Circle Diameter | 4.75 IN |
| Mounting Bolt Hole Diameter | 0.524 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.384 IN |
| Outside Diameter | 11.59 IN |
| Overall Height | 2.67 IN |
| Center Hole Diameter | 73.75 MM |
| Discard Thickness | 8.8 MM |
| Mounting Bolt Hole Circle Diameter | 120.65 MM |
| Mounting Bolt Hole Diameter | 13.3 MM |
| Nominal Thickness | 9.75 MM |
| Outside Diameter | 294.4 MM |
| Overall Height | 67.8 MM |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730238999 |
RAYBESTOS 96811 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 410319 |
| Advance Auto Parts | 145161, YH145161, YH145161C |
| American Remanufactured | 789-70009, 89-70009 |
| AutoZone | 34051, 34051DG |
| Autopart International | 52412 |
| Autospecialty | EBR438, EBR438E |
| BREMBO | 08569810 |
| Beck/Arnley | 083-2511 |
| Bendix | 145161 |
| Bosch | 31010848 |
| BrakeBest | 31010848, 96811, 96811R, 96811RGS, BD125076 |
| Brembo | 08.5698.10, 25169 |
| CENTRIC | 121.20010 |
| California Drum & Rotor | 125076 |
| Centric Parts | 120.20010, 121.20010, 125.20010, 126.20010SL, 126.20010SR, 127.20010L, 127.20010R |
| Delphi | RB546 |
| Dura Corp | BR34051 |
| DuraGo | BR34051 |
| Eurorotor | JA157 |
| GREN | 450601 |
| Jaguar | JLM10601, JLM1830 |
| Mighty Distributing System | 34051 |
| N/A | JLM10601, JLM1830 |
| Newtek Automotive USA | 34051 |
| PRONTO | BR34051 |
| Qualis | 34051, 34134 |
| Qualitee International | 64-33-070 |
| Quinton Hazell | BDC3829 |
| Standard Rotors and Drums | 34051 |
| TRW | 1805 |
| TruStar | 433070, R33070 |
| UAP | 34051 |
| Universal | 127249 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50851 |
| WAGNER | BD125076 |
| WORLDPAC | 1427-719826 |
| Wagner Brake | BD125076 |
| Winhere | YH2240 |
