RAYBESTOS 96122 Part Description
Manufacturer
Product Description

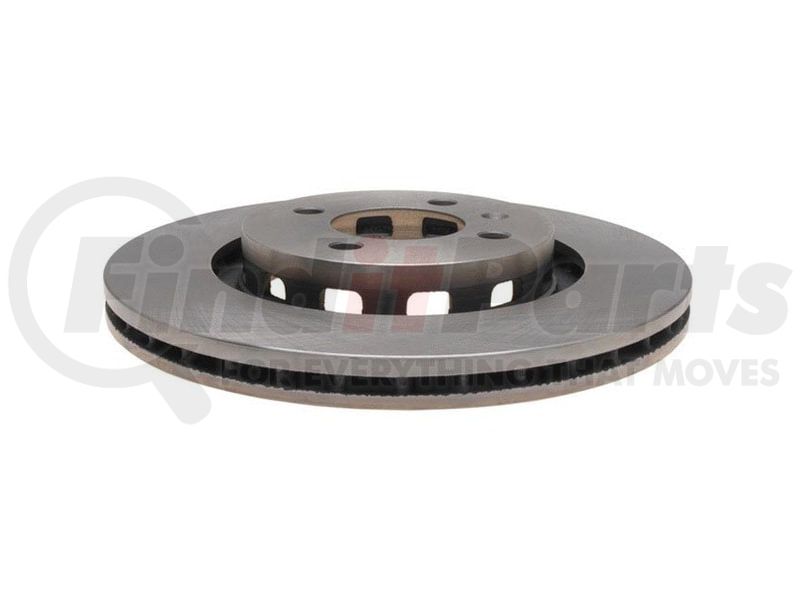

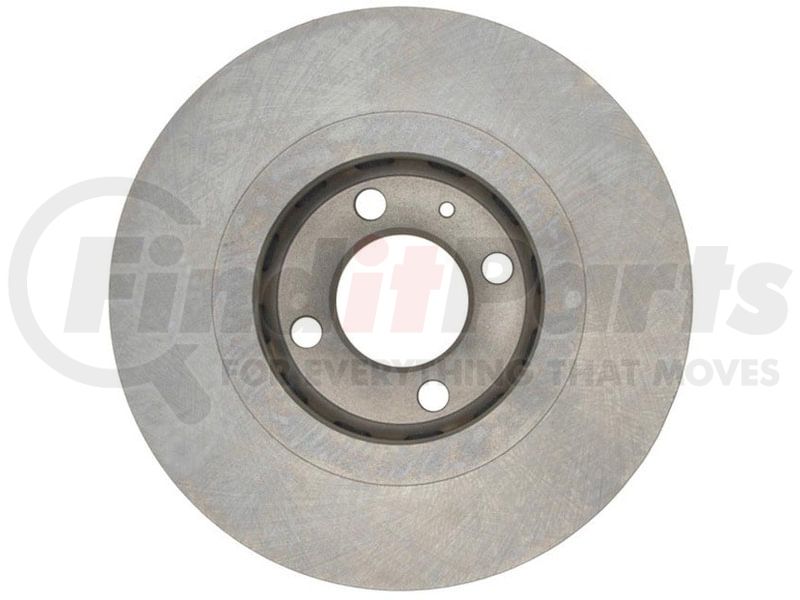

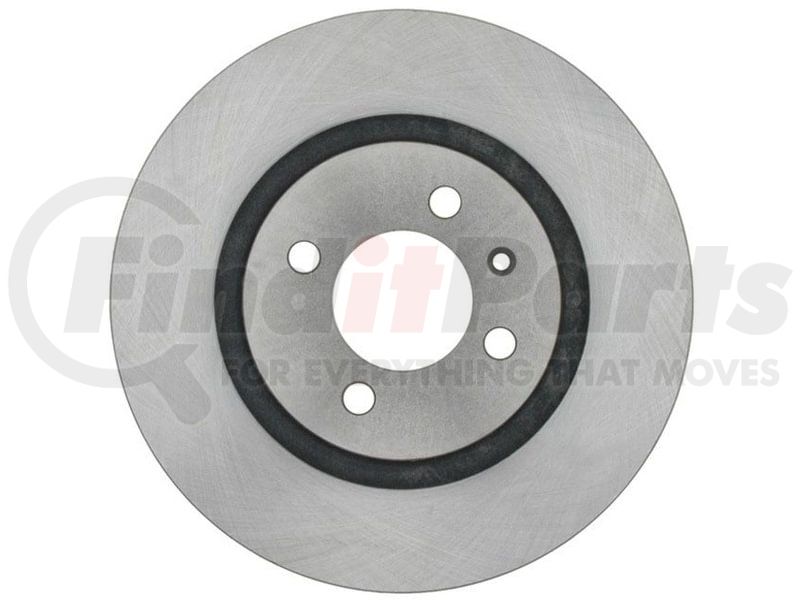

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 96122 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.56 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.787 IN |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.86 IN |
| Outside Diameter | 11.02 IN |
| Overall Height | 1.54 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 65 MM |
| Discard Thickness | 20 MM |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 100 MM |
| Nominal Thickness | 21.85 MM |
| Outside Diameter | 279.9 MM |
| Overall Height | 39.1 MM |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999234681 |
RAYBESTOS 96122 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 422101 |
| Advance Auto Parts | 141564, YH141564 |
| Altrom Imports | 535615301 |
| American Remanufactured | 789-96022, 89-96022 |
| AutoZone | 3482, 3482DG |
| Autopart International | 61230 |
| Autospecialty | EBR404, EBR404E |
| Autoxtra | 61995, AX3482 |
| Beck/Arnley | 080-2389, 083-2389 |
| Bendix | 141564 |
| Bosch | 53011393 |
| Brake Headquarters | BR03059 |
| BrakeBest | 53011393, 96122, 96122R, 96122RGS, 56128RGS |
| Brembo | 09.6728.10, 25431 |
| CENTRIC | 320.33028F, 121.33028 |
| California Drum & Rotor | 61995 |
| Casting Numbers | 325774 |
| Centric Parts | 120.33028, 121.33028, 126.33028CSL, 126.33028CSR, 126.33028SL, 126.33028SR, 127.33028CL, 127.33028CR, 127.33028L, 127.33028R, 128.33028L, 128.33028R, 320.33028F |
| Century | 9461 |
| Delphi | RB41 |
| Dura Corp | BR3482 |
| DuraGo | BR3482 |
| EIS Brakes | D17711 |
| Eurorotor | VW247 |
| GREN | 420602 |
| ITM Engine Components | 1603307 |
| Interbrakes | VW261V |
| Midas | BR1700 |
| Mighty Distributing System | 3482 |
| Newtek Automotive USA | 3482 |
| PRONTO | BR3482 |
| Qualis | 3482 |
| Qualitee International | 64-16-140 |
| Quality Brand | Q570 |
| Quinton Hazell | BDC3783 |
| Roadmates | 526200 |
| Rockhill | 3482 |
| TRW | 2631 |
| TruStar | 416140, R16140 |
| UAP | 3482 |
| Universal | 117820 |
| VAICO | V1080047 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50750 |
| Volkswagen | 535615301 |
| Wagner Brake | BD61995 |
| Winhere | YH2374 |
