(888) 312-8812 Login SignupCENTRIC 121.33028 C-Tek Standard Brake Rotor
Tap to view 4 more
$43.22
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 121.33028 Part Description
Manufacturer
Product Description

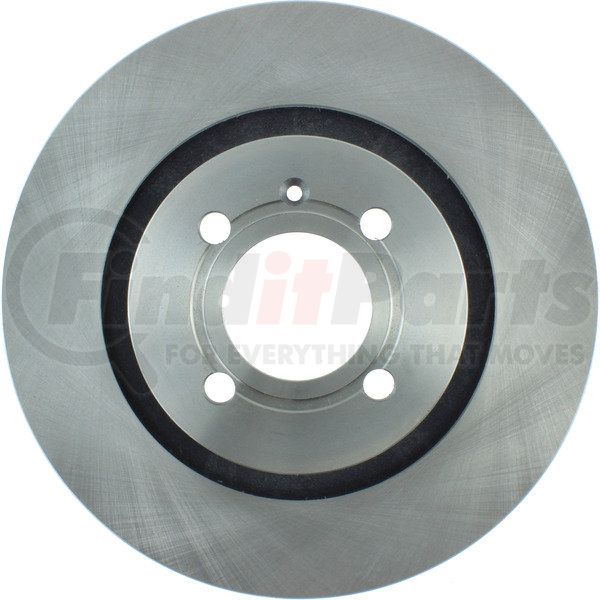

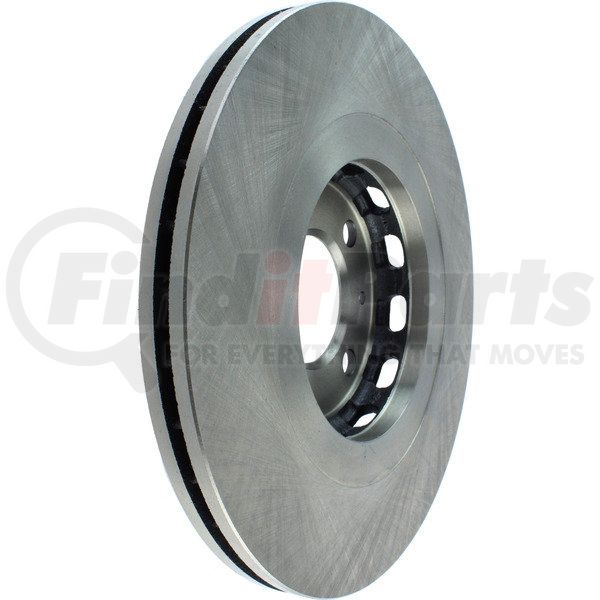

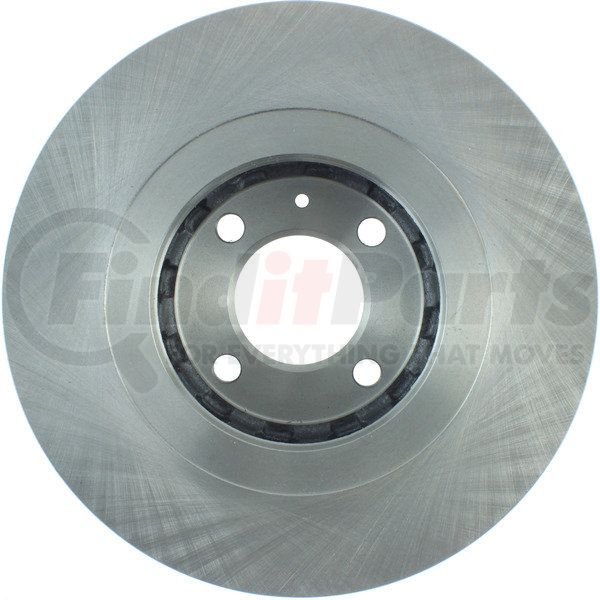

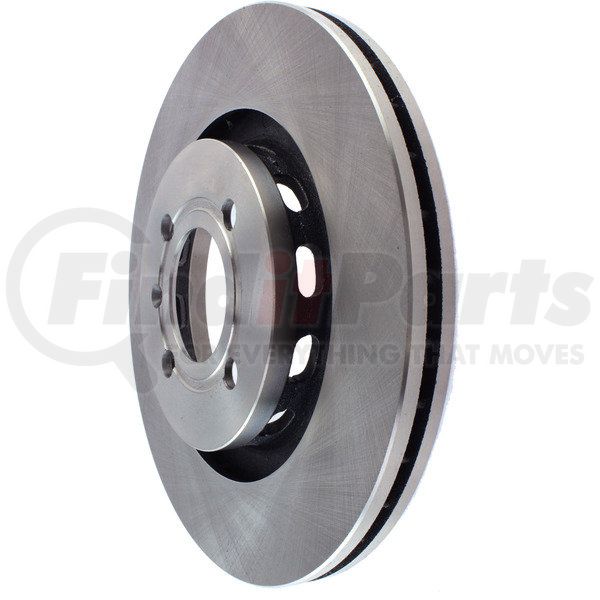

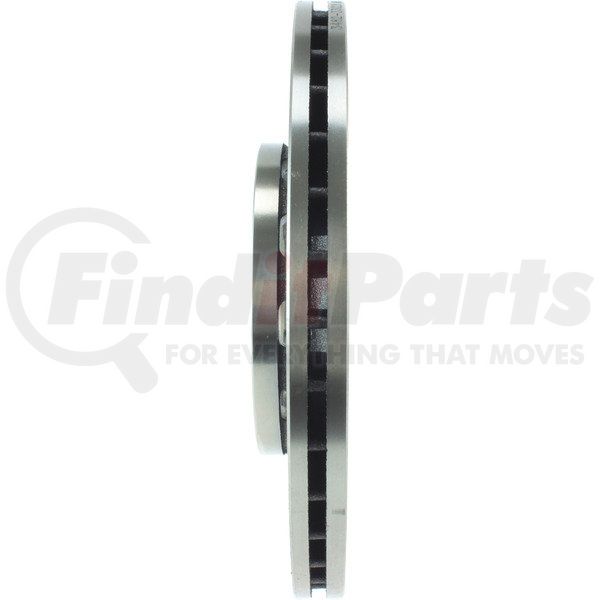

C-Tek Standard Brake Rotor
Features & Benefits
- Non-Directional Finishes. Machined non-friction surfaces. Widest application coverage in the aftermarket
- For heat capacity and strength
- OE Vane Design & Plate Thickness
- Optimal Surface Finish
- For consistent stopping power
- Low Initial Lateral Run-Out and Disc-Thickness Variation
- For smooth, vibration free stopping
- Precision Balanced
- For vibration free performance
CENTRIC 121.33028 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 12.640 |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 5.750 |
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Standard |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 20.000 MM |
| Discard Thickness | 0.787 IN |
| Nominal Thickness | 0.866 IN |
| Nominal Thickness | 22.000 MM |
| Overall Height | 1.543 IN |
| Overall Height | 39.200 MM |
| Outside Diameter | 280.000 MM |
| Outside Diameter | 11.024 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.559 IN |
| Center Hole Diameter | 65.000 MM |
| Mounting Bolt Hole Circle Diameter | 100.000 MM |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 0.541 IN |
| Stud/Lug Hole Diameter | 13.750 MM |
| Hat Finish | Bare |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708300050 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890075271 |
CENTRIC 121.33028 Cross References
| Brand | Part Number |
|---|---|
| 96122, BD61995 | |
| MAGMA PRODUCTS | PMR583023 |
| N/A | BD61995, 0832389, 3482, BR3482, 64 16 140, 6416140, 3482G, 535615301, 117820, PRT1564, 141564, 4886122, 86122, 333, EBR404, EBR404E, D17711, 1581924, 1.5819.2.4, VW261V, X50750, 25431, BR1700, 96122, 96122R, DDF339, 78996022, 8996022, 142741, 60074008, 600.1601.00 |
| PRONTO | BR3482 |
| RAYBESTOS | 96122, 96122R |
CENTRIC 121.33028 Fits Vehicles
- Volkswagen Corrado (1990-1991)
- Volkswagen Passat (1991-1993)
