(888) 312-8812 Login SignupRAYBESTOS 96013 Raybestos Specialty - Truck Brake Rotor
Tap to view 5 more
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96013 Part Description
Manufacturer
Product Description

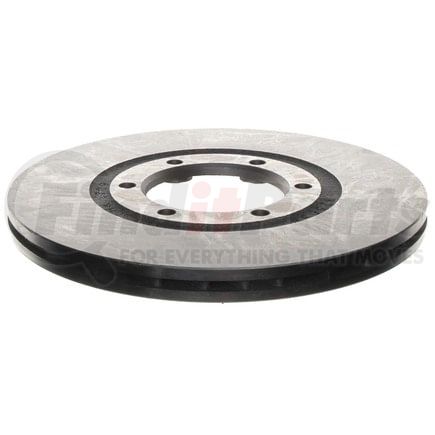

Raybestos Specialty - Truck Brake Rotor
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
Raybestos Specialty - Truck Brake Rotor
RAYBESTOS 96013 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.388 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.709 IN |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Diameter | 4.25 IN |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.785 IN |
| Outside Diameter | 10.08 IN |
| Overall Height | 0.785 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 6 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 86.05 MM |
| Discard Thickness | 18 MM |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 107.95 MM |
| Nominal Thickness | 19.95 MM |
| Outside Diameter | 256.05 MM |
| Overall Height | 19.95 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999233677 |
RAYBESTOS 96013 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 141438, YH141438, YH141438C |
| American Remanufactured | 789-14017, 89-14017 |
| AutoZone | 3140, 3140DG, DL3140 |
| Autopart International | 78870 |
| Autospecialty | JBR316, JBR316E |
| Autoxtra | 60820, AX3140 |
| Beck/Arnley | 080-2159, 083-2159 |
| Bendix | 141438 |
| Bosch | 34010883 |
| Brake Headquarters | BR08279 |
| Brake Pro | 4619083 |
| BrakeBest | 34010883, 81-60820, 96013, 96013R, 96013RGS, BD60820 |
| Brembo | 09.5957.10, 25422 |
| CENTRIC | 320.45017F, 121.45017 |
| California Drum & Rotor | 60820 |
| Casting Numbers | 210472-C, 211541-DP, 31401, 325058, 6859 |
| Centric Parts | 120.45017, 121.45017, 126.45017CSL, 126.45017CSR, 126.45017SL, 126.45017SR, 127.45017L, 127.45017R, 320.45017F |
| Century | 9083 |
| Dayton Walther | D7947 |
| Delphi | RB631 |
| Dura Corp | BR3140 |
| DuraGo | BR3140 |
| EIS Brakes | D17326 |
| Eurorotor | MA824 |
| Fade Free | 60820 |
| GREN | 50202 |
| Girling | GR698 |
| Guardian | 52-60820 |
| Gunite | G16038 |
| Hollander | 58082 |
| ITM Engine Components | 1601119 |
| Interbrakes | MZ401V |
| Mazda | S08333251, S08333251B, UB3933251, UB3933251A |
| Midas | BR1507 |
| Mighty Distributing System | 3140 |
| NAPA BRAKES | TSR7580, TSR760 |
| Newtek Automotive USA | 3140 |
| PRONTO | BR3140 |
| Parts Master | P60820 |
| Promax | 14-3140 |
| Qualis | 3140 |
| Qualitee International | 64-74-250 |
| Quality Brand | 3140 |
| Quinton Hazell | BDC3747 |
| Roadmates | 526572 |
| Rockhill | 3140 |
| Standard Rotors and Drums | 3140 |
| TRW | 1422, DF1422S, DF4898S |
| TruStar | 474250, R74250 |
| UAP | 3140 |
| Ultra Brake | MA-824 |
| Universal | 112400 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50417 |
| Vera | 3404460 |
| WAGNER | BD60820 |
| Wagner Brake | BD60820, SB96013 |
| Winhere | 442358, YH2358 |
