RAYBESTOS 7048 Part Description
Manufacturer
Product Description

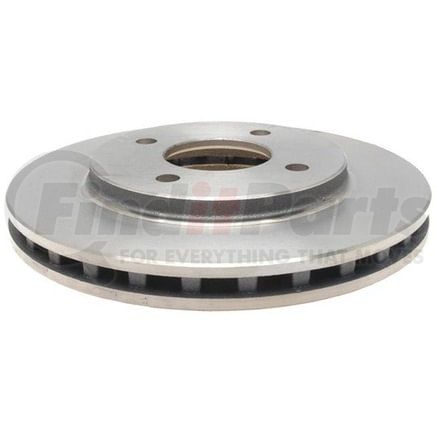

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 7048 Specifications
Product Attributes
| Stud/Lug Hole Quantity | 4 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 2.404 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.882 IN |
| Mounting Bolt Hole Circle Diameter | 3.937 IN |
| Mounting Bolt Hole Diameter | 3.937 IN |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.945 IN |
| Outside Diameter | 9.415 IN |
| Overall Height | 1.506 IN |
| Solid Or Vented Type Rotor | Solid |
| Center Hole Diameter | 61.05 MM |
| Discard Thickness | 22.4 MM |
| Mounting Bolt Hole Circle Diameter | 100 MM |
| Mounting Bolt Hole Diameter | 100 MM |
| Nominal Thickness | 24 MM |
| Outside Diameter | 239.15 MM |
| Overall Height | 38.25 MM |
Additional Information
| Country of Origin (Primary) | CA |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999096593 |
RAYBESTOS 7048 Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 177-619 |
| AutoZone | 5322, DL5325 |
| Autospecialty | AR8312 |
| Autoxtra | 807048 |
| Brake Headquarters | BR53220 |
| Brake Pro | 4617048 |
| BrakeBest | 7048, 7048R, 7048RGS |
| CENTRIC | 121.63014 |
| Casting Numbers | 325147, 4677, 53221, 637048 |
| Century | 7048 |
| Certified Division | HR136 |
| Chrysler | 04126695, 04126947, 4126695, 4126947 |
| Dayton Walther | D5022 |
| Dura Corp | BR5322 |
| EIS Brakes | D17048 |
| Eurorotor | 5322 |
| Fade Free | 60548 |
| Firestone | 5207-887-3, 60549 |
| GREN | 600702 |
| Guardian | 52-60548 |
| Hollander | 1160 |
| Kelsey Hayes | 14642 |
| MCI | 5002 |
| Maremont | 7937048 |
| Midas | BR1085 |
| Mighty Distributing System | 5322 |
| Newtek Automotive USA | 5322 |
| Praefke | 141202 |
| Qualis | 5322 |
| Quality Brand | 5322 |
| Roadmates | 526019 |
| Rockhill | 5322 |
| Sears | 1734 |
| Standard Rotors and Drums | 5322 |
| Universal | 103220 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50239 |
| Varga Brakes | RCDI00124 |
| Wagner Brake | BD60548 |
| Winhere | YH2152 |
