MOOG 14E003R Part Description
Manufacturer
Product Description
CV Axle Assembly
Features & Benefits
- KEEPS DIRT & MOISTURE OUT -- Durable neoprene boot keeps water and dirt out to help prevent premature failure
- ADDED RUST PROTECTION -- Specially engineered coating applied to intermediate shaft and inboard and outboard housings to inhibit premature wear caused by rain, snow, salt and road grime
- BUILT TO LAST -- Heat-treated bearings, races and housings for optimal joint function, articulation and geometry
- PRECISE FIT -- Splines ensure precise fit of the axle into the mating hub
- EVERYTHING FOR THE REPAIR -- Comes with axle nut and inboard bolts (where required)

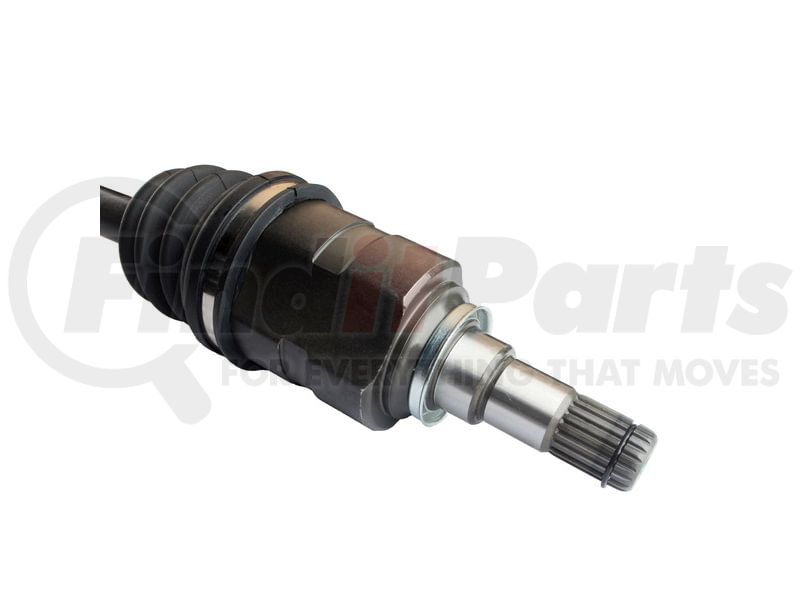

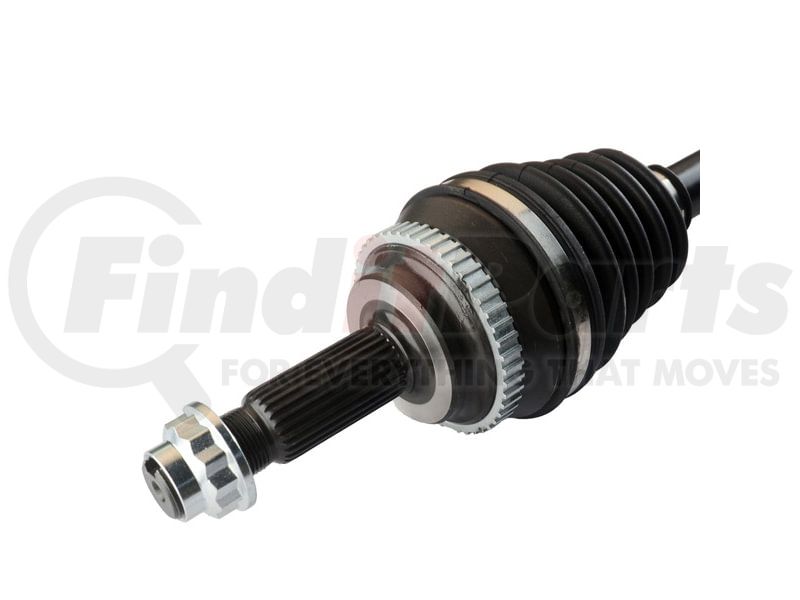

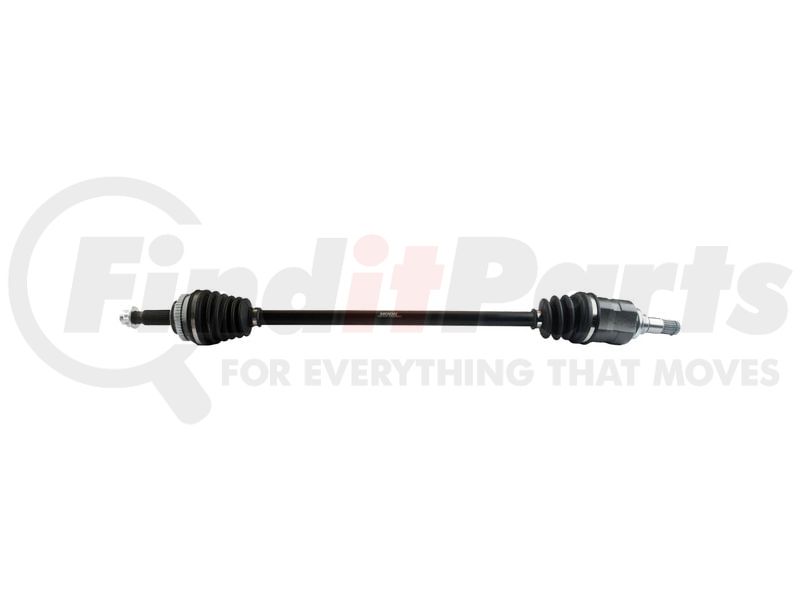

MOOG 14E003R CV Axle Assembly
MOOG 14E003R Specifications
Product Attributes
| Compressed Length | 36.34 IN |
| Inboard Spline Quantity | 20 |
| Outboard Spline Quantity | 26 |
| Axle Nut Included | Yes |
| Inboard Joint Type | Male |
| Outboard Joint Type | Conventional |
| ABS Tone Ring Included | Yes |
| Axle Nut Socket Size | 30 MM |
| Axle Nut Type | Hex |
| Axle Nut Thread Size | M22*1.5 |
| Inboard Boot Material | Neoprene |
| Outboard Boot Material | Neoprene |
| Axle Nut Thread Size | M22*1.5 |
| Compressed Length | 923 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708509990 |
| Harmonized Tariff Code (Schedule B) | 8708700050 |
| Harmonized Tariff Code (HTS) | 8708508500 |
| UPC | 00080066727509 |
MOOG 14E003R Cross References
MOOG 14E003R Fits Vehicles
- Toyota Matrix (2003-2013)
- Toyota Corolla (2003-2018)
- Pontiac Vibe (2009-2010)
