PETERSON LIGHTING part description

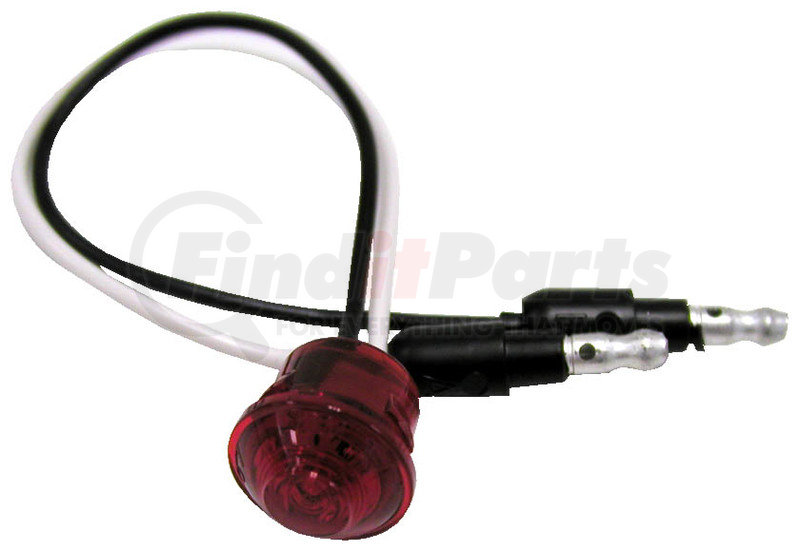

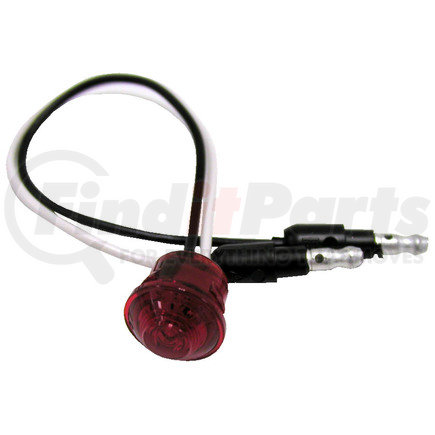

177 Series Piranha® LED 3/4" Clearance/Side Marker Light

Peterson Lighting Piranha® LED 3/4" Clearance/Side Marker Light

The Peterson Lighting Piranha® LED 3/4" clearance/side marker light offers improved trucking safety as it alerts other road users of your vehicle’s location, position, and dimension in poor visibility situations. It is also a perfect way to add a unique style to your rig while keeping it safe on the road.

Features & Benefits

  • A 1-diode LED clearance light
  • With 8” leads and a hardwired design to prevent lamp-plug failures and resist corrosion
  • Comes with grommet that easily fits 3/4" hole
  • Product’s operating range is 8 to 16 volts
  • Designed to meet Federal requirements for clearance, side marker, and ID lights
  • Manufactured to meet the highest quality and safety standards

Product Description


Features & Benefits

  • 1 diode.
  • Made in USA.
  • Hardwired design.
  • PC Rated.
  • Functions as clearance and side marker light when properly installed.
  • Compatible with all 12 volt systems.
  • 8" (200 mm) hardwired leads available stripped, with .180 bullets, or AMP-style connector.
  • Does not require top mounting.
  • Includes rubber mounting grommet.

B177-18: grommet (mfg. pack - std qty 100)

Product Attributes

Bulb Technology LED
Bulb/diode Count 1
California Proposition 65 Required Y
Container Type bulk pack

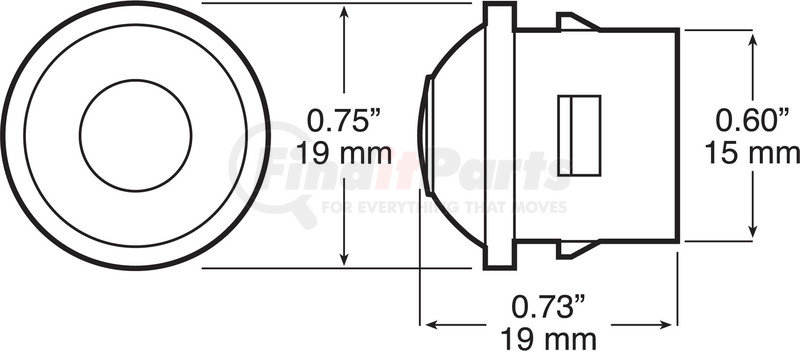

Diameter 0.75 IN
Family PM
Height 0.75 in
Integral Reflex N
Length 0.75 in
Lens Color red
Light Color red
Marine Use Y
Maximum Voltage 16 Volts
Minimum Voltage 9 Volts
Mounting Type grommet
Multi-volt N
Pc Rated Y
Regulatory Compliance DOT
Shape 3/4-inch round
Termination .180 bullet
Voltage 9 Volts
Width 0.82 in

Additional Information

Country of Origin (Primary) US
Harmonized Tariff Code (Schedule B) 8512202000
UPC 00044464982007
VMRS Code 034004462


We have 2 alternatives for the M177R-BT2 by PETERSON LIGHTING:

Peterson Lighting® is a family-owned company that produces and distributes vehicle safety lighting systems mirrors, and other related safety products and accessories. It has been in the business for 75 years, and currently, it offers over 2,200 products designed for various applications, including tilt-bed and cargo vehicles and light- and medium-duty trailers. Peterson Lighting believes that full commitment to quality is its responsibility as a market leader. All its components are designed and manufactured only in its ISO 9001/QS-9000-certified facility in Grandview, MO. This facility is handled by knowledgeable and highly skilled specialists, who are as dedicated and passionate as the company when it comes to quality.
