(888) 312-8812 Login SignupHELLA 933791081 Wiring Relay
Tap to view 2 more
$1299
45 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
HELLA 933791081 Part Description
Manufacturer
Product Description

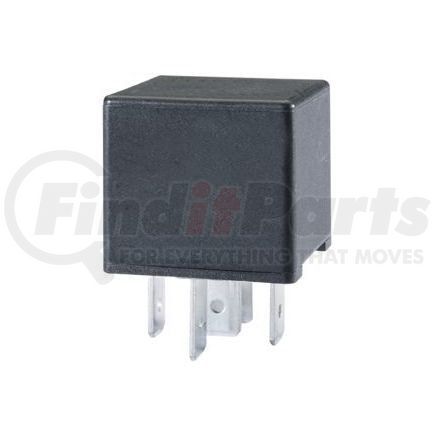

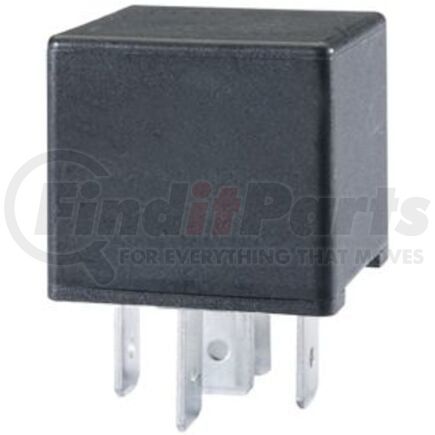

HELLA Wiring Relay 933791081
Features & Benefits
- Provides consistent switching of high-current circuits for reliable electrical system operation in vehicles.
- Ensures dependable performance in extreme environments with an operating temperature range suitable for demanding conditions.
- Minimizes electromagnetic interference in sensitive systems with integrated resistor or diode suppression protection.
- Simplifies installation and replacement tasks with a standardized pin connectors designed for multiple automotive functions.
- Offers universal compatibility, ensuring seamless integration with most modern vehicles' electrical systems.
HELLA 933791081 Specifications
Product Attributes
| Ohmic Load [a] | 30 |
| Assy./disassy. By Qualified Personnel Required! | . |
| Capacitive Load [a] | 5 |
| Inductive Load [a] | 5 |
| Voltage [V] | 24 |

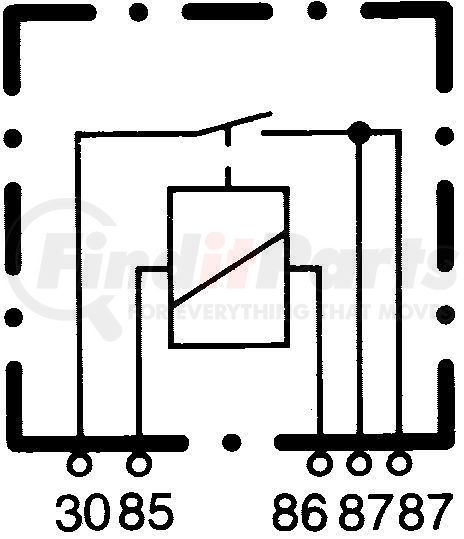

| Combi Switch Function | Normally Open Contact |
| Rated Current [a] | 20 |
| Temperature Range To [°c] | 125 |

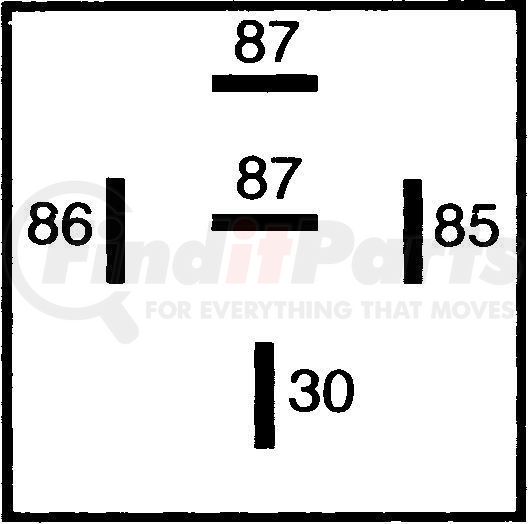

| Number of Pins | 5 |
| Temperature Range From [°c] | -40 |
| California Proposition 65 Required | No |
| Voltage [VDC] | 24 |
| Temperature range to [°F] | 257 |
| Assy/Disassy by Qualified Personnel Required! | . |
| Temperature range from [°F] | -40 |
| Voltage | 24.00 2H |
| Continuous Duty | Yes |
| Terminal Type | Blade |
| Terminal Quantity | 5 |
| Connector Gender | Male |
| Terminal Gender | Male |
| Cover Material | Plastic |
| Amperage Rating | 30.00 68 |
| Mounting Bracket Included | No |
Additional Information
| Harmonized Tariff Code (HTS) | 8536410050 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| UPC | 04082300279221 |
HELLA 933791081 Cross References
| Brand | Part Number |
|---|---|
| Bosch | 0 332 014 213, 0 332 015 008, 0 332 019 213 |
| Caterpillar | 123-6527 |
| N/A | 27586, 580001938, 1455922, 99003510, 152 7511, 152 3982, 5350248630, 1505.521.00, 7.375.112.000, 2 009 656, 50701242, 75613117, B240700000027 |
