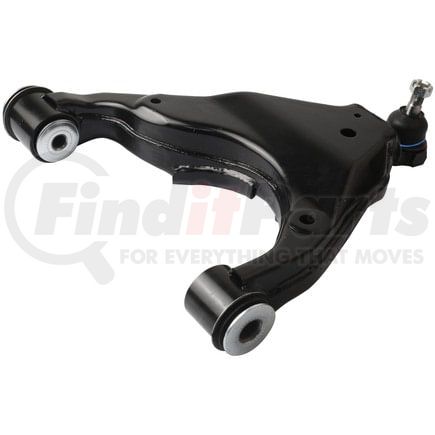

(888) 312-8812 Login SignupDELPHI TC8303 Control Arm and Ball Joint Assembly
Tap to view 27 more
$16649
Limited availability at this price!
In Stock
Get it by Wednesday, Jan 14
DELPHI TC8303 Part Description
Control Arm and Ball Joint Assembly
DELPHI TC8303 Specifications
Product Attributes
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Dust Boot Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Ball Joint Included | Yes |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Mounting Hole Quantity | 2 |
| Boot Material | Chloroprene Rubber (CR) |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 449.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 75.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 21.20 MM |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Distance Between Bushings | 287.00 MM |
| Bushing Inside Diameter | 21.20 MM |
| Bushing Length | 72.00 MM |
| Position(s) | Front Right Lower |
| Control Arm Maximum Width | 17.677 IN |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Stud Length | 2.953 IN |
| Mounting Hole Diameter | 0.835 IN |
| Distance Between Bushings | 11.299 IN |
| Bushing Inside Diameter | 0.835 IN |
| Bushing Length | 2.835 IN |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604394311 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC8303 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 1028345, RK623321, CMS861083, 48068-60040 |
DELPHI TC8303 Fits Vehicles
- Toyota 4Runner (2010-2023)
- Toyota FJ Cruiser (2009-2014)
