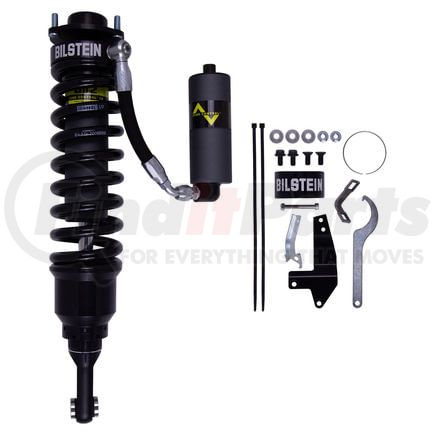

Bilstein 41-324165 - SUSPENSION SHOCK ABSORBER AND COIL
$1,48199
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
BILSTEIN part description
SUSPENSION SHOCK ABSORBER AND COIL
Product Description
B8 8112 (ZoneControl CR) - Front Right Corner Module
Application Summary
Lexus GX460 2023-2010, Toyota 4Runner 2024-2010
Features & Benefits
- ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
- Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
- 60mm remote reservoir for increased oil capacity and cooling
Product Attributes
| Optional Heavy Load Springs | 53-291387, 53-332837 |
| Title | Bilstein Shock Absorbers |
| RESERVOIR | Yes |
| Collapsed Length (mm) | 456.9 |
| Adjustable Damping | Non-Adjustable |
| Collapsed Length (in) | 17.99 |
| Parttype | Shocks / Struts |
| Extended Length (in) | 22.80 |
| Prop 65 (Y/N) | Y |
| Spring Seat Included | Yes |
| Series | B8 8112 (ZoneControl CR) |
| Extended Length (mm) | 579.1 |
| Upper Mount Type | Special |
| Internal Design | Monotube |
| Body Diameter (id) | 60mm |
| Segment | Light Truck |
| Body Material | Steel |
| Boot Included | No |
| Body Design | Smooth Body (Coilover) |
| Lower Mount Type | Eye 14.1mm |
| Finish | Dampers: EVO Grey / Springs: Black |
Additional Information
| Remanufactured Part | N |
| Refurbished Part | N |
| Warranty Time | 24 |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| MSDS Sheet Number | USA SDS_Shock_Air Spring_V2_EN.pdf |
| UPC | 00651860915753 |
Part Interchanges
About BILSTEIN Of America Founded in 1873, BILSTEIN is a world leading manufacturer of monotube gas pressure shock absorbers. With their main headquarters located in Germany, BILSTEIN is an original equipment supplier to BMW, Jaguar, Mercedes-Benz, Porsche, GM, Chrysler, Ford, Toyota and many others. Today, BILSTEIN Aftermarket and Motorsports has grown to nearly 630 employees located in three locations around the United States and distributes more than 3,500 part numbers into the U.S. aftermarket. BILSTEIN operates within ThyssenKrupp Component Technologies Group.Fits Vehicles
- Lexus GX460 (2010-2023)
- Toyota 4Runner (2010-2024)
