ICON 91836E Part Description
Manufacturer
Product Description

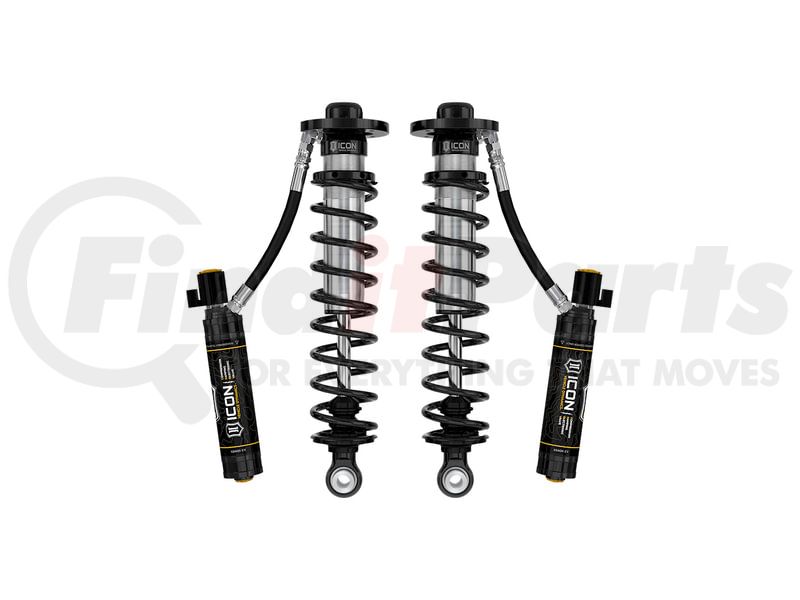

22-23 FORD F150 LIGHTNING LOWERED REAR 2.5 VS RR CDEV COILOVER KIT
Features & Benefits
- Height-adjustable coilovers offer 0-4" of lowered height adjustment
- Vehicle specific tuned front shocks for superior shock damping and vehicle control
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- Remote reservoir to maintain cooler operating temperatures and house CDE Valves
- Increased compression travel compared to stock
- ICON engineered coil springs with optimized spring rates for improved ride quality
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
- FK Rod End bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- 100% Bolt-on - no cutting or welding necessary for installation
OEM Wheels & Tires Fitment: Yes
22-23FORDF150LIGHTNINGLOWEREDREAR2.
ICON 91836E Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Active |
| Add-on Part | 198000 - 2 PIN COILOVER SPANNER WRENCH KIT |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 in |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 14.39 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Electronic |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.26 IN |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Maximum Drop | 2 IN |
| Maximum Ride Height Lowering Distance | 4 IN |
| Minimum Drop | 0 IN |
| OEM Wheels & Tires Fitment | Yes |
| 10108 | 225 PPI |
| Recommended Aftermarket Tires | 33" x 12.00" (Larger tires may fit but fender trimming and modifications will be required.) |
| Recommended Aftermarket Wheels | 20x9" with 6” Backspace / 25mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |

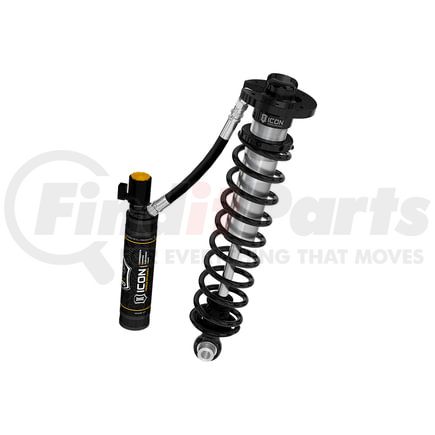

| Title | ICON 2022-2023 Ford F-150 Lightning, Lowered 0-4", 2.5 VS Remote Reservoir CDEV Coilover Kit, Rear |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Additional Information
| Warranty Special | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103423623 |
ICON 91836E Fits Vehicles
- Ford F-150 Lightning (2022-2023)
