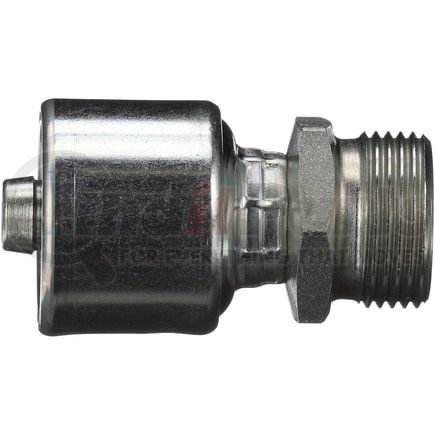

Gates G25615-1022 - Male DIN 24 Cone - Light Series (MegaCrimp)
$5599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Male DIN 24 Cone - Light Series (MegaCrimp)
Features & Benefits
- Robust "bite-the-wire" crimp
- Robust “bite-the-wire” crimp
- Tested to an industry-leading 1 million impulse cycles
- Simplifies inventory management
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance SAE Standard
- Popular thread styles also available with TuffCoat Xtreme plating for 583 percent better corrosion resistance than the SAE standard
Product Attributes
| Outside Diameter | 22 MM |
| Stem Hex Size | 32 MM |
| Cut-Off Length | 1.27 IN |
| Length | 2.75 IN |
| Seal Type | Mated Angle w/O-Ring |
| Termination | DIN |
| O-Ring Location | On Female w/Inverted Nose Seat |
| Seat Angle | 24 |
| DIN Series | Light |
| Gender | Male |
| Bent Tube Angle | Straight |
| Swivel | No |
| Coupling Description | MegaCrimp Male DIN 24 Cone - Light Series |
| Industrial Description | 10G-22MDL |
| Thread Size | M30X2.0 |
| Inside Diameter | .625 IN |
| Hydraulic Hose Recommendation | Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose |
| Inside Diameter | 15.9 MM |
| Cut-Off Length | 32.3 MM |
| Length | 69.8 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| UPC | 00770075349297 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
