GATES 71001 Part Description
Manufacturer
Product Description

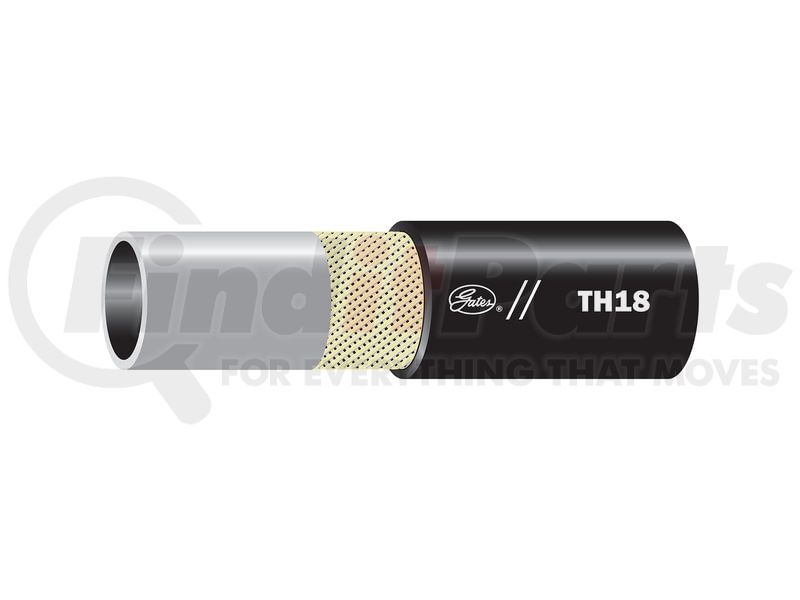

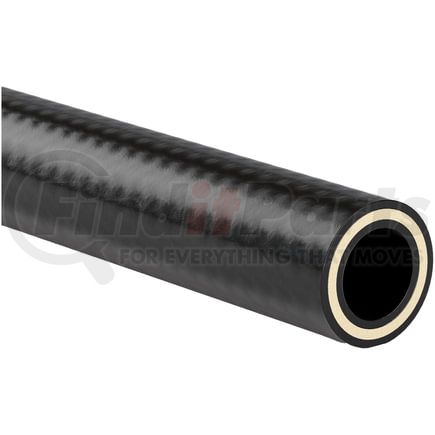

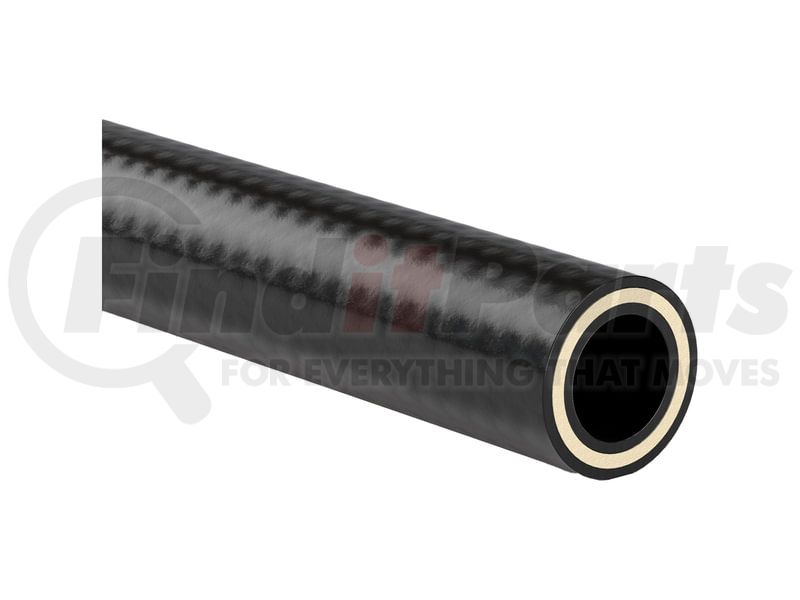

TH18 Constant Pressure Hydraulic Thermoplastic Hose - SAE 100R18
Features & Benefits
- For use with MegaCrimp Couplings [G25 Series]
- Meets or exceeds performance requirements of SAE 100R18 with a significantly tighter bend radius
- Temperature Range: Petroleum and Synthetic Oils: -67 Deg. F to +212 Deg. F (-55 Deg. C to +100 Deg. C); Water-based Fluids: up to +158 Deg. F (+70 Deg. C)
GATES 71001 Specifications
Product Attributes
| Product Type | TH18 Constant Pressure Hydraulic Hose - SAE 100R18 |
| Industrial Description | 4TH18XCTN |
| Type | Thermoplastic Hydraulic Hose |
| Hose Pressure Description | High Pressure |
| Maximum Working Pressure | 3000 PS |
| Burst Pressure | 12000 PS |
| Temperature Rating | -67 Deg. F to +212 Deg. F (Petroleum & Synthetic Oils), to +158 Deg. F (Water-Based Fluids) |
| Length | 250 FT |
| Dash Size | 4 |
| Inside Diameter | .25 IN |
| Outside Diameter | .48 IN |
| Bend Radius | 1.4 IN |
| Tube Description | Polyester Elastomer |
| Hose Material | Polyester Elastomer |
| Reinforcement Material | Synthetic Fiber |
| Cover Material | Urethane - Perforated |
| Cover Type | Weather Resistant |
| Cover Color | Black |
| Coupling Recommendation | MegaCrimp |
| SAE Standard | 100R18 |
| EN Standard | N/A |
| ISO Standard | N/A |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 3917310000 |
| Stock Status | N |
| UPC | 00770075376958 |
| VMRS Code | 059032029 |
| UNSPSC | 40142020 |
GATES 71001 Cross References
| Brand | Part Number |
|---|---|
| N/A | 04030587 |
| NAPA | 71001 |
| Weatherhead | 30CT-04003 |
