ICON 58775E Part Description
Manufacturer
Product Description

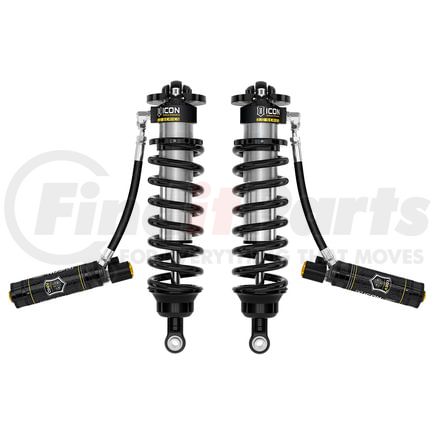

22-25 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDEV COILOVER KIT
Features & Benefits
- 40% increase in front wheel travel over stock
- Adjustable up to 1.25-3.25" of front lift height over stock on Tundra or 3-4.25" of front lift on Sequoia
- Vehicle specific design and tuning for superior shock damping and control
- 3.0” Body diameter for increased oil volume and larger piston area
- ICON’s multi-stage, tunable hydraulic “Bump Zone” exponentially increases bottom-out resistance in the last 40% of compression travel

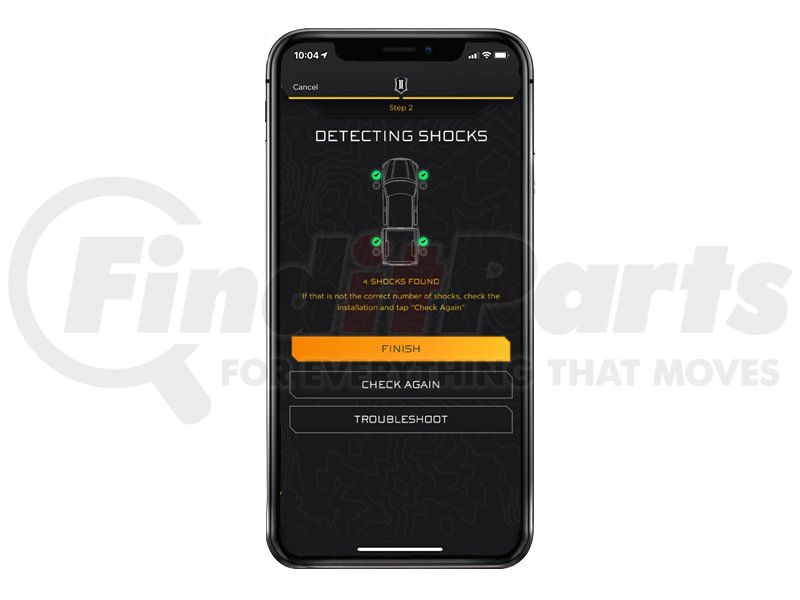

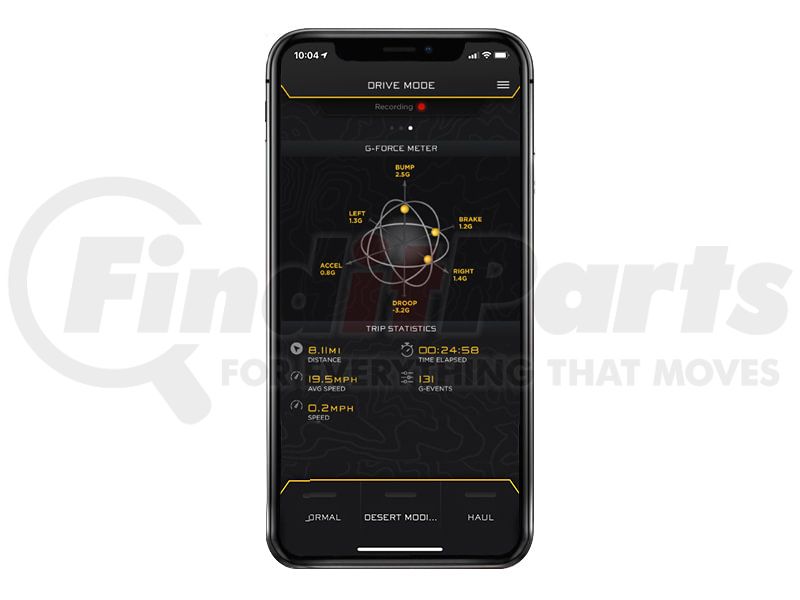

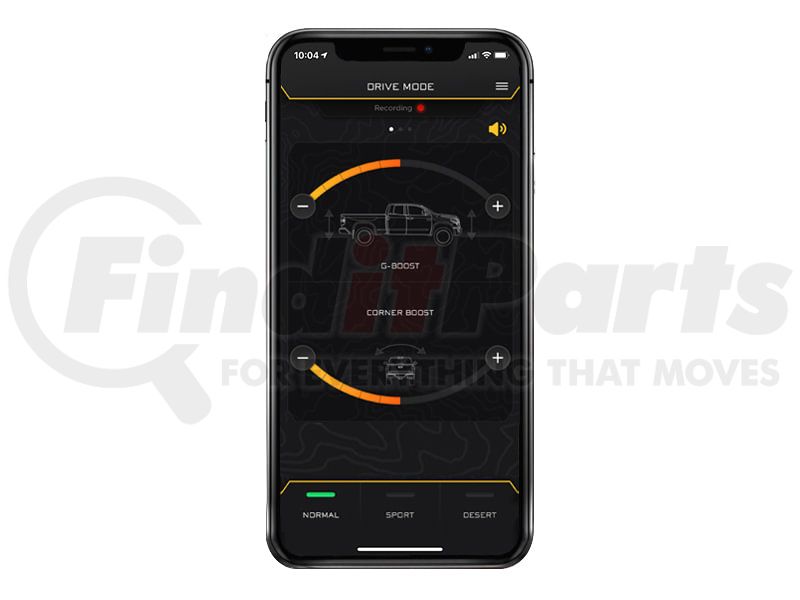

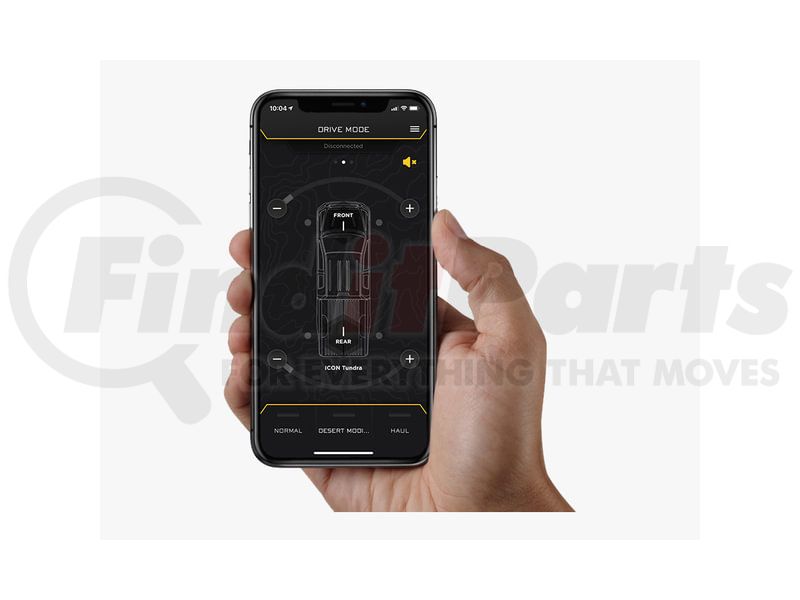

- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- 7/8” diameter induction hardened, chrome plated shock shafts
- Fully Rebuildable and Re-tunable
OEM Wheels & Tires Fitment: Yes
22-23 TUNDRA 3.0 VS RR CDEV COILOVE
ICON 58775E Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Active |
| Add-on Part | 252012 - -4 TO -10 HOSE SHIELD KIT |
| Adjustable Compression | Yes |
| Adjustable Damping | Yes |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 3 in |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 16.38 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Ceramic Coated |
| Cylinder Material | Steel |
| Damping Adjustment Type | Electronic |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.04 IN |
| 10107 | 600 PPI |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Steel |
| Maximum Lift | 3.25 IN |
| Maximum Ride Height Raising Distance | 3.25 IN |
| Minimum Lift | 1.25 IN |
| OEM Wheels & Tires Fitment | Yes |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | Top of Upper Mount Plate |
| Shock Absorber Rod End Measuring Point | Center of Eyelet |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Linear |
| Title | ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift/2023-2025 Sequoia 3-4.25" Lift, V.S. 3.0 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair |
| Travel Length | 5.67 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Additional Information
| Warranty Special | 1 Year-Shocks; Limited Lifetime-Coil Springs |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103421292 |
ICON 58775E Fits Vehicles
- Toyota Sequoia (2023-2025)
- Toyota Tundra (2022-2025)
