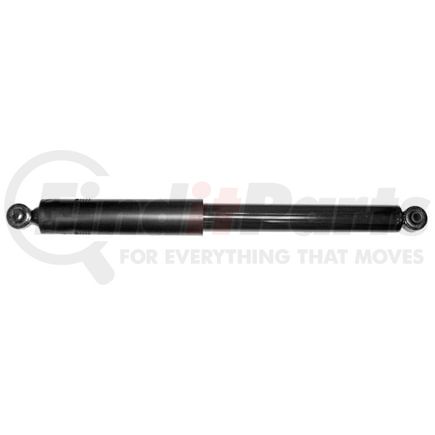

MONROE 911545 Reflex Suspension Shock Absorber

MSRP: $166.39

$98.99

Save $67.40

Limited availability at this price!

In Stock

Get it by Friday, Feb 20
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

MONROE 911545 Part Description

Manufacturer

MONROE

Product Description

Reflex Suspension Shock Absorber

Features & Benefits

  • MAINTAINS VEHICLE CONTROL -- Monotube technology maintains vehicle control over bumps, dips and potholes for vehicles originally equipped with monotube shocks and struts
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • IMPROVED IMPACT ABSORPTION -- Hydraulic lock-out isolates suspension impact and helps maintain vehicle integrity (where applicable)
  • IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
  • CONSISTENT RIDE -- High temperature OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown
  • BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
  • EXCELLENT RESPONSE AND STABILITY -- High-pressure nitrogen charge provides a quicker response for excellent vehicle control
  • BUILT TO LAST -- High-strength shock housing and hardened, chrome-plated piston rod provide durability and longer service life
  • CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • REDUCED SHOCK FADE AND AERATION -- Free floating dividing piston separates shock fluid from high-pressure gas charged to reduce shock fade and aeration
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee

MONROE 911545 Specifications

Product Attributes

Lower Mount Code LS47
Upper Mount Code LS47
Dust Shield Included Yes
Includes Bump Stop No
Internal Rebound Bumper No
Hydraulic Lockout No
Part Description Shock Absorber
Compressed Length 15.67 IN
Dust Shield Material Plastic
Extended Length 21.378 in
Gas Charged Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Parts Pack(s) None
Travel Length 5.708 in
Upper Mount Type Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Compressed Length 398 MM
Extended Length 543 MM
Travel Length 145 MM
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Lower Mount Type Loop (Eyelet) Bushing and Sleeve
Lower Mount Code LS47
Upper Mount Code LS47
Mounting Hardware Included No
Grade Type Premium
Active or Passive Suspension Passive
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No

Additional Information

MSDS Sheet Number 01164
Country of Origin (Primary) MX
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708800050
Harmonized Tariff Code (HTS) 8708801600
UPC 00048598037565
VMRS Code 016008003
UNSPSC 25172011

MONROE 911545 Cross References

BrandPart Number
911545MM, 829352492277
Chevrolet12476113, 12477646, 12477659, 12477738, 15770188, 15770189, 15797190, 15810161, 15903303, 15903323, 15903327, 15905104, 15918521, 15918524, 15918526, 15922867, 15935562, 15935565, 15939373, 19300036, 19300037, 19300038, 19300039, 19300040, 19300070, 20765171, 20765177, 20765184, 20765185, 20765189, 20810264, 20810265, 20810269, 20810270, 20813756, 20823621, 20833673, 20833674, 20833675, 20833778, 20836653, 20955405, 20955406, 20955407, 20955408, 20955409, 20955430, 20955486, 20955487, 20955495, 20955497, 20955498, 20955500, 20955506, 20955513, 20955514, 20958798, 20958799, 22187155, 22187156, 22187157, 22187158, 22811843, 22811844, 22811847, 22811852, 22811853, 22811854, 22811855, 22853793, 25796769, 25821028, 25845438, 25845439, 25845441, 25845442, 25845444, 25845445, 25845446, 25845447, 25870256, 25870890, 25870892, 25870894, 25871206, 25871207, 25871212, 25871215, 25871217, 25871222, 25871225, 25871226, 25871229, 25871230, 25871231, 25871234, 25871236, 25871240, 25876832, 25876834, 25876873, 25876876, 25876878, 25885468, 25888674, 25888675, 25888676, 25888677, 25888678, 25888679, 25888680, 25888681, 25888682, 25888683, 25888684, 25940740, 25980102, 88983816, 88983818, 89040177
GABRIEL77975
GMC12476113, 12477646, 12477659, 12477661, 12477738, 15770188, 15770189, 15903303, 15903323, 15903327, 15905104, 15918521, 15918524, 15918526, 15922867, 15935562, 15935565, 15939373, 19300036, 19300037, 19300038, 19300039, 19300046, 19300047, 19300070, 20765171, 20765177, 20765184, 20765185, 20765189, 20810264, 20810265, 20810269, 20810270, 20813756, 20823621, 20833673, 20833674, 20833675, 20833778, 20836653, 20955405, 20955406, 20955407, 20955408, 20955409, 20955486, 20955487, 20955495, 20955497, 20955498, 20955500, 20955506, 20955513, 20955514, 20958798, 20958799, 22187155, 22187156, 22187157, 22187158, 22811843, 22811844, 22811847, 22811852, 22811853, 22811854, 22811855, 22853793, 25796769, 25821028, 25845438, 25845439, 25845441, 25845442, 25845444, 25845445, 25845446, 25845447, 25870256, 25870890, 25870892, 25870894, 25871206, 25871207, 25871212, 25871215, 25871217, 25871222, 25871225, 25871226, 25871229, 25871230, 25871231, 25871234, 25871236, 25871240, 25871432, 25876832, 25876834, 25876873, 25876876, 25876878, 25885468, 25888674, 25888675, 25888676, 25888677, 25888678, 25888679, 25888680, 25888681, 25888682, 25888683, 25888684, 25940740, 25979392, 25980102, 88983816, 88983818, 89040177, 20955430
General Motors20955430
KYB565125, 345073, 555054
KYB AMERICA LLC.5550009
Monroe Shocks & Struts33233
NAPA Shocks911545

MONROE 911545 Fits Vehicles

  • GMC Yukon (2005-2014)
  • Chevrolet Tahoe (2005-2014)
