(888) 312-8812 Login SignupMONROE 34983 Gas-Magnum Amortiguador
Tap to view 5 more
MSRP: $100.73
$5849
Save $42.24
Limited availability at this price!
In Stock
Get it by Friday, Jul 10

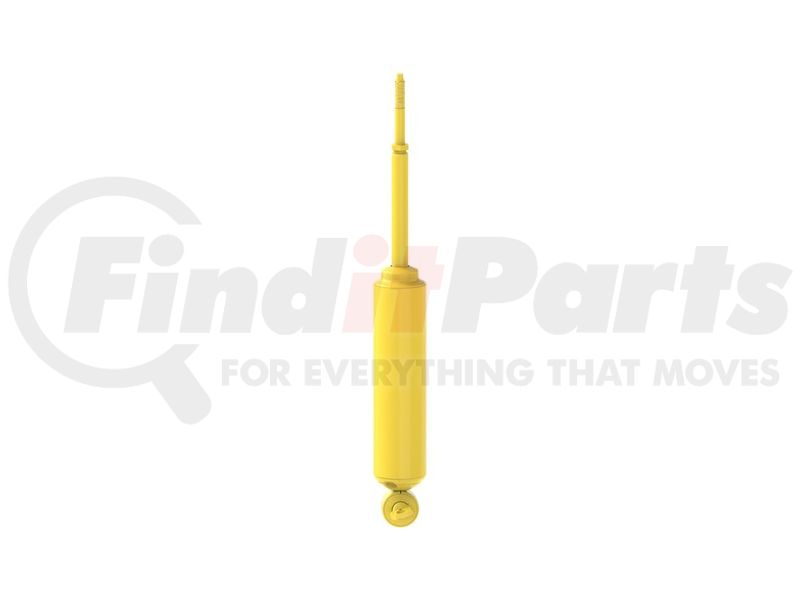

MONROE 34983 Part Description
Manufacturer
Features & Benefits
- DESIGNED FOR TRUCKS AND VANS -- Engineered for hardworking full-size trucks and vans and features full-displaced valving on compression cycles to deliver controlled ride and handling
- BUILT TO LAST -- Heavy-duty nitrocarburized rod (non-dust shield units only) and sintered iron piston enhance durability for longer service life while self-lubricating fluid seal reduces friction against piston rod to reduce wear
- CONSISTENT RIDE -- OE all-weather fluid contains special modifiers to handle extreme temperatures and help reduce friction and ensure smooth rod reaction
- IMPROVES PERFORMANCE -- Nitrogen gas-charge maintains tire-to-road contact for improved ride and handling by reducing aeration and shock fade
- LONGER SERVICE LIFE -- Larger bore and bigger 2-in. reserve tube work together to hold more oil for greater capacity to allow the shock to work efficiently for controlled ride and longer service life
- BUY WITH CONFIDENCE -- Comes with Monroe’s Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
MONROE 34983 Specifications
Product Attributes
| Compressed Length | 9.5 IN |
| Compressed Length | 241.3 MM |
| Extended Length | 13.75 in |
| Extended Length | 349.3 MM |
| Travel Length | 4.25 in |
| Travel Length | 107.9 MM |
| Lower Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.1/2" Pin Length (Hole Center to Center) |
| Lower Mount Type | T-Bar |
| Lower Mount Code | XP5 |
| Upper Mount Type | Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch |
| Upper Mount Code | S4 |
| Shock Absorber Rod End Measuring Point | Base of Stem |
| Shock Absorber Body End Measuring Point | Center of Mounting Hole |
| Gas Charged | Yes |
| Mounting Hardware Included | Yes |
| Parts Pack(s) | P01134 |
| Body Color | Yellow |
| Cylinder Color | Yellow |
| Color | Yellow |
| Cylinder Finish | Painted |
| Dust Shield Included | No |
| Includes Bump Stop | No |
| Internal Rebound Bumper | Yes |
| Hydraulic Lockout | No |
| Grade Type | Premium |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Part Description | Shock Absorber |
Additional Information
| MSDS Sheet Number | 01168 |
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708803000 |
| Harmonized Tariff Code (Schedule B) | 8708800050 |
| Harmonized Tariff Code (HTS) | 8708801600 |
| UPC | 00048598049612 |
| VMRS Code | 016008003 |
| UNSPSC | 25172011 |
MONROE 34983 Cross References
| Brand | Part Number |
|---|---|
| 34983MM | |
| ACDelco | 52042, 530190, 54016 |
| AUTOZONE | TS34-31691B |
| AutoZone | TS3431691B |
| Chevrolet | 12474702, 12474703, 12474704, 12474705, 12474709, 12474710, 12474711, 12474712, 12474719, 12474720, 12474906, 15002528, 15002529, 15021581, 15150925, 15150926, 15150928, 15150929, 15150930, 15150932, 15152942, 15152943, 15152944, 15152946, 15718076, 15720387, 15727198, 15727199, 15735786, 15741932, 15742099, 15991799, 15991800, 15991801, 15991802, 15991803, 15991804, 22064206, 22064332, 22064452, 22064633, 22064634, 22064638, 22064639, 22064647, 22064649, 22064650, 22064678, 22064679, 22064682, 22064683, 22064684, 22064685, 22064696, 22064697, 22064829, 22064830, 22064831, 22064835, 22064838, 22064839, 22064840, 22064841, 22065093, 22065212, 22065237, 22177390, 22177391, 88945357, 88945870, 88945886, 88945887, 88945967, 88945983, 88945994, 88946059, 88946581, 88946627 |
| Duralast | TS3431691B |
| GABRIEL | G63489, 58489, 77903, 61544 |
| GMC | 12474703, 12474704, 12474705, 12474709, 12474710, 12474711, 12474712, 12474720, 15002529, 15021581, 15150925, 15150926, 15150928, 15150930, 15150932, 15152942, 15152943, 15152944, 15152946, 15720387, 15727198, 15727199, 15735786, 15741932, 15742099, 15991799, 15991800, 15991801, 15991802, 15991803, 15991804, 22064206, 22064332, 22064452, 22064633, 22064634, 22064638, 22064639, 22064647, 22064649, 22064650, 22064678, 22064679, 22064682, 22064683, 22064684, 22064685, 22064696, 22064697, 22064829, 22064830, 22064831, 22064835, 22064838, 22064839, 22064840, 22064841, 22065093, 22065212, 22065237, 22177390, 22177391, 88945357, 88945870, 88945886, 88945887, 88945967, 88945983, 88945994, 88946059, 88946581, 88946627 |
| KYB | 344265, KG4752, 344381, KG54327, 343209, 565030, 565060, KG5478, KG5040, 565067, 341343 |
| MERITOR | MG60098, MG60304 |
| MasterPro Shocks and Struts | GM113 |
| Monroe Shocks & Struts | 32224 |
| NAPA Proformer | SH81668 |
| NAPA Shocks | 76983 |
| NAVISTAR | AMS34983 |
| Sensen | 12140179 |
| Toyota | 4851180009, 4851180011, 4851180038, 4851180040, 4853109060, 485310W040, 4853134040, 4853134050, 4853180146, 4853180147, 4853180439, 4853180440 |
MONROE 34983 Fits Vehicles
- Chevrolet Suburban (1992-1994)
- Toyota T100 (1993-1998)
- GMC Yukon (1995-1999)
- GMC Savana 1500 (1996-2002)
- GMC C2500 Suburban (1992-1999)
- GMC C2500 (1988-2000)
- GMC C1500 Suburban (1992-1999)
- GMC C1500 (1988-1999)
- Chevrolet Tahoe (1995-2000)
- Chevrolet Express 1500 (1996-2002)
- Chevrolet C2500 Suburban (1992-1999)
- Chevrolet C2500 (1988-2000)
- Chevrolet C1500 Suburban (1992-1999)
- Chevrolet C1500 (1988-1999)
