ICON 71607 Part Description
Manufacturer
Product Description

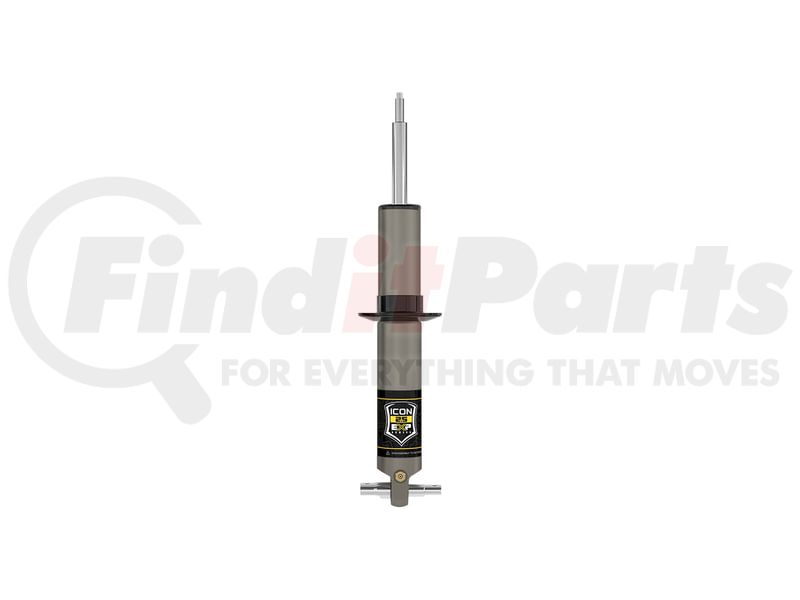

19-23 GM 1500 FRONT 2.5 EXP COILOVER
Features & Benefits
- Vehicle specific design for the 2019-2023 GM 1500 trucks
- Adjustable ride heights from 2.375-3.75” of front lift over stock with the use of snap ring
- Utilizes factory coils
- 2.5 Aluminum Series Shock with Internal Reservoir
- CNC machined 6061 aluminum components with a black anodize finish
- PTFE lined bearings for extended longevity and minimal deflection
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shaft
- One-piece impact extruded aluminum hard anodized cylinders offer excellent corrosion resistance and consistent finish
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
OEM Wheels & Tires Fitment: Yes
19-23 GM 1500 FRONT 2.5 EXP COILOVE
ICON 71607 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | No |
| Body Diameter | 2.5 in |
| California Prop 65 Warning | Yes |
| Coil Spring Included | No |
| Coil Spring Insulator(s) Included | No |
| Compressed Length | 16.75 IN |
| Cylinder Color | Gray |
| Cylinder Finish | Hard Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2.5 IN |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 22.11 in |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Lower Mount Type | BAR PIN |
| Material | Steel |
| Maximum Lift | 3.75 IN |
| Maximum Ride Height Raising Distance | 3.75 IN |
| Minimum Lift | 2.375 IN |
| Remote Reservoir | NO |
| Reservoir Style | Internal |
| Self-Leveling | No |
| Service Parts | 252010 - 2.5 IFP REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Flat on Bar Pin |
| Shock Absorber Rod End Measuring Point | Shoulder of Stem |
| Title | ICON 2019-2023 GM 1500, Front, 2.38-3.75" Lift, 2.5 EXP Coilover |
| Travel Length | 5.37 in |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Additional Information
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103421551 |
ICON 71607 Fits Vehicles
- GMC Sierra 1500 (2019-2023)
- Chevrolet Silverado 1500 (2019-2023)
