RAYBESTOS PG-D623C Part Description
Manufacturer
Product Description

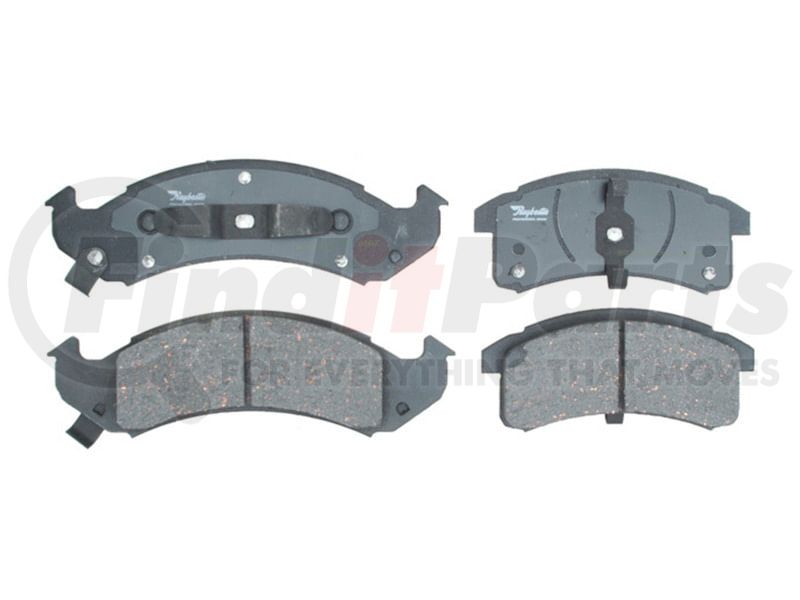

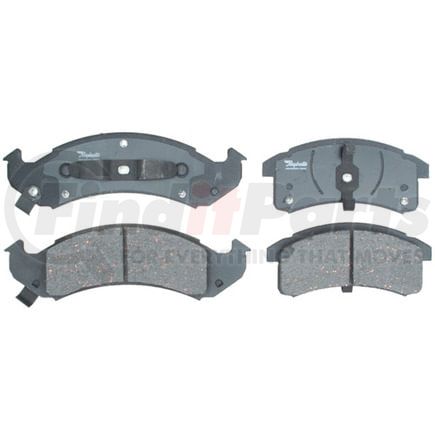

Raybestos Element3 Ceramic Brake Pad Set
Application Summary
1999-1994 Buick LeSabre Front, 1997-1994 Chevrolet Camaro Front, 1997-1994 Pontiac Firebird Front, 1999-1994 Oldsmobile 88 Front, 1996-1994 Cadillac DeVille Front, 1999-1994 Pontiac Bonneville Front, 1996-1994 Cadillac Seville Front
Features & Benefits
- Application Specific Formulations
- Application-specific formulas for quiet operation and superior stopping power. Element3(R) brake pads are engineered to combine the best of ceramic & semi-metallic formulations all into one brake pad.
- Noise Dampening Shims
- Premium multi-layer shims on EHT(R) formulations promote quiet stopping in a wide variety of temperature ranges and vehicle platforms.
- EHT(R) Enhanced Hybrid Technology
- EHT(R) Enhanced Hybrid Technology formulations have a premium blend of friction materials allowing optimal performance, improved pad wear & durability, and increased stopping power during aggressive braking.
- Hardware & Electronic Wear Sensors
- Stainless steel brake hardware and electronic wear sensors included. (where applicable)
RAYBESTOS PG-D623C Specifications
Product Attributes
| Chamfered Edges | No |
| Friction Material Attachment | Integrally Molded |
| Friction Material Composition | Ceramic |
| Friction Material Slot Type | Slotted |
| Inner Pad Height | 2.660 in |
| Inner Pad Overall Thickness | 0.681 IN |
| Inner Pad Width | 5.820 in |
| Mounting Hardware Included | Yes |
| Outer Pad Height | 2.660 IN |
| Outer Pad Overall Thickness | 0.630 in |
| Outer Pad Width | 5.820 IN |
| Pad Shim Attachment Type | Staked |
| Pad Shims Attached | Yes |
| Pad Shims Included | Yes |
| Pad Wear Sensor Attached | No |
| Pad Wear Sensor Included | No |
| Slotted | Yes |
Additional Information
| Country of Origin (Primary) | IN |
| Harmonized Tariff Code (HTS) | 8708305040 |
| Canadian Harmonizing Tariff Code | 8708301900 |
| UPC | 00829352185414 |
RAYBESTOS PG-D623C Cross References
| Brand | Part Number |
|---|---|
| A012105085S | |
| ACDelco | 171-524, 171-570, 171-579, 171-582 |
| AGNA Brakes | ALD623M |
| Advance Auto Parts | GMKD623 |
| Akebono | ACT623, ASP623, ISD623 |
| American Remanufactured | 62-D623, 64-D623, 68-D623, 762-D623 |
| AutoZone | DG623, DGC623 |
| Autopart International | 93234 |
| Autospecialty | 14-623-12, 16-623-12, 24-623-01, 24-623-02, 26-623-02, 27-623, 27-623-01, 28-623, 28-623-03 |
| Autoxtra | SMD623, UCD623 |
| Bendix | MKD623, MKD623FM, MKD623SUV, MRD623, SBC623 |
| Brake Pro | 4970623 |
| BrakeBest | MKD623 |
| Brembo | P59062N |
| CENTRIC | 105.06230 |
| Centric Parts | 102.06230, 103.06230, 104.06230, 105.06230, 106.06230, 108.06230, 300.06230, 301.06230, 305.06230, 308.06230, 309.06230, 500.06230 |
| Delphi | CL321 |
| EIS Brakes | DM623, MX623, QMX623 |
| FRITEC | 7384-Z1 |
| Formula Blue Hydraulic Brake Parts | E10906230, E11106230 |
| General Motors | 12370006, 12370012, 12510042, 12510043, 12510044, 18021248, 18021253, 18021256, 18021259, 18021261, 18022641, 18023375, 18024923, 18024924, 18024933, 18024936 |
| Guardian | 65-623 |
| Ideal | PMD623 |
| Inwood Automotive Products | CXD623, D623, DMX623, PDMX623, S623, SP623, SPQ623, TXD623 |
| KEM | CMD623, MD623, MXD623, PXD623 |
| Midas | BP1653M |
| Monroe Brakes | DX623, FX623 |
| Morse | CMX623, MKD623, MX623, SXE623 |
| Perfect Stop | PC623 |
| Performance Friction | 0623.10, 0623.20, 0623.80, 6234, 623C, 623Z |
| PowerStop | 16-623, 17-623, PM18-623, Z23-623 |
| Rockhill | MD623 |
| Satisfied | CL623, FL623, PR623, PR623C, SU623 |
| WAGNER | MX623 |
| Wagner Brake | D623C, EX623, LT623, LT7384A, MD623, MX623, MX7384A, PS623C, PS623M, PX623, QC623, SX623, SX7384A, ZD623, ZX623 |
| Western Brakes | WSD623 |
RAYBESTOS PG-D623C Fits Vehicles
- Pontiac Trans Sport (1994-1996)
- Pontiac Firebird (1994-1997)
- Pontiac Bonneville (1994-1999)
- Oldsmobile Silhouette (1994-1996)
- Oldsmobile Regency (1997-1998)
- Oldsmobile LSS (1996-1999)
- Oldsmobile 88 (1994-1999)
- Oldsmobile Aurora (1995-1996)
- Oldsmobile 98 (1994-1996)
- Chevrolet Lumina APV (1994-1996)
- Chevrolet Camaro (1994-1997)
- Cadillac Seville (1994-1996)
- Cadillac Eldorado (1994-1996)
- Cadillac DeVille (1994-1996)
- Buick Riviera (1995-1996)
- Buick Park Avenue (1994-1996)
- Buick LeSabre (1994-1999)
