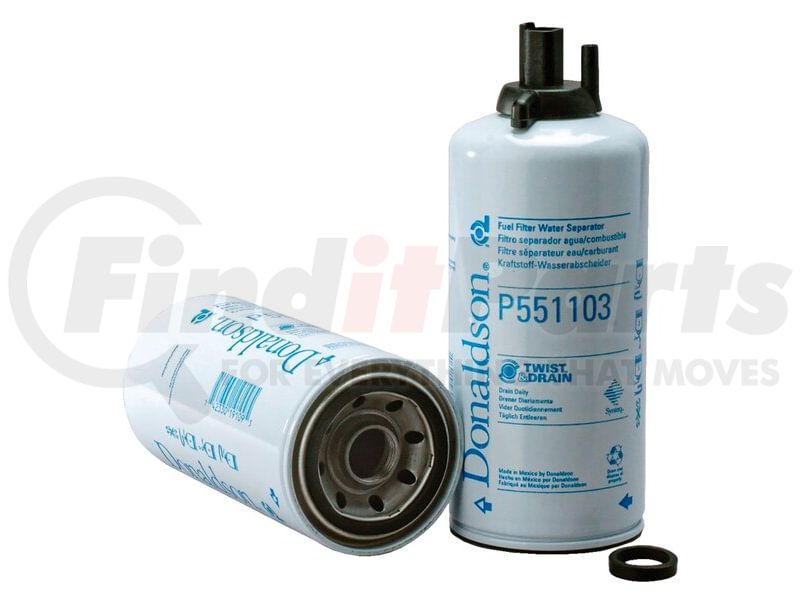

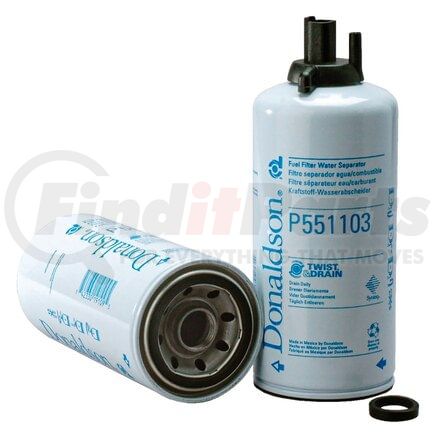

(888) 312-8812 Login SignupDONALDSON P551103 Fuel Water Separator Filter - 9.4 in., Water Separator Type, Spin-On Style, Composite Media Type, Not for Marine Applications
SHIPS NEXT BUSINESS DAY
$4099
Limited availability at this price!
In Stock
Get as soon as Tuesday, Sep 29
DONALDSON P551103 Part Description
Manufacturer
Product Description
FUEL FILTER, WATER SEPARATOR SPIN-ON TWIST&DRAIN
Application Summary
CUMMINS 3406889
Features & Benefits
- Composite media filters fine particulate while resisting collapse in diesel service
- Twist&Drain canister allows water removal without disturbing the full filter installation
- Separates entrained water before it reaches pumps, injectors, and downstream components
- Threads onto compatible 1-14 UN heads for straightforward scheduled replacement
Donaldson Fuel Water Separator Filter
The Donaldson Fuel Water Separator Filter removes water and fine contamination before fuel reaches the injection system. Its 9.4-inch canister uses composite media and a Twist&Drain design to combine particulate filtration with collected-water service access. A 1-14 UN thread, 3.66-inch outer diameter, standpipe, and 10-micron efficiency suit compatible heavy-duty diesel fuel filter housings. Because it is built as a fuel water separator for diesel applications, it should not be used in marine installations. Engineered for routine service and clean fuel delivery, the Donaldson P551103 fuel water separator spin-on filter gives technicians a clear replacement choice.
DONALDSON P551103 Specifications
Product Attributes
| Length | 9.4 in |
| Efficiency 99% | 10 MICRON |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95 PERCENT |
| Gasket Id | 2.4 IN |
| Gasket Od | 2.8 IN |
| Media Type | Composite |
| Notes | Not for Marine Applications |
| Outer Diameter | 3.66 IN |
| Primary Application | CUMMINS 3406889 |
| Stand Pipe | Yes Y/N |
| Style | Spin-On |
| Thread Size | 1-14 UN |
| Type | Water Separator |
| Brand | Twist&Drain |
| Length | 9.4 IN |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8421230000 |
| UPC | 00742330191095 |
DONALDSON P551103 Cross References
| Brand | Part Number |
|---|---|
| AC DELCO | TP1027 |
| BALDWIN | BF1293-SPS |
| BIG A | 95604 |
| CASE/CASE IH | 87307432, 87307433 |
| CHINA LOCAL | VF2818 |
| CUMMINS | 3406889, 340688900, 3954891, 3954904, 4070801, 4934544, 4934879, 4934949 |
| FLEETGUARD | FS1065, FS1003 |
| FRAM | PS10716 |
| LUBER-FINER | LFF1003 |
| N/A | FF1164SPS, FF1172SPS, Z833, PS10716, PS8687, 219902, S6450550, FS354, F75915, 33604, 33604XE, 33965, 533604XE, 533965, 95604, BF1293SPS, BF1378SPS, LFF1065, 87307432, 87307433, 0019830507, 19830507, 86406XE, 86604, 86604XE, 86965, FS1067, FS19596, FS1003B, 76195122, 87302104, FSR81003, FSR819596, F7B02900, 2056637, 3604XE, 3965, 3406XE, 3604, J8621003, P552032, TP1027, GPP1003S, 3406889, 340688900, 3954891, 3954904, 4070801, 4934544, 4934879, 4934949, 1814637, SN40541, SN40828, YA00011061, WK10017X, WK9017X, 46554959, 220747709902, 22637904, H375WK |
| PREMIUM GUARD | DW30100XE, DW30100 |
| WIX FILTERS | WIX FILTERS, 33604 |
DONALDSON P551103 Fits Vehicles
- Western Star 4700SB (2013-2018)
- Western Star 4700SF (2012-2018)
- Mack Granite (2019)
- Kenworth K370 (2013-2022)
- Kenworth K270 (2013-2016)
- International 9900i (2000-2003)
- Peterbilt 387 (2003)
- Peterbilt 385 (2003-2007)
- Peterbilt 378 (2003-2007)
- Peterbilt 365 (2008-2009)
- Kenworth T400 (2011-2013)
- Peterbilt 320 (2003-2007)
- Peterbilt 220 (2010, 2013)
- Peterbilt 337 (2014-2015)
- Peterbilt 330 (2003-2005, 2007)
- Freightliner B2 (2008-2018)
- Peterbilt 379 (1999-2007)
- Peterbilt 357 (2001-2008)
- Kenworth T600A (1986-2002)
- Kenworth T2000 (1998-1999)
- Freightliner Cascadia (2012-2013)
- Freightliner 114SD (2012-2014, 2019-2020)
- Freightliner 108SD (2012-2017)
- Freightliner Condor (2001-2007)
- Freightliner Classic (2001-2002)
- Freightliner FC80 (1999-2007)
- Freightliner Argosy (1999-2003, 2006)
- Freightliner FL70 (1998-1999, 2004-2005)
- Freightliner FL60 (1998-2000, 2004)
- Freightliner FL112 (1998-2003)
- Freightliner FL50 (1995-2002)
- International 9900i SFA (2000-2003)
- International 9200i SBA (2000-2011)
- International 5000 (1998-2000, 2002)
- International 2574 (1998-2003)
- International 9400 (1990-2000)
- International 2674 (1998-2003)
- International 2654 (1999-2000)
- International 2554 (1999-2000)
- Freightliner FC70 (1999-2004)
- Kenworth T370 (2008-2022)
- Kenworth T270 (2008-2022)
- Kenworth T170 (2008-2010, 2014-2016)
- Kenworth T300 (1998-2007)
- Peterbilt 335 (2005-2010)
- Ford F-750 (2004-2013, 2015)
- Ford F-650 (2004-2013, 2015)
DONALDSON P551103 Customer Reviews
No reviews yet
Be the first to review this product!
DONALDSON P551103 Manufacturer Information
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
