(888) 312-8812 Login SignupDELPHI TC7767 Control Arm and Ball Joint Assembly
Tap to view 13 more
$10249
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI TC7767 Part Description
Manufacturer
Product Description

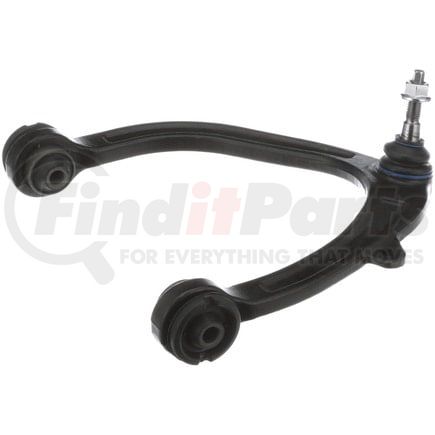

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
tc7767
DELPHI TC7767 Specifications
Product Attributes
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 13.032 IN |
| Control Arm Maximum Width | 331.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 1.319 IN |
| Ball Joint Stud Length | 33.50 MM |
| Control Arm Maximum Length | 13.622 IN |
| Control Arm Maximum Length | 346.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.571 IN |
| Mounting Hole Diameter | 14.50 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604381977 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC7767 Cross References
DELPHI TC7767 Fits Vehicles
- Ford F-150 (2010-2014)
DELPHI TC7767 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC7767 Manufacturer Information
Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
DELPHI TC7767 Questions & Answers
No questions yet
Be the first to ask a question about this product!
