(888) 312-8812 Login SignupRAYBESTOS 680376 Raybestos Specialty - Truck Brake Rotor
$27399
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 30
RAYBESTOS 680376 Part Description
Manufacturer
Product Description

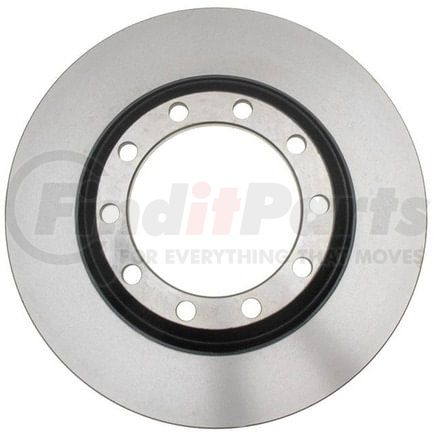

Raybestos Specialty - Truck Brake Rotor
Application Summary
2003-2000 Ford F650 Front, 2003-2000 Ford F750 Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680376 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5.961 IN |
| Center Hole Diameter | 151.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.42 IN |
| Discard Thickness | 36.05 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 7.25 IN |
| Mounting Bolt Hole Circle Diameter | 184.15 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.536 IN |
| Nominal Thickness | 39 MM |
| Outside Diameter | 15.371 IN |
| Outside Diameter | 390.4 MM |
| Overall Height | 3.396 IN |
| Overall Height | 86.25 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352498279 |
RAYBESTOS 680376 Cross References
| Brand | Part Number |
|---|---|
| ASH85855, 829352498279 | |
| BENDIX | PRT6082 |
| BRAKEBEST | 680376, 680376RGS |
| CENTRIC | 120.79024, 121.79024 |
| Centric Parts | 120.79024, 121.79024 |
| DAYTON WALTHER | 23-123527-002 |
| DURA CORP | BR54140, BR901338 |
| DuraGo | BR901338 |
| Dynamic Friction Company | 604-54249 |
| FORD | YC3Z1125AA |
| MERITOR | 23-123527-002, 23123527002 |
| NEWTEK AUTOMOTIVE | R1338 |
| Newtek Automotive USA | R1338 |
| PROMAX | 14-54140 |
| PRONTO | BR901338 |
| Qualis | 42271 |
| WAGNER | BD126345 |
| WAGNER BRAKE | BD126345 |
| WINHERE | 4421260 |
RAYBESTOS 680376 Fits Vehicles
- Ford F-750 (2000-2003)
- Ford F-650 (2000-2003)
