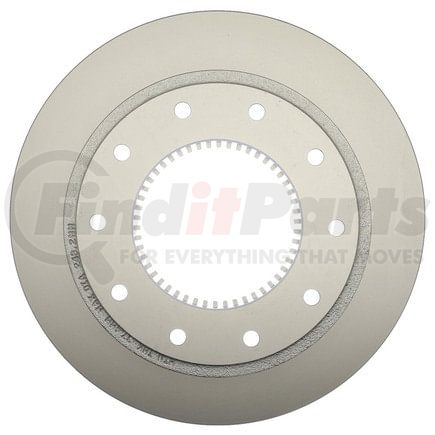

Raybestos 580648 - Raybestos Specialty - Truck Brake Rotor
$22549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
RAYBESTOS part description
Product Description
Raybestos Specialty - Truck Brake Rotor
Application Summary
2009-2004 GMC C5500 Topkick Rear, 2009-2004 Chevrolet C4500 Kodiak Rear, 2009-2004 Chevrolet C5500 Kodiak Rear, 2009-2004 GMC C4500 Topkick Rear
Product Attributes
| ABS Tone Ring Included | Yes |
| Center Hole Diameter | 5.488 IN |
| Center Hole Diameter | 139.4 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 1.472 IN |
| Discard Thickness | 37.4 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 10.618 IN |
| Inside Diameter | 269.7 MM |
| Mounting Bolt Hole Circle Diameter | 7.795 IN |
| Mounting Bolt Hole Circle Diameter | 198 MM |
| Mounting Bolt Hole Diameter | 0.507 IN |
| Mounting Bolt Hole Diameter | 12.9 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.535 IN |
| Nominal Thickness | 39 MM |
| Outside Diameter | 15.354 IN |
| Outside Diameter | 390 MM |
| Overall Height | 4.317 IN |
| Overall Height | 109.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| UPC | 00829352704158 |
Part Interchanges
- General Motors 15083702
- Wagner Brake BD126369
- ACDelco 177-0958
- BrakeBest 580648
- BrakeBest 580648RGS
- Centric Parts 120.80017
- Centric Parts 121.80017
- Advance Auto Parts YH517074
- Autoxtra AX901104
- Casting Numbers 326419
- Dura Corp BR55154
- Dura Corp BR901104
- Winhere 6672304
- Newtek Automotive USA 55154
- Newtek Automotive USA R1104
- Promax 14-55154
- UAP 55154
- Wagner Brake BD126369E
- Dynamic Friction Company 600-48084
- DuraGo BR901104
- Qualis 41223
RAYBESTOS 580648 Cross Reference
We have 18 alternatives for the 580648 by RAYBESTOS:
- DYN-6909
- 829352704158
- ACDELCO 177-0958
- GM 15083702
- ADVANCE AUTO PARTS YH517074
- AUTOXTRA AX901104
- BRAKEBEST 580648
- BRAKEBEST 580648RGS
- CENTRIC 120.80017
- CENTRIC 121.80017
- DURA CORP BR55154
- DURA CORP BR901104
- NEWTEK AUTOMOTIVE 55154
- NEWTEK AUTOMOTIVE R1104
- PROMAX 14-55154
- UAP 55154
- WAGNER BRAKE BD126369
- WINHERE 6672304
Fits Vehicles
- GMC C5500 Topkick (2004-2009)
- Chevrolet C5500 Kodiak (2004-2009)
- GMC C4500 Topkick (2004-2009)
- Chevrolet C4500 Kodiak (2004-2009)
