RAYBESTOS 980052 Part Description
Manufacturer
Product Description

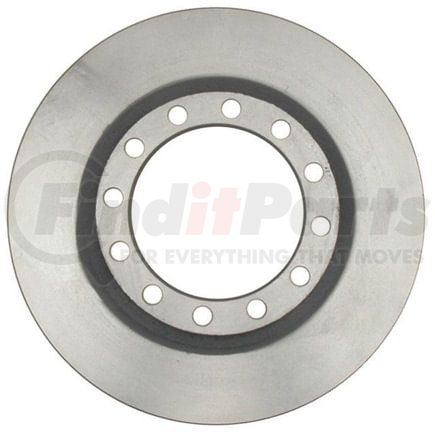

Raybestos Specialty - Truck Brake Rotor
Application Summary
1997-1987 Isuzu NPR Front, 1997-1995 Chevrolet W3500 Tiltmaster Front, 1997-1995 GMC W3500 Forward Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980052 Specifications
Product Attributes
| Center Hole Diameter | 4.332 IN |
| Center Hole Diameter | 110.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.26 IN |
| Discard Thickness | 32 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.354 IN |
| Mounting Bolt Hole Circle Diameter | 136 MM |
| Mounting Bolt Hole Diameter | 5.354 IN |
| Mounting Bolt Hole Diameter | 136 MM |
| Mounting Bolt Hole Quantity | 12 |
| Nominal Thickness | 1.38 IN |
| Nominal Thickness | 35.05 MM |
| Outside Diameter | 11.1 IN |
| Outside Diameter | 281.95 MM |
| Overall Height | 2.46 IN |
| Overall Height | 62.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 12 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999328373 |
RAYBESTOS 980052 Cross References
| Brand | Part Number |
|---|---|
| 219-0345, 30999328373 | |
| ADVANCE AUTO PARTS | YH517072, YH517072C |
| AMERICAN REMANUFACTURED | 789-10017, 89-10017 |
| AUTOSPECIALTY | JBR566 |
| AUTOZONE | 31297 |
| BRAKEBEST | 980052, 980052R, 980052RGS |
| CENTRIC | 120.76001 |
| Casting Numbers | 211409-C, 325968 |
| DURA CORP | BR31297 |
| GM | 97015887 |
| General Motors | 97015887 |
| ISUZU | 8970158870, 8973176730 |
| MIGHTY DISTRIBUTING SYSTEM | 31297 |
| NEWTEK AUTOMOTIVE | 31297 |
| Newtek Automotive USA | 31297 |
| PRONTO | BR55035 |
| TRW | DF7842 |
| UAP | 31297 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51410 |
RAYBESTOS 980052 Fits Vehicles
- Chevrolet W3500 Tiltmaster (1995-1997)
- GMC W3500 Forward (1995-1997)
- Isuzu NPR (1987-1997)
