(888) 312-8812 Login SignupRAYBESTOS 66671 Raybestos Specialty - Truck Brake Rotor
$108.62
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 66671 Part Description
Manufacturer
Product Description

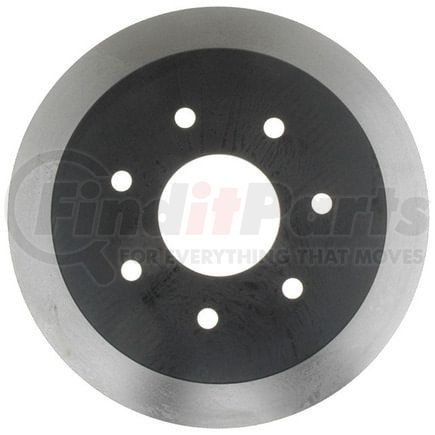

Raybestos Specialty - Truck Brake Rotor
Application Summary
2004-2000 Ford F-150 Rear, 1997 Ford F-250 HD Rear, 1999-1997 Ford F-250 Rear, 2003-2001 Ford Lobo Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 66671 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.443 IN |
| Center Hole Diameter | 87.45 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.472 IN |
| Discard Thickness | 12 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.906 IN |
| Mounting Bolt Hole Circle Diameter | 150 MM |
| Mounting Bolt Hole Diameter | 0.56 IN |
| Mounting Bolt Hole Diameter | 14.2 MM |
| Mounting Bolt Hole Quantity | 7 |
| Nominal Thickness | 0.556 IN |
| Nominal Thickness | 14.1 MM |
| Outside Diameter | 13.135 IN |
| Outside Diameter | 333.65 MM |
| Overall Height | 3.1 IN |
| Overall Height | 78.75 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 7 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730215938 |
RAYBESTOS 66671 Cross References
| Brand | Part Number |
|---|---|
| 610-0017, 747730215938 | |
| ADVANCE AUTO PARTS | 145139, G12330SD, YH145139, YH145139C, YH145139P |
| AMERICAN REMANUFACTURED | 789-42061, 89-42061 |
| AUTOSPECIALTY | AR8561, AR8561E |
| AUTOXTRA | 125530, 8066671, AX54043 |
| AUTOZONE | 54043, 54043DG, 54043DL, DL54043 |
| BENDIX | 145139 |
| BOSCH | 20010391 |
| BRAKE HEADQUARTERS | BR54594 |
| BRAKEBEST | 20010391, 66671, 66671FZN, 66671R, 66671RGS, 81-125530, BD125530 |
| BrakeBest | 66672RGS, 66673RGS, 66676RGS, 66677RGS |
| CALIFORNIA DRUM & ROTOR | 125530 |
| CENTRIC | 120.65061, 121.65061, 126.65061CSL, 126.65061CSR, 126.65061SL, 126.65061SR, 127.65061L, 127.65061R, 128.65061L, 128.65061R, 320.65061, 320.65061F |
| Casting Numbers | 211098-C, 325447, 540431 |
| Centric Parts | 120.65061, 121.65061, 126.65061CSL, 126.65061CSR, 126.65061SL, 126.65061SR, 127.65061L, 127.65061R, 128.65061L, 128.65061R, 320.65061, 320.65061F |
| DELPHI | RB684 |
| DURA CORP | BR54043 |
| DuraGo | BR54043 |
| FORD | F75Z2C026CC, XL3Z2C026BA, YL3Z1V125FA, YL3Z1V125FB |
| GREN | 649101 |
| GUARDIAN | 52-125530 |
| MAGMA PRODUCTS | PSR205183 |
| MIDAS | BR2054 |
| MIGHTY DISTRIBUTING SYSTEM | 54043 |
| MONROE BRAKES | BD125530 |
| MOTORCRAFT | BRR67 |
| NEOTEK | 1071033GF |
| NEWTEK AUTOMOTIVE | 54043 |
| Newtek Automotive USA | 54043 |
| PEP BOYS | 54043G |
| PROMAX | 14-54043 |
| PRONTO | BR54043 |
| QUALIS | 54043 |
| QUALITY BRAND | 54043, Q4021 |
| STANDARD ROTORS AND DRUMS | 54043 |
| THE UNIVERSAL GROUP | 102566 |
| UAP | 54043 |
| Universal | 102566 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51203 |
| WABCO | PS125530 |
| WABCO - Archived | PS125530 |
| WAGNER | BD125530E, BD125530 |
| WAGNER BRAKE | BD125530, BD125530E |
| WINHERE | 441184, YH1184 |
RAYBESTOS 66671 Fits Vehicles
- Ford F-150 Heritage (2004)
- Ford F-250 HD (1997)
- Ford Lobo (2001-2003)
- Ford F-250 (1997-1999)
- Ford F-150 (2000-2004)
