CENTRIC 320.65061F Part Description
Manufacturer
Product Description

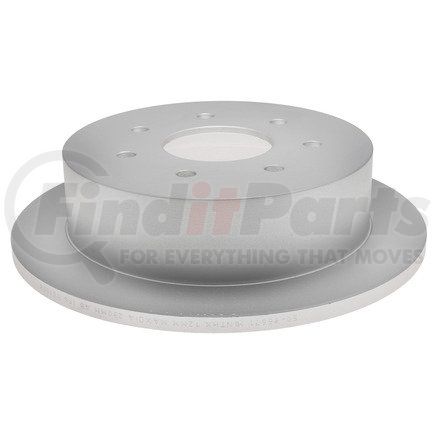

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
- For the best corrosion resistance
- RS200™ Zinc-Aluminum Rich Coating
- Optimal Surface Finish
- For consistent and confident braking from the first stop
- Carbon Enhanved Advanced Metallurgy
- For optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- For heat capacity and strength
- Low Initial Lateral Run-Out
- For smooth vibration free stopping
- Precision Balance
- For vibration free performance
CENTRIC 320.65061F Specifications
Product Attributes
| Max Pb Drum Dia [cntrc] Mm | 230.000 |
| Weight [cntrc] Kgs | 10.000 |
| Weight [cntrc] Lbs | 22.000 |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] In | 9.055 |
| Discard Thickness | 0.472 IN |
| Discard Thickness | 12.000 MM |
| Nominal Thickness | 14.000 MM |
| Nominal Thickness | 0.551 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 79.800 MM |
| Overall Height | 3.142 IN |
| Outside Diameter | 13.150 IN |
| Outside Diameter | 334.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 228.500 MM |
| Nominal Drum Diameter | 8.996 IN |
| Bearings Included | No |
| Center Hole Diameter | 87.500 MM |
| Center Hole Diameter | 3.445 IN |
| Mounting Bolt Hole Circle Diameter | 150.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.906 IN |
| Stud/Lug Hole Quantity | 7 |
| Stud/Lug Hole Diameter | 14.300 MM |
| Stud/Lug Hole Diameter | 0.563 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00889590392630 |
CENTRIC 320.65061F Cross References
CENTRIC 320.65061F Fits Vehicles
- Ford F-150 Heritage (2004)
- Ford F-250 (1998-1999)
- Ford F-150 (2000-2003)
