(888) 312-8812 Login SignupRAYBESTOS 580265 Raybestos Specialty - Street Performance Brake Rotor
$20449
Limited availability at this price!
In Stock
Get it by Monday, Jul 13
RAYBESTOS 580265 Part Description
Manufacturer
Product Description

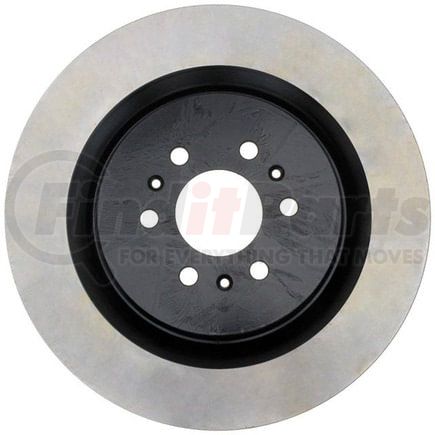

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2007-2004 Cadillac CTS Rear, 2011-2006 Cadillac STS Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 580265 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.785 IN |
| Center Hole Diameter | 70.75 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 14.378 IN |
| Outside Diameter | 365.2 MM |
| Overall Height | 1.772 IN |
| Overall Height | 45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352540435 |
RAYBESTOS 580265 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145607, YH145692 |
| AUTOZONE | 41228, 41228DG |
| BENDIX | PRT5692 |
| BRAKEBEST | 580265, 580265RGS |
| CENTRIC | 120.62076, 121.62076, 125.62076, 125.62076CRY, 126.62076CSL, 126.62076CSR, 126.62076SL, 126.62076SR, 127.62076CL, 127.62076CR, 127.62076L, 127.62076R, 128.62076CL, 128.62076CR, 128.62076L, 128.62076R, 125.62075, 121.62075 |
| Centric Parts | 120.62076, 121.62076, 125.62076, 125.62076CRY, 126.62076CSL, 126.62076CSR, 126.62076SL, 126.62076SR, 127.62076CL, 127.62076CR, 127.62076L, 127.62076R, 128.62076CL, 128.62076CR, 128.62076L, 128.62076R |
| DURA CORP | BR55146, BR900830 |
| DuraGo | 900830, BR900830 |
| GM | 25750257 |
| General Motors | 25750257 |
| NEOTEK | 1072004GF |
| NEWTEK AUTOMOTIVE | 55146 |
| Newtek Automotive USA | 55146 |
| PROMAX | 14-55146 |
| PRONTO | BR900830 |
| Qualis | 41228 |
| UAP | 55146 |
| WABCO | PS126282 |
| WABCO - Archived | PS126282 |
| WAGNER | BD126537, BD126282 |
| WAGNER BRAKE | BD126282 |
| WINHERE | 6620695 |
| WORLDPAC | 1427-719769 |
RAYBESTOS 580265 Fits Vehicles
- Cadillac STS (2005-2011)
- Cadillac CTS (2004-2007)
