RAYBESTOS 980290 Part Description
Manufacturer
Product Description

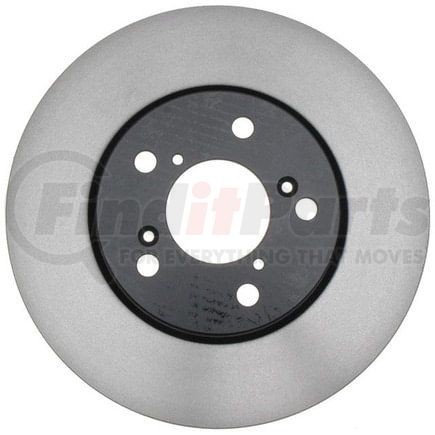

Raybestos Specialty - Truck Brake Rotor
Application Summary
2010-2005 Honda Odyssey Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 980290 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.76 IN |
| Center Hole Diameter | 70.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 0.566 IN |
| Mounting Bolt Hole Diameter | 14.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 11.65 IN |
| Outside Diameter | 295.9 MM |
| Overall Height | 1.855 IN |
| Overall Height | 47.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352279106 |
RAYBESTOS 980290 Cross References
| Brand | Part Number |
|---|---|
| 801897MM, 829352279106 | |
| ADVANCE AUTO PARTS | 145604, YH145604, YH145604C, YH145604P |
| AUTOPARTSOURCE | 572610 |
| AUTOXTRA | 80980290, AX31368 |
| AUTOZONE | 31368, 31368DG |
| Autoxtra | AX31368P |
| BENDIX | 145604, PRT5604 |
| BOSCH | 26010767 |
| BRAKEBEST | 26010767, 980290, 980290FZN, 980290R, 980290RGS |
| BREMBO | 09.B555.10, 25935 |
| Brembo | 09.B555.11 |
| CENTRIC | 120.40064, 120.40064CRY, 121.40064, 126.40064CSL, 126.40064CSR, 126.40064SL, 126.40064SR, 127.40064CL, 127.40064CR, 127.40064L, 127.40064R, 128.40064CL, 128.40064CR, 128.40064L, 128.40064R, 227.40064L, 227.40064R, 320.40064, 321.40064 |
| Casting Numbers | 211675-C, 326186 |
| Centric Parts | 120.40064, 120.40064CRY, 121.40064, 126.40064CSL, 126.40064CSR, 126.40064SL, 126.40064SR, 127.40064CL, 127.40064CR, 127.40064L, 127.40064R, 128.40064CL, 128.40064CR, 128.40064L, 128.40064R, 227.40064L, 227.40064R, 320.40064, 321.40064 |
| DURA CORP | BR31368, BR3136802 |
| DuraGo | BR31368, BR3136802, BR31368-02 |
| Eurorotor | HO-5002 |
| HONDA | 45251SHJA00 |
| MAGMA PRODUCTS | PSR265097 |
| MIGHTY DISTRIBUTING SYSTEM | 31368 |
| MONROE BRAKES | BD126353 |
| NEOTEK | 106264GF |
| NEWTEK AUTOMOTIVE | 31368 |
| Newtek Automotive USA | 31368 |
| Omnicraft | QBRR88 |
| POWERSTOP | JBR989EVC |
| PROMAX | 14-31368, 20-31368 |
| PRONTO | BR31368 |
| QUALIS | 31368 |
| TopNotch | TN980290GEO |
| UAP | 31368 |
| Ultra Brake | HO-5002 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51701 |
| WABCO | PS126353 |
| WABCO - Archived | PS126353 |
| WAGNER | BD126353, BD126353E |
| WAGNER BRAKE | BD126353, BD126353E |
| WINHERE | 6620498 |
| WORLDPAC | 1407-75103, 1427-731771 |
RAYBESTOS 980290 Fits Vehicles
- Honda Odyssey (2005-2010)
