(888) 312-8812 Login SignupRAYBESTOS 780175 Raybestos Specialty - Truck Brake Rotor
$12999
Limited availability at this price!
In Stock
Get it by Friday, Jul 31
RAYBESTOS 780175 Part Description
Manufacturer
Product Description

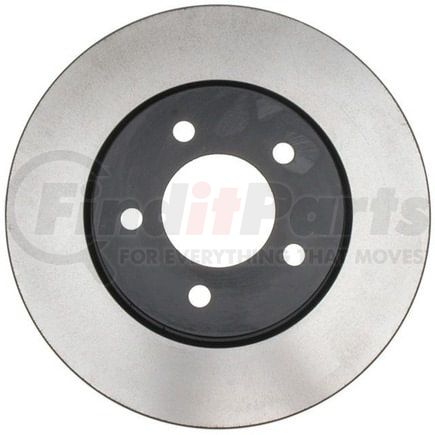

Raybestos Specialty - Truck Brake Rotor
Application Summary
2008-2004 Chrysler Pacifica Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 780175 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.23 IN |
| Center Hole Diameter | 82.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.043 IN |
| Discard Thickness | 26.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5 IN |
| Mounting Bolt Hole Circle Diameter | 127 MM |
| Mounting Bolt Hole Diameter | 0.604 IN |
| Mounting Bolt Hole Diameter | 15.35 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.52 IN |
| Outside Diameter | 318 MM |
| Overall Height | 1.85 IN |
| Overall Height | 47 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730872384 |
RAYBESTOS 780175 Cross References
| Brand | Part Number |
|---|---|
| 77416734, 747730872384 | |
| ADVANCE AUTO PARTS | YH145468, YH145468C, YH145468P |
| AUTOXTRA | AX53019 |
| AUTOZONE | 53019, 53019DG |
| BENDIX | 145468 |
| BOSCH | 16010223 |
| BRAKEBEST | 16010223, 780175, 780175FZN, 780175R, 780175RGS |
| BREMBO | 09.B661.10, 27351 |
| Bridgestone | 7009552 |
| CENTRIC | 120.63058, 121.63058, 126.63058CSL, 126.63058CSR, 126.63058SL, 126.63058SR, 127.63058L, 127.63058R, 128.63058CL, 128.63058CR, 128.63058L, 128.63058R, 227.63058L, 227.63058R, 320.63058, 320.63058F, 321.63058 |
| CHRYSLER | 04721234AA, 04721234AB, 4721234AA, 4721234AB |
| Casting Numbers | 204202696, 211573-DP, 326273 |
| Centric Parts | 120.63058, 121.63058, 126.63058CSL, 126.63058CSR, 126.63058SL, 126.63058SR, 127.63058L, 127.63058R, 128.63058CL, 128.63058CR, 128.63058L, 128.63058R, 227.63058L, 227.63058R, 320.63058, 320.63058F, 321.63058 |
| DURA CORP | BR53019, BR90231 |
| DuraGo | BR53019 |
| MAGMA PRODUCTS | PSR145172 |
| MIGHTY DISTRIBUTING SYSTEM | 53019 |
| NEOTEK | 107060GF |
| NEWTEK AUTOMOTIVE | 53019 |
| Newtek Automotive USA | 53019 |
| Omnicraft | QBRR28 |
| POWERSTOP | AR8758EVC |
| PROMAX | 14-53019 |
| PRONTO | BR53019 |
| QUALIS | 53019 |
| QUALITY BRAND | Q4160 |
| TRUSTAR | 491350 |
| UAP | 53019 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51532 |
| WABCO | PS126155 |
| WABCO - Archived | PS126155 |
| WAGNER | BD126155, BD126155E |
| WAGNER BRAKE | BD126155 |
| WINHERE | 6620321 |
| WORLDPAC | 1407-77192 |
| Wagner Brake | BD126155E |
RAYBESTOS 780175 Fits Vehicles
- Chrysler Pacifica (2004-2008)
