RAYBESTOS 980490 Part Description
Manufacturer
Product Description

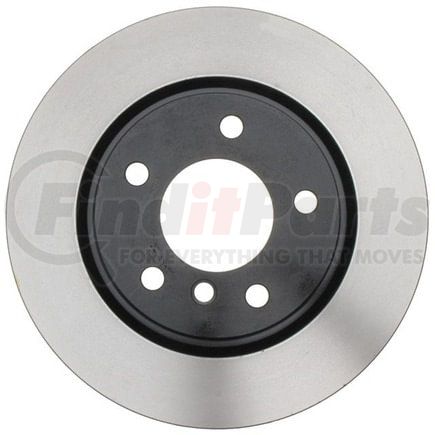

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2015-2007 BMW 328i Rear, 2011-2006 BMW 325i Rear, 2010-2008 BMW 323i Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980490 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Bearings Included | No |
| Center Hole Diameter | 2.953 IN |
| Center Hole Diameter | 75 MM |
| Construction | Full Cast |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.72 IN |
| Discard Thickness | 18.3 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.854 IN |
| Inside Diameter | 199.5 MM |
| Material | Cast Iron |
| Misc. Holes | 1 |
| Mounting Bolt Hole Circle Diameter | 4.72 IN |
| Mounting Bolt Hole Circle Diameter | 119.9 MM |
| Mounting Bolt Hole Diameter | 0.579 IN |
| Mounting Bolt Hole Diameter | 14.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.78 IN |
| Nominal Thickness | 19.8 MM |
| Outside Diameter | 11.811 IN |
| Outside Diameter | 300 MM |
| Overall Height | 2.598 IN |
| Overall Height | 66 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352629598 |
RAYBESTOS 980490 Cross References
| Brand | Part Number |
|---|---|
| 829352629598, 120.34078 | |
| ADVANCE AUTO PARTS | 25667, N1000425956ZIC, YH200361, YH200361C, YH200361P |
| ATE BRAKE PRODUCTS | 420195, SP20195 |
| AUTOXTRA | AX900662 |
| AUTOZONE | 45412, 45412DG |
| BENDIX | BPR5862, PRT5862 |
| BMW | 34216764651, 34216855007 |
| BRAKEBEST | 15010124, 980490, 980490FZN, 980490R, 980490RGS |
| BREMBO | 09.9793.11, 25667 |
| Brembo | 09.9793.1X, 09.9793.1S |
| CENTRIC | 120.34078, 121.34078, 125.34078, 125.34078CRY, 126.34078SR, 126.34078CSL, 126.34078CSR, 126.34078SL, 127.34078CL, 127.34078CR, 127.34078L, 127.34078R, 128.34078CL, 128.34078CR, 128.34078L, 128.34078R, 227.34078L, 227.34078R, 320.34078, 320.34078H, 321.34078 |
| Centric Parts | 121.34078, 125.34078, 125.34078CRY, 126.34078CSL, 126.34078CSR, 126.34078SL, 126.34078SR, 127.34078CL, 127.34078CR, 127.34078L, 127.34078R, 128.34078CL, 128.34078CR, 128.34078L, 128.34078R, 227.34078L, 227.34078R, 320.34078, 320.34078H, 120.34078, 321.34078 |
| DURA CORP | BR34315, BR90066202, BR900662 |
| DuraGo | 900662, BR900662 |
| Dynamic Friction Company | 604-31068 |
| MAGMA PRODUCTS | PSR123070 |
| NAPA BRAKES | TSR562 |
| NEOTEK | 1066501GF |
| NEWTEK AUTOMOTIVE | 34315 |
| Newtek Automotive USA | 34315 |
| PAGID | 355111282 |
| PAGID Racing | 355111282 |
| POWERSTOP | EBR1020EVC |
| PROMAX | 14-34315 |
| PRONTO | BR900662 |
| Qualis | 45412 |
| STANDARD ROTORS AND DRUMS | GP34315 |
| TRW | 4450, DF4160S, DF4450 |
| UAP | 34315 |
| VAICO | V2080057 |
| WABCO | PS126524 |
| WABCO - Archived | PS126524 |
| WAGNER | BD126524E, Z519 |
| WAGNER BRAKE | BD126524 |
| WINHERE | 6620214 |
| WORLDPAC | 1407-80423 |
| Wagner Brake | BD126524E |
RAYBESTOS 980490 Fits Vehicles
- BMW 323i (2006-2011)
- BMW 325i (2006-2011)
- BMW 328i (2007-2015)
