RAYBESTOS 980317 Part Description
Manufacturer
Product Description

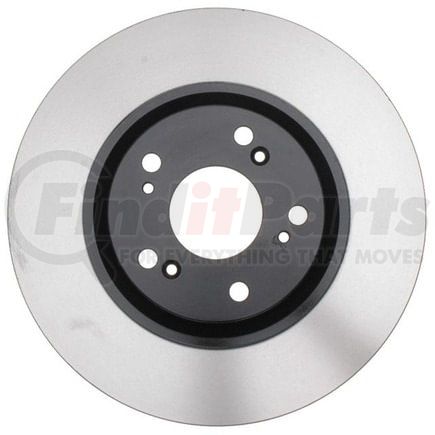

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2015-2006 Honda Civic Front, 2006-2005 Honda CR-V Front, 2015-2013 Acura ILX Front, 2010-2007 Acura CSX Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980317 Specifications
Product Attributes
| Center Hole Diameter | 2.52 IN |
| Center Hole Diameter | 64 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.906 IN |
| Discard Thickness | 23 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.984 IN |
| Nominal Thickness | 25 MM |
| Outside Diameter | 11.81 IN |
| Outside Diameter | 299.95 MM |
| Overall Height | 1.85 IN |
| Overall Height | 47 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352328354 |
RAYBESTOS 980317 Cross References
| Brand | Part Number |
|---|---|
| 8082-NP., 829352328354 | |
| ADVANCE AUTO PARTS | YH145557, YH145557C, YH145557P, YH145767 |
| ATE BRAKE PRODUCTS | 425173, 425182 |
| AUTOPARTSOURCE | 471220, 472750 |
| AUTOXTRA | AX901080 |
| AUTOZONE | 31381, 31381DG |
| BENDIX | PRT5767 |
| BOSCH | 26010770 |
| BRAKEBEST | 26010770, 980317, 980317FZN, 980317R, 980317RGS |
| BREMBO | 09.A407.10, 09.A407.11 |
| CENTRIC | 120.40057 |
| Casting Numbers | 211720-C, 326313 |
| Centric Parts | 120.40057, 121.40057, 125.40057 |
| DURA CORP | BR31381, BR901080 |
| DuraGo | BR901080 |
| Eurorotor | HO-585 |
| HONDA | 45251S9AE50, 45251SCAE50, 45251SVBA50, 45251TR7A00 |
| MAGMA PRODUCTS | PSR265095 |
| MIGHTY DISTRIBUTING SYSTEM | 31381 |
| MONROE BRAKES | BD126412 |
| NEOTEK | 106261GF, 106293GF |
| NEWTEK AUTOMOTIVE | 31381 |
| Newtek Automotive USA | 31381 |
| POWERSTOP | JBR991EVC |
| PROMAX | 14-31381 |
| PRONTO | BR901080 |
| QUALIS | 31381 |
| TopNotch | TN980317GEO |
| UAP | 31381 |
| Ultra Brake | HO-585 |
| WABCO | PS126351 |
| WABCO - Archived | PS126351 |
| WAGNER | BD126412E |
| WAGNER BRAKE | BD126351, BD126412, BD126412E |
| WINHERE | 6620607 |
| WORLDPAC | 1407-75237, 1427-530103 |
RAYBESTOS 980317 Fits Vehicles
- Acura CSX (2007-2010)
- Acura ILX (2013-2015)
- Honda CR-V (2005-2006)
- Honda Civic (2006-2015)
