(888) 312-8812 Login SignupRAYBESTOS 96341 Raybestos Specialty - Street Performance Brake Rotor
$10099
Limited availability at this price!
1 Day Lead Time
Get it by Thursday, Jul 23
RAYBESTOS 96341 Part Description
Manufacturer
Product Description

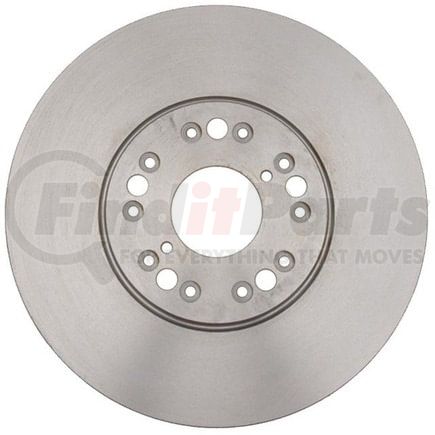

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2000-1992 Lexus SC400 Front, 2000-1999 Lexus SC300 Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96341 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.442 IN |
| Center Hole Diameter | 62.05 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.181 IN |
| Discard Thickness | 30 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.567 IN |
| Mounting Bolt Hole Diameter | 14.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.26 IN |
| Nominal Thickness | 32 MM |
| Outside Diameter | 11.65 IN |
| Outside Diameter | 295.9 MM |
| Overall Height | 2 IN |
| Overall Height | 50.8 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | JP |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999545343 |
RAYBESTOS 96341 Cross References
| Brand | Part Number |
|---|---|
| 22-18040, 30999545343 | |
| ADVANCE AUTO PARTS | YH141828, YH141947C, YH141947P |
| AUTOPART INTERNATIONAL | 52415 |
| AUTOSPECIALTY | JBR716, JBR716E |
| AUTOZONE | 31118, 31172, 31172DG |
| BECK/ARNLEY | 083-2553 |
| BENDIX | 141828 |
| BRAKE HEADQUARTERS | BR06253 |
| BRAKEBEST | 96341, 96341R, 96341RGS, 96473RGS |
| CALIFORNIA DRUM & ROTOR | 125220 |
| CENTRIC | 120.44083, 120.44083CRY, 121.44083, 125.44083, 125.44083CRY, 126.44083CSL, 126.44083CSR, 126.44083SL, 126.44083SR, 127.44083CL, 127.44083CR, 127.44083L, 127.44083R, 128.44083CL, 128.44083CR, 128.44083L, 128.44083R, 227.44083L, 227.44083R, 320.44083 |
| CENTURY | 9691 |
| Casting Numbers | 210776-C, 325389 |
| Centric Parts | 120.44083, 120.44083CRY, 121.44083, 125.44083, 125.44083CRY, 126.44083CSL, 126.44083CSR, 126.44083SL, 126.44083SR, 127.44083CL, 127.44083CR, 127.44083L, 127.44083R, 128.44083CL, 128.44083CR, 128.44083L, 128.44083R, 227.44083L, 227.44083R, 320.44083, 320.44083F |
| DELPHI | RB387 |
| DURA CORP | BR31118 |
| Dura Corp | BR31172 |
| DuraGo | BR31118, BR31172, BR901014 |
| EIS BRAKES | D17675 |
| EUROROTOR | TO687 |
| GIRLING | GR6103 |
| GREN | 23402 |
| MAGMA PRODUCTS | PSR563051 |
| MIDAS | BR1823 |
| MIGHTY DISTRIBUTING SYSTEM | 31118 |
| NEOTEK | 106370GF |
| NEWTEK AUTOMOTIVE | 31118 |
| Newtek Automotive USA | 31118 |
| PILENGA | V835 |
| POWERSTOP | JBR716EVC |
| PROMAX | 14-31118 |
| PRONTO | BR31172 |
| QUALIS | 31118 |
| QUALITEE INTERNATIONAL | 64-79-075 |
| QUALITY BRAND | 31118, Q115 |
| Qualis | 31172, 44700 |
| STANDARD ROTORS AND DRUMS | 31118 |
| THE UNIVERSAL GROUP | 128325 |
| TOYOTA | 4351224051, 4351224071 |
| TRUSTAR | 479075, R79075 |
| Universal | 128325 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50918 |
| WAGNER | BD125438 |
| WAGNER BRAKE | BD125220 |
| WINHERE | 442603, YH2603 |
| Winhere | 662251 |
RAYBESTOS 96341 Fits Vehicles
- Lexus SC430 (2002-2010)
- Lexus LS400 (1993-1994)
- Lexus IS300 (2001-2005)
- Lexus GS430 (2001-2005)
- Lexus GS400 (1998-2000)
- Lexus GS300 (1993-2005)
- Lexus SC400 (1992-2000)
- Lexus SC300 (1999-2000)
RAYBESTOS 96341 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 96341 Questions & Answers
No questions yet
Be the first to ask a question about this product!
