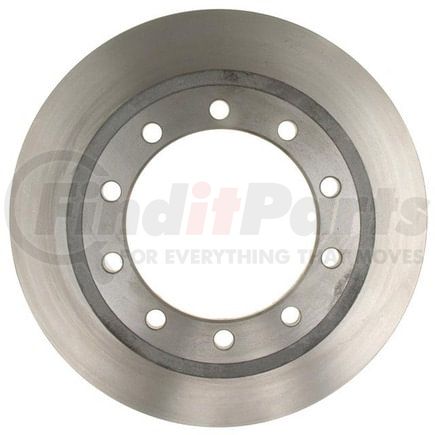

(888) 312-8812 Login SignupRAYBESTOS 8533R Raybestos R-Line Brake Rotor
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 8533R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
2002-1997 GMC C7500 Topkick Rear, 1996-1990 GMC C7000 Topkick Rear, 1996-1990 Chevrolet C70 Kodiak Rear, 2002-1997 Chevrolet C7500 Kodiak Rear, 1996-1990 GMC C6000 Topkick Rear, 2002-1997 GMC C6500 Topkick Rear, 1990 GMC C7000 Rear
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 8533R Specifications
Product Attributes
| Center Hole Diameter | 6.003 IN |
| Center Hole Diameter | 152.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.225 IN |
| Discard Thickness | 31.1 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 7.25 IN |
| Mounting Bolt Hole Circle Diameter | 184.15 MM |
| Mounting Bolt Hole Diameter | 7.25 IN |
| Mounting Bolt Hole Diameter | 184.15 MM |
| Mounting Bolt Hole Quantity | 10 |
| Nominal Thickness | 1.345 IN |
| Nominal Thickness | 34.15 MM |
| Outside Diameter | 14.75 IN |
| Outside Diameter | 374.65 MM |
| Overall Height | 3.81 IN |
| Overall Height | 96.75 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 10 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352465554 |
RAYBESTOS 8533R Cross References
| Brand | Part Number |
|---|---|
| ABD6-106, 829352465554 | |
| ACDELCO | 177-824 |
| ADVANCE AUTO PARTS | 141874, YH141874 |
| AMERICAN REMANUFACTURED | 89-52011 |
| AUTOSPECIALTY | AR9011, AR9011E |
| AUTOXTRA | AX5592 |
| BENDIX | 141874 |
| BRAKE HEADQUARTERS | BR55920 |
| BRAKEBEST | 8533, 8533R, 8533RGS, BD125339 |
| CALIFORNIA DRUM & ROTOR | 125339 |
| CENTRIC | 121.80011 |
| Casting Numbers | 210581-C, 23-123296, 325875 |
| DELPHI | RB743 |
| DURA CORP | BR5592 |
| EUCLID | E-9809 |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12585016 |
| GM | 15661543 |
| GREN | 664002 |
| General Motors | 15661543 |
| MERITOR | 23-123296-002 |
| MIGHTY DISTRIBUTING SYSTEM | 5592 |
| NEWTEK AUTOMOTIVE | 5592 |
| Newtek Automotive USA | 5592 |
| PEP BOYS | 5592G |
| QUALIS | 5592 |
| STANDARD ROTORS AND DRUMS | 5592 |
| THE UNIVERSAL GROUP | 101920 |
| UAP | 5592 |
| Universal | 101920 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50590 |
| WABCO | PS125339 |
| WABCO - Archived | PS125339 |
| WAGNER | BD125339 |
| WAGNER BRAKE | BD125339 |
| WEBB | 54106P |
RAYBESTOS 8533R Fits Vehicles
- GMC T7500 (1997-2002)
- GMC T6500 (1997-2002)
- Chevrolet T7500 (1997-2002)
- Chevrolet T6500 (1997-2002)
- GMC C6500 Topkick (1997-2002)
- GMC C7500 Topkick (1997-2002)
- Chevrolet C7500 Kodiak (1997-2002)
- Chevrolet C6500 Kodiak (1997-2002)
- GMC C7000 Topkick (1990-1996)
- GMC C7000 (1990)
- GMC C6000 Topkick (1990-1996)
- GMC C6000 (1990)
- Chevrolet C70 Kodiak (1990-1996)
- Chevrolet C70 (1990)
- Chevrolet C60 Kodiak (1990-1996)
- Chevrolet C60 (1990)
