RAYBESTOS 980578 Part Description
Manufacturer
Product Description

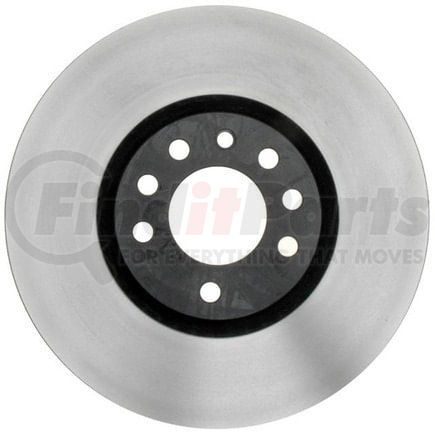

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2011-2003 Saab 9-3 Front, 2011-2010 Saab 9-3X Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980578 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.756 IN |
| Center Hole Diameter | 70 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.984 IN |
| Discard Thickness | 25 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.047 IN |
| Inside Diameter | 179 MM |
| Mounting Bolt Hole Circle Diameter | 4.331 IN |
| Mounting Bolt Hole Circle Diameter | 110 MM |
| Mounting Bolt Hole Diameter | 0.557 IN |
| Mounting Bolt Hole Diameter | 14.15 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.362 IN |
| Outside Diameter | 314 MM |
| Overall Height | 1.772 IN |
| Overall Height | 45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352675571 |
RAYBESTOS 980578 Cross References
| Brand | Part Number |
|---|---|
| 829352675571, 120.38020 | |
| ATE BRAKE PRODUCTS | SP00034, 428164 |
| AUTOZONE | 45404, 45404DG |
| BENDIX | PRT5600 |
| BRAKEBEST | 980578, 980578FZN, 980578R, 980578RGS |
| BREMBO | 09.9177.11, BFR135710 |
| CENTRIC | 120.38020, 121.38020, 125.38020, 125.38020CRY, 126.38020CSL, 126.38020CSR, 126.38020SL, 126.38020SR, 127.38020L, 127.38020R |
| Centric Parts | 120.38020, 121.38020, 125.38020, 125.38020CRY, 126.38020CSL, 126.38020CSR, 126.38020SL, 126.38020SR, 127.38020L, 127.38020R |
| DURA CORP | BR34291, BR901208 |
| DuraGo | BR901208 |
| Dynamic Friction Company | 604-65019 |
| NAPA BRAKES | SDK6396 |
| NEOTEK | 1067574GF |
| NEWTEK AUTOMOTIVE | 34291 |
| Newtek Automotive USA | 34291 |
| POWERSTOP | EBR687EVC |
| PROMAX | 14-34291 |
| PRONTO | BR901208 |
| Qualis | 45404 |
| SAAB | 93175606 |
| UAP | R38020 |
| Ultra Brake | SA-406 |
| WABCO | PS180156 |
| WABCO - Archived | PS180156 |
| WAGNER BRAKE | BD180155, BD180156 |
| WINHERE | 6620273 |
RAYBESTOS 980578 Fits Vehicles
- Peugeot 407 (2006-2008)
- Cadillac BLS (2007-2008)
- Saab 9-3X (2010-2011)
- Saab 9-3 (2003-2011)
